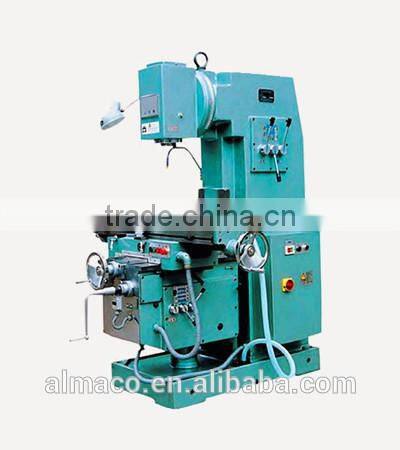

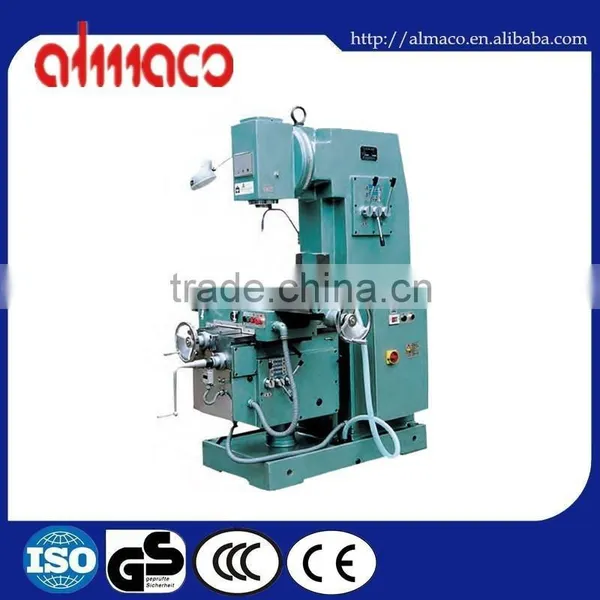

european qulity milling mahcine VM5030A
Standard Accessories
Sutter Arbor Φ22 Φ27mm 1set
End Milling Arbor No.2:No.3 1set
Medium Bushing Φ5 Φ14 1set
Collet Chuck 1set
Wrenches 1set
Anchor Bolts 1set
Oil Gun 1set
Optional Accessories
Universal Dividing Head 125mm 1set
Rotary Work Table Φ320 1set
Plain Vice 160mm 1set
End Milling Cutter Φ80 Φ100 Φ125 1set
Boring Tool holder Φ4-Φ160 1set
Levelling Block 6pcs
Blocking tool P621000 1set
european qulity milling mahcine VM5030A
european qulity milling mahcine VM5030A
| Machine Model | VM5025B | VM5030B | VM5030A | VM5030A/L |
| Table surface | 250 x 1100 mm | 300 x 1100 mm | 300 x 1150 mm | 300 x 1500 mm |
| Number of T-slots | 3 | 3 | ||
| Width of T-slots | 14mm | 17mm | ||
| Distance between T-slots | 63mm | 70mm | ||
| Max. longitudinal travel | 720mm | 680mm | 780mm | |
| Max. cross travel | 280mm | 235mm | ||
| Max. vertical travel | 410mm | 400mm | ||
| Spindle nose | Standard taper 7:24 ISO40 | Standard taper 7:24 No.40 | ||
| Number of spindle speeds | 12 steps | 12 steps | ||
| Range of spindle speeds | 35-1600rpm | 35-1600rpm | ||
| Number of feeds | 12 steps | 14 steps | ||
| Range of feed speeds Longitudinal, cross Vertical |
12-560mm/min 5-226mm/min |
12-720mm/min 4-240mm/min |
||
| Speed of rapid traverse Longitudinal, cross Vertical |
1780mm/min 720mm/min |
2100mm/min 700mm/min |
||
| Main drive motor | 3kw 1400rpm | 4kw 1400rpm | ||
| Feed motor | 0.75kw 1380rpm | 0.75kw 1380rpm | ||
| Coolant pump | 0.12kw 2500rpm | 40kw 2500rpm | ||
| Net weight of machine | 1550kg | 2200kg | ||
| Gross weight of machine | 1800kg | 3000kg | ||
| Overall dimensions (L x W x H) | 1670 x 1350 x 1800mm | 1740 x 1485 x 1870mm | ||
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
We are looking forward to bulding sincere and long-term business relationship with you
