Help Centerthe Best Sale and Low Price China Universal Milling Machine HUM24 of ALMACO Company
Related Products
-
the Best Sale and Low Cost Chinese Vertical Milling Machine BM7130 of ALMACO CompanyNegotiableMOQ: 1 Set -
the Best Sale and Low Cost Plano Milling Machine 4020HD of China of ALMACO CompanyNegotiableMOQ: 1 Set
-
the Best Sale and Low Cost Ram Type Universal Milling Machine URMD46 of China of ALMACO CompanyNegotiableMOQ: 1 Set
-
the Best Sale and Low Cost China Universal Milling Machine ML6126 of ALMACO CompanyNegotiableMOQ: 1 Set
-
the Best Sale and High Accurate China Milling Machine TM6330 of ALMACO CompanyNegotiableMOQ: 1 Set

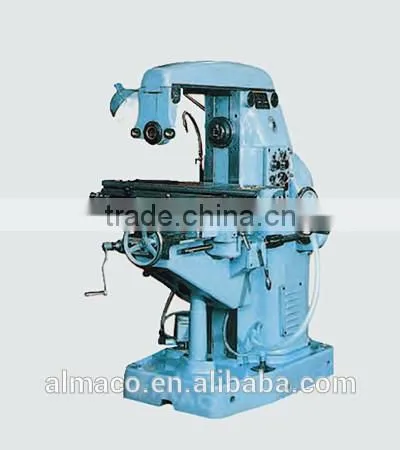

china universal milling machine HUM24
Multi functional milling machine
Automatic rapid feed X Y Z
Easy control
High speed milling head
vertical and horizontal
Standard Accessories
Milling arbors
Tools
Draw-bolts
Manuals
Optional Accessories Universal milling head
Rotary table
Machine vice
Milling chuck collets

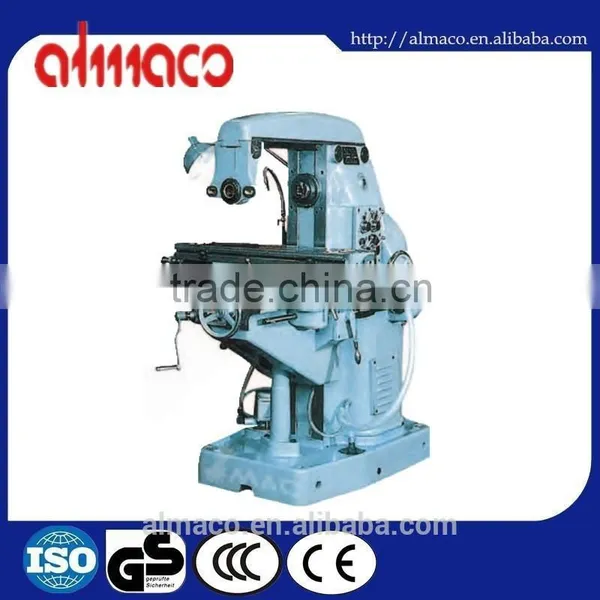

china universal milling machine HUM24
china universal milling machine HUM24
| Model | HUM30A | HUM30A/L | HUM24 | HUM25 | |
| Table size | mm | 300 x 1150 | 300 x 1500 | 240 x 810 | 250 x 900 |
| T slots (N x W x D) | mm | 3 x 18 x 70 | 3 x 18 x 70 | 3 x 14 x 54 | 3 x 14 x 54 |
| Longitudinal travel X | mm | 680 | 780 | 480 | 500 |
| Cross travel Y | mm | 235 | 235 | 165 | 165 |
| Vertical travel Z | mm | 400 | 400 | 300 | 300 |
| Max. rotary angle of table | ±45° | ±45° | |||
| Arbor diameter | mm | Ø22 Ø27 | Ø22 Ø27 | Ø22 Ø27 | Ø22 Ø27 |
| Min. distance between spindle center to talbe | mm | 60 | 60 | ||
| Spindle hole taper | MT4 7:24 | MT4 7:24 | MT3 or 30# 7:24 | MT3 or 30# 7:24 | |
| Spindle speed steps | 12 | 12 | 6 | 12 | |
| Spindle speed ranges | r/min | 35-1600 | 35-1600 | 31-570 | 32-1250 |
| Distance between spindle center to arm | mm | 160 | 160 | ||
| Feed speed steps | 14 | 14 | 6 | 6 | |
| Feed speed ranges: Longitudinal X | mm/min | 12-720 | 12-720 | 7.3-111.9 | 5.6-181 |
| Cross Y | mm/min | 12-720 | 12-720 | 14.9-226.3 | 11.3-146.2 |
| Vertical Z | mm/min | 4-240 | 4-240 | 6-90.4 | 4.5-146.2 |
| Main motor power | kw | 4 | 4 | 1.5 | 2/2.4 |
| Main motor speed | r/min | 440rpm | 440rpm | 1430 | 1430 |
| Cooling pump power | kw | 40w,2500rpm | 40w,2500rpm | 0.12 | 0.12 |
| Overall size | mm | 1690 x 1535 x 1630 | 1690 x 1535 x 1630 | 1400 x 1240 x 1478 | 1400 x 1330 x 1478 |
| Packing box size | mm | 1500 x 1340 x 1760 | 1500 x 1340 x 1760 | ||
| Net weight | Kg | 2100 | 2900 | 1200 | 1300 |
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
We are looking forward to bulding sincere and long-term business relationship with you
