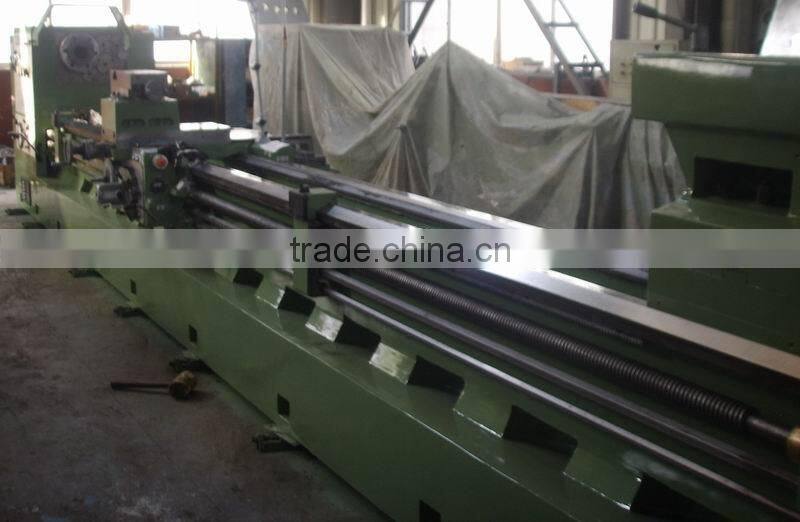

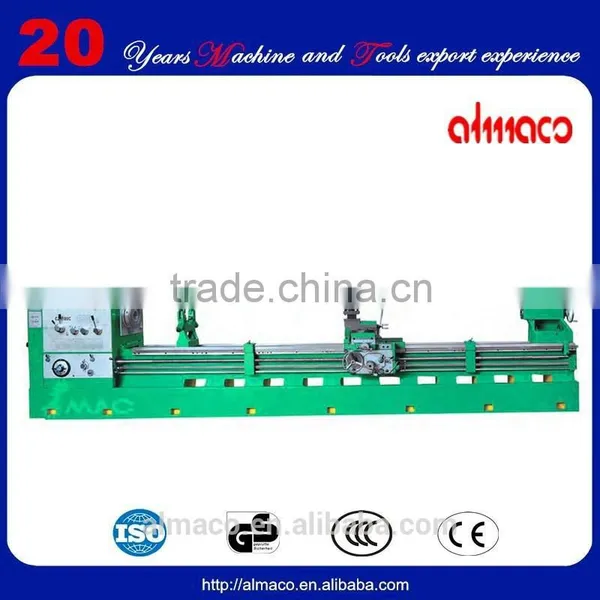

universal lathe machine LZ62100
1.Standard Accessories
2.3-jaw chuck 320mm
3.4-jaw chuck 400mm
4.Steady rest 20-135mm
5.Follower rest 20-135mm
6.Exchange gears
7.Wrenches
8.Optional Accessories
9.3-jaw chuck 400mm
10.4-jaw chuck 630mm
11.Face chuck 800mm or 1000mm
12.Steady rest 20-300mm
13.Follower rest 20-180mm
14.Taper attachment
15.Thread dial
16.Protection of leadscrew rod and feed rod
universal lathe machine LZ62100
universal lathe machine LZ62100
| Model | LZ6285 |
| Max.swing over bed | 850mm |
| Max.swing over cross slide | 520mm |
| Distance between centers | 750,1000,1500,2000,3000,4000mm |
| Max.swing over gap | 1050mm |
| Valid length of gap | 300mm |
| Bed width | 490mm |
| Spindle hole | 105mm |
| Spindle nose | C-11 or D-11 |
| Spindle taper | MT#100 |
| Spindle speeds(Number) | 14-750RPM or 18-900rpm(18 STEPS) |
| Metric threads range(Kinds) | 1-240mm(54kinds) |
| Inch threads range(kinds) | 28-1inch(36kinds) |
| Moudle threads range(kinds) | 0.5-60DP(45kinds) |
| Diametral threads range(kinds) | 30-1 t.p.i(27kinds) |
| Longtudinal feeds range(kinds) | 0.05-1.42mm/r(72kinds) |
| Cross feed range(kinds) | 0.015-7.6mm/r(72kinds) |
| Rapid feed:Long/Cross | 6/2m/min |
| Leadscrew size:Diameter/Pitch | T48mm/12mm |
| Cross slide travel | 400mm |
| Compound rest travel | 230mm |
| Size of tool shank | 30x30mm |
| Spindle diameter | Φ120mm |
| Spindle taper | mores 6# |
| Spindle travel | 205mm |
| Main drive motor | 11kw |
| Coolant pump motor | 0.09kw |
| Rapid feed motor | 0.18kw |
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
Our engineer team
*******************************************************************************************************
1.All of our goods will pass QUALITY INSPECTIONS before shipment.Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2.More than 5 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.
