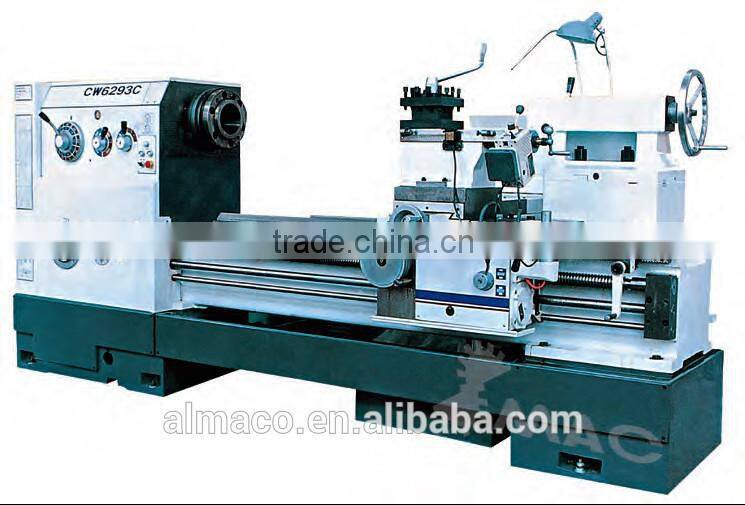

| best sale and well lathe |
Standard accessories:
1. 3-Jaw chuck
2. 4-jaw chuck
3. driving plate
4. faceplate
5. steady rest
6. follow rest
7. dead centers
8. maintenance kit
9. reducing sleeve
10. foundation bolts
Optional accessories:
1. bigger 3-jaw chuck
2. 4-jaw chuck
3. motorized tailstock
4. taper turning attachment
5. threading dial
6. living center
7. inch system feed
8. T-slot toolpost
9.spindle bore diameter 130mm
| best sale and well lathe |
| best sale and well lathe |
| Model | 12801 | 12802 | 12803 | 12804 | 12805 | 12806 | 12807 | 12808 | |||||
| Specification | Unit | CW62123C | CW62143C | CW62163C | CW62183C | CW6163C CW6263C | CW6173C CW6273C | CW6193C CW6293C | CW6193C CW6293C | ||||
| Swing over bed | mm | 1230 | 1430 | 1630 | 1830 | 630 | 730 | 830 | 930 | ||||
| Swing in gap | mm | 1400 | 1600 | 1800 | 2000 | 800 | 900 | 1000 | 1100 | ||||
| Swing over cross slide | mm | 900 | 1100 | 1200 | 1400 | 350 | 450 | 550 | 650 | ||||
| Distance between | centers | m | 1.5,2,3,4.5,6 | 0.75,1,1.5,2,3,4.5,6 | |||||||||
| Length in gap from faceplate | mm | 380 | 300 | ||||||||||
| spindle nose | C11 or D11 | C11or D11 | |||||||||||
| Spindle bore | mm | 105(130) | 105(130) | ||||||||||
| Spindle speeds | rpm/steps | 10-800/18 | 10-610/17 | 6-480/18 | 10-800/18 | ||||||||
| Cross slide travel | mm | 615 | 715 | 815 | 915 | 480 | |||||||
| Top rest travel | mm | 225 | 225 | ||||||||||
| Rapid traverse | mm/min | Axe Z:3200, Axe X:1900 | Axe Z:3200, Axe X:1900 | ||||||||||
| Quill diameter | mm | 120 | 90 | ||||||||||
| Quill travel | mm | 260 | 260 | ||||||||||
| Quill taper | MT6 | MT5 | |||||||||||
| Bed width | mm | 610 | 550 | ||||||||||
| Metric threads | mm/kinds | 1-240/53 | 1-240/53 | ||||||||||
| Inch threads | tpi/kinds | 30-2/31 | 30-2/31 | ||||||||||
| Module threads | mm/kinds | 0.25-60/47 | 0.25-60/46 | ||||||||||
| Diametral pitch threads | tpi/kinds | 60-1/2/47 | 60-0.5/46 | ||||||||||
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
Our engineer team
*******************************************************************************************************
1.All of our goods will pass QUALITY INSPECTIONS before shipment.Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2.More than 5 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.
