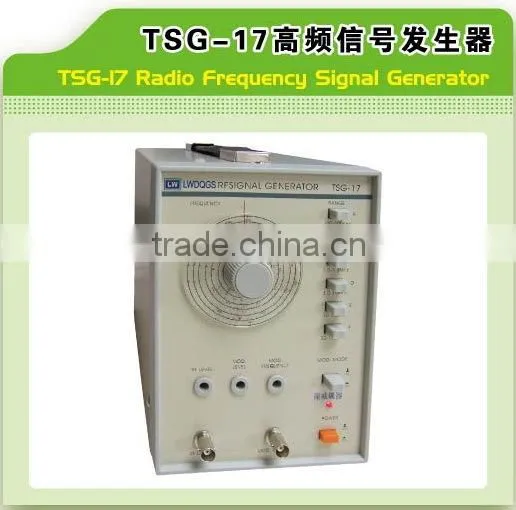

100KHz-150MHz Signal Generator

100KHz-150MHz Signal Generator thumbnail-1
100KHz-150MHz Signal Generator photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LW
Model Number:
TSG-17
Contact Supplier Request Quote Chat Now
Dongguan Longwei Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
YANTIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LW
Model Number TSG-17

Specifications

100KHz-150MHz RF signal generator
Complete technologies of Japanese electrical equipment
assembly with imported components

Features

     Complete technologies of Japanese electrical equipment and assembly with  imported components ensure minimum accuracy deviation.

     Signal frequency: 100 kHz to 150MHz, 3 harmonic up to 450MHz.

     Output wave form: sine and amplitude modulation wave.

     RF/AM output, max, intensity≥10VP-P.

     External modulation signal can be set between 50Hz to 20 KHz.

Specifications:

     Frequency ranges: A: 100 KHz to 300 KHz   B: 300 KHz to 1MHz

                                 C: 1MHz to 3.2MHz     D: 3MHz to 10MHz

                                 E: 10MHz to 35MHz    F: 32MHz to 150MHz

     Frequency range: 100 KHz to 150MHz (3 harmonic wave up to 450MHz)

     Frequency accuracy: Over±5%

     Output waveform: RF/AM signal waveform

     Output impedance: 600Ω

     Radio frequency output: Over 100Mv rms (when frequency ≤35MHz)

     Level control: 1mV to100mV

     External modulation: 150Hz to 1.5 KHz.  Amplitude from 0 to 30% adjustable.

     Normal operation: 50Hz to 20 KHz for any setting.

     Temperature/Humidity: 10 oC to 35 oC/with 85%RH

     Power supply: 220V/110V+/-10%, 50Hz/60Hz

     Dimensions: 239*140*200mm

     Weight: 2.5kg
