Signal Generator 0.1Hz-2MHz Digital Display ,function Generator,function Generator Price

Signal Generator 0.1Hz-2MHz Digital Display ,function Generator,function Generator Price thumbnail-1
Signal Generator 0.1Hz-2MHz Digital Display ,function Generator,function Generator Price photo-1
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LW
Model Number:
TAG-101D
Contact Supplier Request Quote Chat Now
Dongguan Longwei Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LW
Model Number TAG-101D

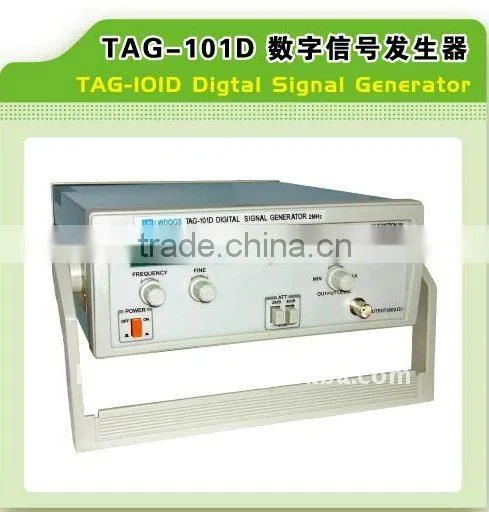

Name:Digital Signal Generator

Model:TAG-101D

Ø Characters

Strongly steady electro-circuit.

Digital display about frequency &operate conveniently.

Frequency range:6-phases from 0.2Hz-2MHz

Output for empty carry arrive at 5V,600Ω carried will be higher than 2V(sine wave).

Output voltage balance may be adjusted by 2 groups of attenuator every 20dB and 40dB, total 60dB or potentiometer in continuity.

Sine wave of square wave may be chosen to output.

Ø Electric appliance nature

Ø Frequency range

   X1 shift: 0.2Hz-20Hz

   X10 shift: 2Hz-200Hz

   X100 shift: 20Hz-2KHz

   X1K shift: 200Hz-20KHz

   X10K shift: 2KHz-200KHz

   X100K shift: 20KHz-2MHz

Ø Sine wave nature

Output voltage: 5V

Distortion ratio: <0.1%  400Hz-200KHz

               <0.5%  50Hz-500KHz

Evenness output:±1.5 decibels (about equal to 1KHz)

Ø Square wave nature

   Output voltage: > 10V (highest point)

   Rising time: <0.25 microseconds (within 200KHz)

   Empty occupied ratio: 50%±5% (from 1KHz to 200KHz

Ø The nature of output pole

   Output impedance :600Ω±10%

   Attenuator:-20dB,-40dB and in 60dB series

Ø Power wastage

   Input voltage: Alternating current 110V or 220V for choice

   Power wastage: about 10 watts

Ø The size of the outer shell

   270mm*225mm*90mm
