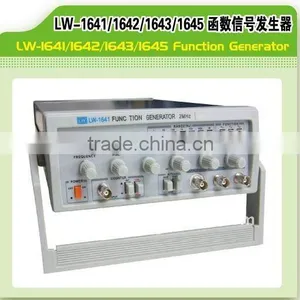

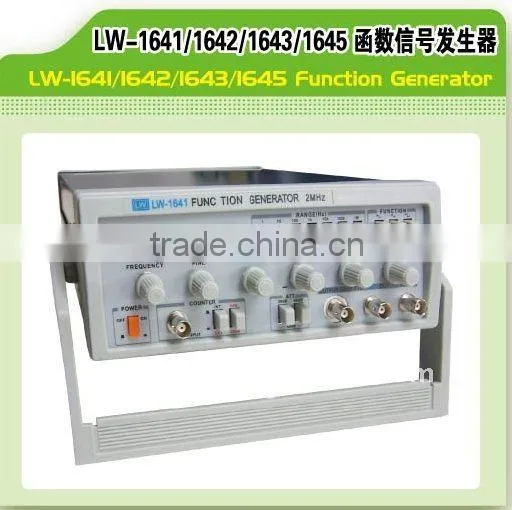

Help Center5MHz Function Generator
Related Products
Specifications
0.1Hz-5MHz function generatorOutput waveform: Sine, Triangle, Square, Ramp, Pulse
Features: function generator
1. Frequency of the mode: 0.1Hz---2MHz/ 5MHz/ 10MHz
2. Output waveform: Sine, Triangle, Square, ±Ramp, ±Pulse
3. TTL/CMOS and OUTPUT synchronous output
4. Less than 1% distortion at 10Hz-- 100 KHz
5. Less than 0.5dB frequency response at 0.1Hz--- 100 KHz
6. 1Hz---30MHz frequency counter
Specifications:
1. Frequency: LW1641: 0.1Hz--2MHz, LW-1642: 0.1Hz--5MHz, LW-1643: 0.1Hz--10MHz
2. Output waveform: Sine, Triangle, Square, Positive and Negative Pulse, saw tooth wave
3. Output Impedance: 50Ω±10%
4. Amplitude: Not less than 20V p--p (open circuit)
5. DC Voltage: 0--±10V continuously adjustable
6. Symmetry Range: 90:10--10:90
7. Rising Edge of Square: LW-1641: less than 100ns, LW-1642: less than 50ns,
LW1643: less than 50ns,
Sine Characteristic
1. Distortion: Less than 1% at 10Hz--10 KHz
2. Frequency Response: 0.1Hz--100MHz: Less than ±0.5dB 100KHz--2MHz (LW-1641): Less than±1dB
TTL/COMS Output
1. Level: TTL low level less than 0.4V in pulse wave, high level less than 3.5V,CMOS low less tan 0.5V in pulse wave, high level 5V--14V continuously variable.
2. Rising Time: less than 100ns
VCF Input
1. Output Voltage:-5V---0V±10
2. Max.volt-cotrolled: 1000:1
3. Input Signal: DC-1KHz
Frequency counter:
1. Measuring Range: 1Hz--10MHz≥10Vp-p
2. Input Impedance: Not less than1MΩ/20F
3. Sensitivity: 100mVrms
4. Max.Input:150V (AC+DC)
5. Input Attenuation: 20dB
6. Accuracy: Less than 0.0003%±1digit
7. Line power: 220V/110V±10%, 50Hz/60Hz
8. Dimension: 270*225*90mm
9. Weight: about 2.5kg
