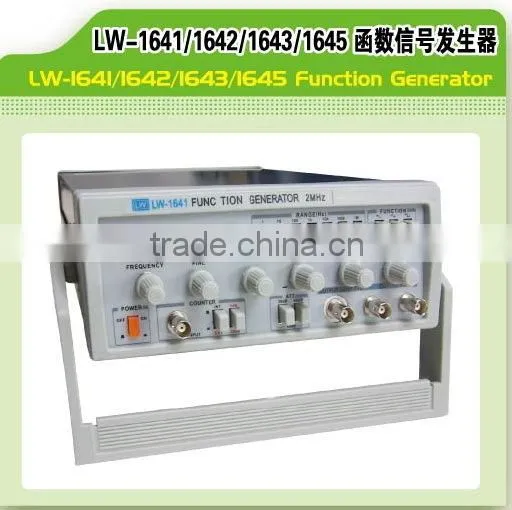

1645 15MHz signal generator, function generator,digital signal generator,waveform generator
- 1000 Piece / Pieces per Month
- shenzhen
- Credit Card
- Sand Water Filter/Water treatment plants
- Automatic Doypack Seal Machine (insert and sealing machine)
- IPX3/IPX4 Hand-held Water Spray Nozzle Test Device IEC 60529
- IPX5,IPX6 Jet Nozzle of IEC 60529, Brass material
- Adjustable and multifunctional Spring Impact Hammer IK01-IK07 Level Tester
- Test probe 43 IEC 61032-Probe 43-Figure 17 Jusdtest
Product Details
Place of Origin: | Guangdong, China | Brand Name: | LONGWEI | Model Number: | LW-1645 |
Product Description
Specifications
Output waveform: Sine, Triangle, Square, ramp.high speed.
Specifications
1.A variety of output waveform
2.frequency response 0.1Hz-100KHz,less than 0.5dB
3.Appearance beautiful, affordable
Features:
Frequency of the mode: 0.1Hz---2MHz/ 5MHz/ 10MHz/15MHz
Output waveform: Sine, Triangle, Square, ramp ±Pulse
TTL/CMOS and OUTPUT synchronous output
Less than 1% distortion at 10Hz-- 100 KHz
Less than 0.5dB frequency response at 0.1Hz--- 100 KHz
1Hz---30MHz frequency counter
specifications | LW1641 | LW1642 | LW1643 | LW1645 |
Frequency | 0.1Hz-2MHz | 0.1Hz-5MHz | 0.1Hz-10MHz | 0.1Hz-15MHz |
Output waveforms | Sine, triangle,square, positive and negative pulse, positive and negative ramp | |||
Output impedance | 50ohm±10% | |||
amplitude | Not less than 50Vp-p (open circuit) | |||
DC voltage | 0~±10V continuously adjustable | |||
Symmetry range | 90:10--10:90 | |||
Rising edge of square | Less than 100ns | Less than 50ns | Less than 35ns | Less than 35ns |
Sine characteristic | ||||
distortion | Less than 1% at 10H-100KHz | |||
Frequency response | 0.1Hz~100MHz: ≤± 0.5dB 100 KHz-5MHz ≤±1dB (LW-1642) 100KHz~2MHz: ≤±1dB (LW1641) | |||
TTL/CMOS output | ||||
Level | Level: TTL low level less than 0.4V in pulse wave, high level less than 3.5V,CMOS low less tan 0.5V in pulse wave, high level 5V--14V continuously variable. | |||
Rising time | Less than 100ns | |||
VCF input | ||||
Output voltage | -5V~0V±10 | |||
Max.volt-controlled | 1000:1 | |||
Input signal | DC-1KHz | |||
Frequency counter |
| |||
Measuring range | 1Hz~10MHz≥10Vp-p | |||
Input impedance | Not less than 1Mohm/20F | |||
Sensitivity | 100mVrms | |||
Max. Input | 150V(AC+DC) | |||
Input attenuation | 20dB | |||
Accuracy Line power | Less than 0.003%±1 digit 220V/110V±10% 50Hz/60Hz | |||
Dimension | 270*225*90mm | |||
weight | N.W. About 2.5Kg |
