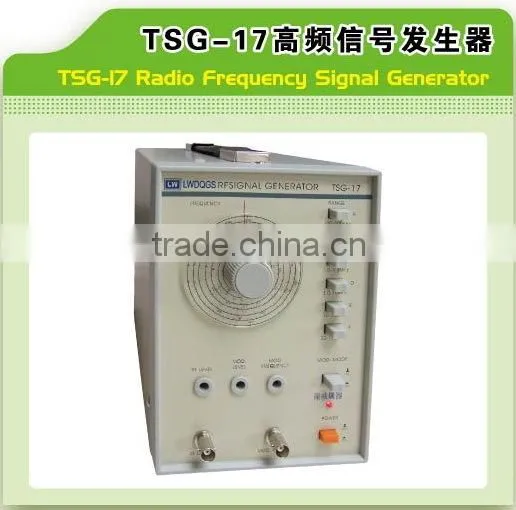

Help Center100 KHz- 150 MHz RF Signal Generator in Competitive Price and in High Quality
Related Products
-
1642 5MHz Signal Generator, Function Generator,digital Signal Generator,waveform GeneratorNegotiableMOQ: 1 Piece -
10 MHZ High Precision Function Signal Generator in Competitive PriceNegotiableMOQ: 1 Piece
-
1645 15MHz Signal Generator, Function Generator,digital Signal Generator,waveform GeneratorNegotiableMOQ: 1 Piece
-
LW-1642 Function Generator,digital Function Generator,3MHz Function GeneratorNegotiableMOQ: 1 Piece
-
LW-1641 Function Generator,digital Function Generator,3MHz Function GeneratorNegotiableMOQ: 500 Pieces
Specifications
Complete technologies of Japanese electrical equipment and assembly with imported components ensure minimum accuracy deviation.Signal frequency: 100 kHz to 150MHz, 3 harmonic up to 450MHz.
Output wave form: sine and amplitude modulation wave.
RF/AM output, max, intensity≥10VP-P.
External modulation signal can be set between 50Hz to 20 KHz.
Specifications:
Frequency ranges: A: 100 KHz to 300 KHz B: 300 KHz to 1MHz
C: 1MHz to 3.2MHz D: 3MHz to 10MHz
E: 10MHz to 35MHz F: 32MHz to 150MHz
Frequency range: 100 KHz to 150MHz (3 harmonic wave up to 450MHz)
Frequency accuracy: Over±5%
Output waveform: RF/AM signal waveform
Output impedance: 600Ω
Radio frequency output: Over 100Mv rms (when frequency ≤35MHz)
Level control: 1mV to100mV
External modulation: 150Hz to 1.5 KHz. Amplitude from 0 to 30% adjustable.
Normal operation: 50Hz to 20 KHz for any setting.
Temperature/Humidity: 10 oC to 35 oC/with 85%RH
Power supply: 220V/110V+/-10%, 50Hz/60Hz
Dimensions: 239*140*200mm
Weight: about 2.5kg
