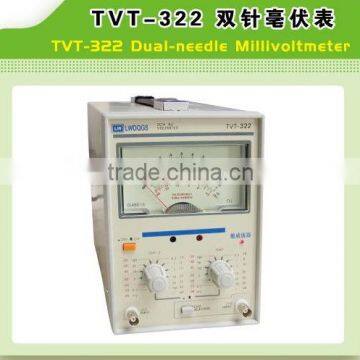

Double Pointer Millvoltmeter With High Quality,Independent Operation

Name: Double Pointer Millvoltmeter With High Quality,Independent Operation
Brand: LONGWEI
SKU: 115152425
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

LONGWEI

Model Number:

TVT-322

Dongguan Longwei Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name LONGWEI

Model Number TVT-322

Specifications

Advanced circuit design are imported device installed, to ensure the accuracy of minimal deviation

Features:

1.100µV~400V measuring voltage

2.10Hz~2MHz measuring frequency, max up to 5MHz

3.Auto and manual mode of measuring

4.Measuring ranges: mV/V/dBm

5.CH1 and CH2 selectable

6.Power supply: AC 220V (110V optional)

Specifications	TVT-322D Digital Millivoltmeter
Measuring range	Voltage:30µV-300V dB:-79dB to +50dB dBm:-77 to +52dBm (0dB=1mV, 600)
Frequency range	5Hz-2MHz
Voltage error	5Hz~2MHz:±4%±8digit 50Hz~100KHz::±2.5%±10digit 50Hz~100KHz::±1.5%±20digit Readout at 1KHz as a reference
dB Error	Voltage error±1digit
dBm error	Voltage error±1digit
Input impedance	100Mohm±10%,30pF
resolution	1µV
Noise	Less than 15 digit(30mV~300V)
Ambient	10°C~40°C 85% RH
Power supply	220V/110V±10% 50Hz/60Hz
Dimension	27022590mm
weight	About 3Kg
