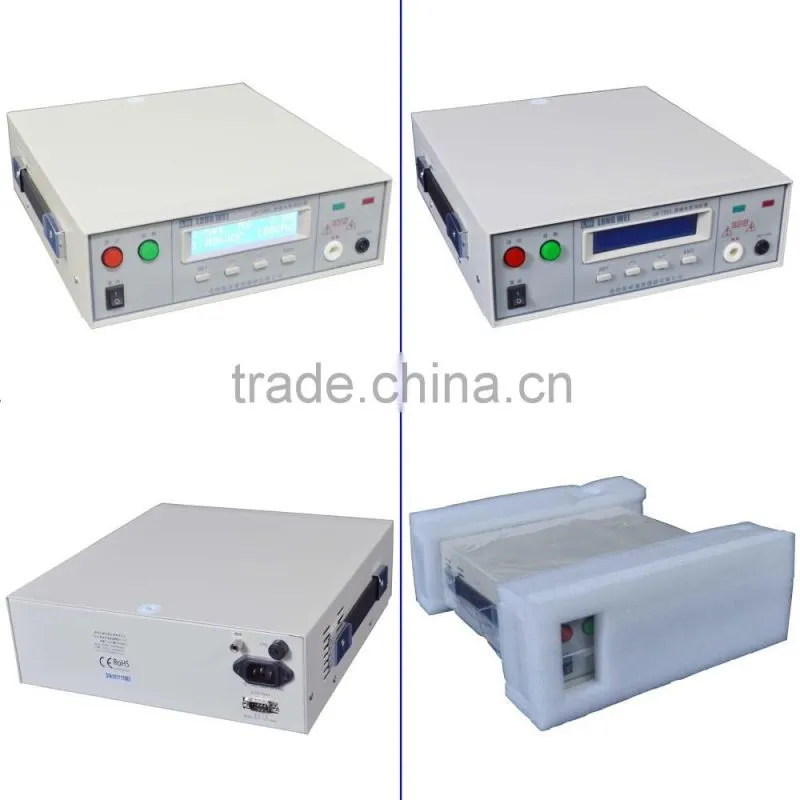

Name:Insulation Resistance Tester
Model:LW7201/LW7205
Ø Features:
*Small size ,light weight
*Provide50V~1000Vdc and 0.1MΩ~50GΩ application range
*Provide 10groups memory setting
*LCD display,test status, the be clear at a glance
*High stable dc voltage output,resistance on the lower limit set, only the police
*Provide remote PCLS control interface
Ø Specification:
*Output voltage:50-100
*Voltage precision:±(1% of setting +1 counts)From no load to full load
*Voltage ripple:<2%
*Resistance Setting Range:LW7201:0.1~999.9mΩ,1000~9999mΩ;LW7205:1~9999mΩ,10.0~50GΩ
*The resistance of resolution:LW7201:0.1mΩ~1mΩ;LW7205:1mΩ~0.1GΩ
*Delay time:1~999.9 s
*Test time:0,0.1~999.9s(0 is continuously)
*Resistance measurement accuracy:0.1~999.9mΩ,±(2% of reading +2counts);1GΩ
~10GΩ,±(5% of reading +2counts)
Other specifications:
*Memory group:10groups memory
*Peripheral remote control, PLC interface:provide Pass,Fail,Processing Remote *monitoring signal and TEST. STOP contact
*Security protection:Short circuit automatically cut off the output, buzzer alarm
*Display:LCD display
*Size:280mm(W)x89mm(H)x280mm(D)
