Condition New
Type Surface Grinding Machine
CNC or Not Normal
Max. Grinding Diameter 200mm
Max. Grinding Length 600mm
Place of Origin Jiangsu, China
Brand Name ALMACO
Model Number M200
Voltage 380V
Power(W) 1100W
Dimension(L*W*H) 250*25*31.75mm
Weight 1700kg
Certification CE;ISO9000
After-sales Service Provided Engineers available to service machinery overseas



Product Description

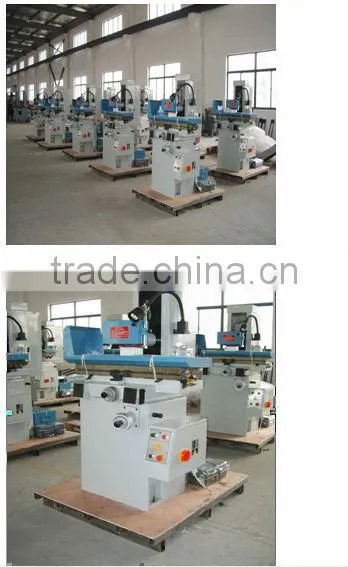

  Hydraulic Surface Grinding Machine(M200)


Standard equipment:

TOOL BOXALMACO Hydraulic Surface Grinding Machine(M200)

ALMACO Hydraulic Surface Grinding Machine(M200)

ALMACO Hydraulic Surface Grinding Machine(M200)

    13915 13916 13917 13917
Model   M400 M300 M250 M200
Longitudinal travel mm 800 660 510 650
cross traverse mm 350 370 270 240
distance betweem table&spindle center mm 400 450 450 450
working surface mm 775x325 600x300 500x250 600x200
table speed up to 15m/min m/min 7-25 5-25 5-25 5-25
l.c. of cross feed hand wheel 10µ µ 20 20 20 20
 l.c. of vertical feed hand wheel 2µ µ 5 5 5 5
auto cross feed at each table reversal mm/stroke 0.25-6 0.25-6 0.25-6 0.25-4
grinding head
size of wheel mm 250x250x76.2 250x25x31.75 200x20x31.75 250x25x31.75
spindle power hp 5 3 4 3
grinding spindle speed rpm 2850 2850 2850 2850
hydraulic preesure motor hp 2 2 2 2
oversall size mm 235x185x190 216x165x190 195x150x190 213x150x190
weight kg 2600 2100 1800 1700







Packaging & Shipping

 ALMACO Hydraulic Surface Grinding Machine(M200)





Our Services



We have a first-class after-sales service team and the specialized technical personnel is installation,commissioning and training.ALMACO Hydraulic Surface Grinding Machine(M200)



Company Information



Found in 1984 Our Almaco Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 40 or more countries & areas.
         Almaco Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competi-tive prices and quick & thoughtful after-sale service to cooperate with you.
