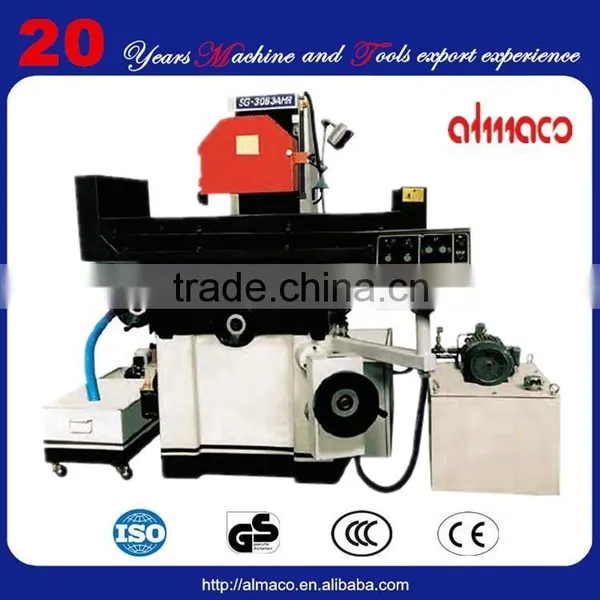

ALMACO Saddle Moving Horizontal Shaft &Rectangular Table Surface Grinder(SG-40100AH-40100AHR/AHD)

ALMACO Saddle Moving Horizontal Shaft &Rectangular Table Surface Grinder(SG-40100AH-40100AHR/AHD) thumbnail-1
ALMACO Saddle Moving Horizontal Shaft &Rectangular Table Surface Grinder(SG-40100AH-40100AHR/AHD) photo-1
US$ 3,000 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Surface Grinding Machine
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Almaco Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai china port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Surface Grinding Machine
CNC or Not Normal
Max. Grinding Diameter 406mm
Max. Grinding Length 1020mm
Place of Origin Jiangsu, China
Brand Name ALMACO
Model Number SG-40100AH-40100AHR/AHD
Voltage 380V
Power(W) 9000w
Dimension(L*W*H) 295*227*220mm
Weight 4300kg
Certification CE;ISO9000
After-sales Service Provided Engineers available to service machinery overseas



Product Description

  Saddle Moving Horizontal Shaft &Rectangular Table Surface Grinder(SG-40100AH-40100AHR/AHD)

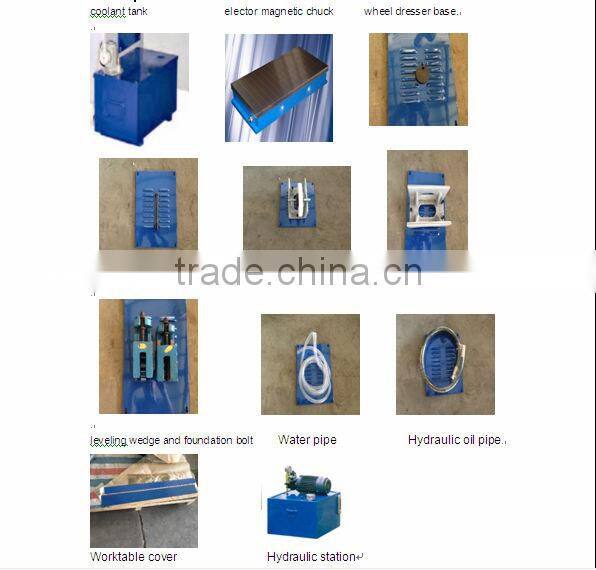

Standard equipment:

Coolant tank;Elector magnetic chuck;Wheel dresser base;Flange and wheel extractor;Standard wheel;Balance arbor;Working lamp;Leveling wedge and foundation bolt;Normal elector magnetic chuck controller;PLC auto grinding controller(only for AHD model)

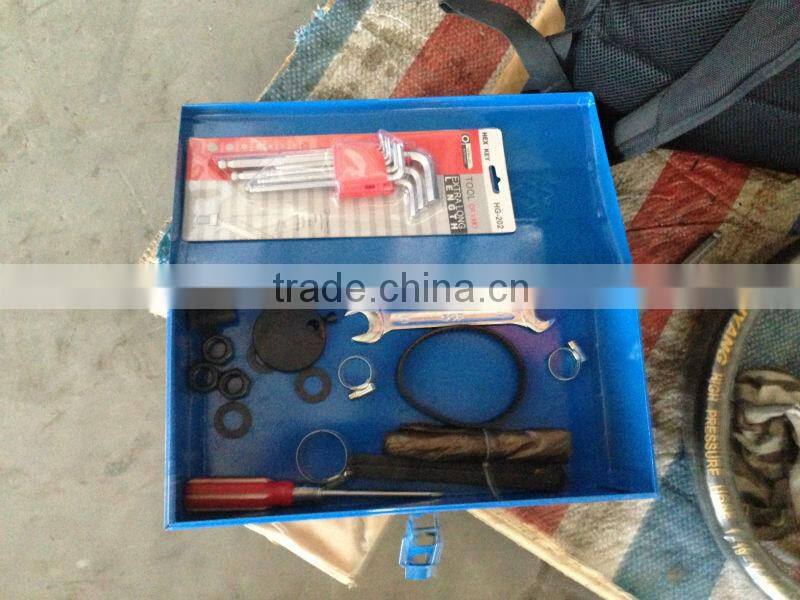

TOOL BOXALMACO Saddle Moving Horizontal Shaft &Rectangular Table Surface Grinder(SG-40100AH-40100AHR/AHD)

ALMACO Saddle Moving Horizontal Shaft &Rectangular Table Surface Grinder(SG-40100AH-40100AHR/AHD)

Optional equipment:

Balancing stand;Manual paraller wheel dresser;Coolant tank with magnetic separator;Coolant tank with paper filter;Coolant tank with paper filter and magnetic separator;Dust collector;Luxurious elector ,magnetic chuck controller

Notice:

1.H mean:hydraulic transmission on longitudinal,manual on transverse and vertical

2.AH mean:auto feed on transverse,hydraulic transmission on longitudinal,manual on overtical.

3.AHR mean:auto feed on transverse,hydraulic transmission on longitudinal,rapid movement on vertical.

4.AHD mean:auto feed on transverse,hydraulic transmission on longitudinal,auto feed on vertical.

ALMACO Saddle Moving Horizontal Shaft &Rectangular Table Surface Grinder(SG-40100AH-40100AHR/AHD)

Model Unit SG-40100AH
SG-40100AHR
SG-40100AHD
Table size(WXL) mm 406*1020
Table size(XxY) mm 1130*450
Max.distance from spindle center to table mm 580
Magnetic chuck size mm 400*1000
Speed of table longitudinal movenment m/min 7-23
transverse movement Auto feed mm/min 0.1-8
Rapid speed m/min 990
Feed of handwheel mm/div. 0.02
Wheelhead vertical movement Auto feed mm (AH/AHR model)/0.05/0.01/0.02/0.03/0.04/0.05(onlyAHD model)
Rapid speed mm/min (AH model)/460(AHE/AHD model)
Feed of handwheel mm/div. 0.05
Grinding wheel Speed rpm 2850(50HZ)     3450(60HZ)
size(ODxWxID) mm 200*20*31.75
spindle motor kw 2.2
Hydraulic motor kw 0.75
Cooling pump motor kw 0.04
Elevating motor kw (AH/AHR model)/0.25(AHR model)/0.05(AHD model,servo motor)
Cross feed motor kw 0.04
Max.loading capacity of table(include chuck) kg 600
Total rated power kw 9
Height of machine mm 1890
Floor space(LXW) mm 4400*2400
Gross weight kg 4300
Package dimensions(LxWxH) cm

295*227*220

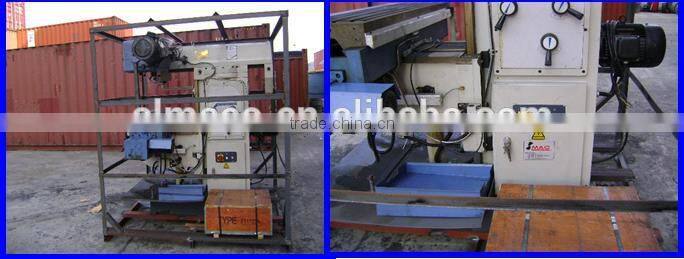

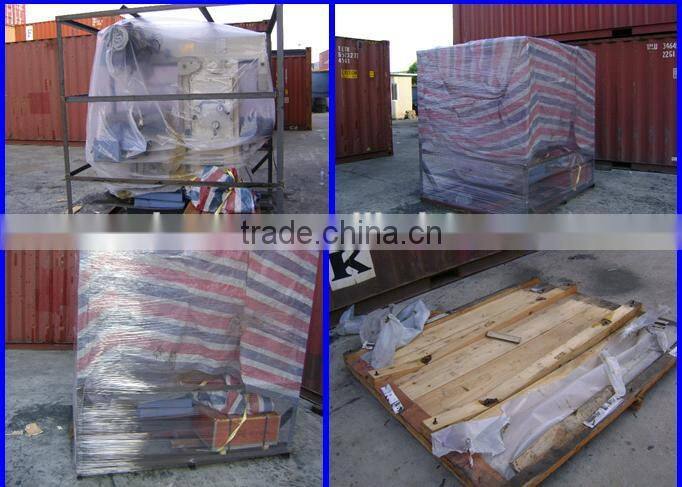

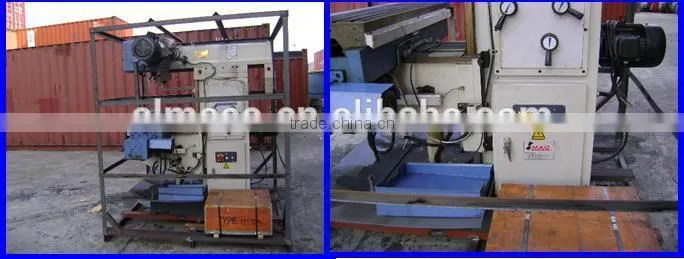

Packaging & Shipping



 ALMACO Saddle Moving Horizontal Shaft &Rectangular Table Surface Grinder(SG-40100AH-40100AHR/AHD)ALMACO Saddle Moving Horizontal Shaft &Rectangular Table Surface Grinder(SG-40100AH-40100AHR/AHD)



Our Services



We have a first-class after-sales service team and the specialized technical personnel is installation,commissioning and training.ALMACO Saddle Moving Horizontal Shaft &Rectangular Table Surface Grinder(SG-40100AH-40100AHR/AHD)

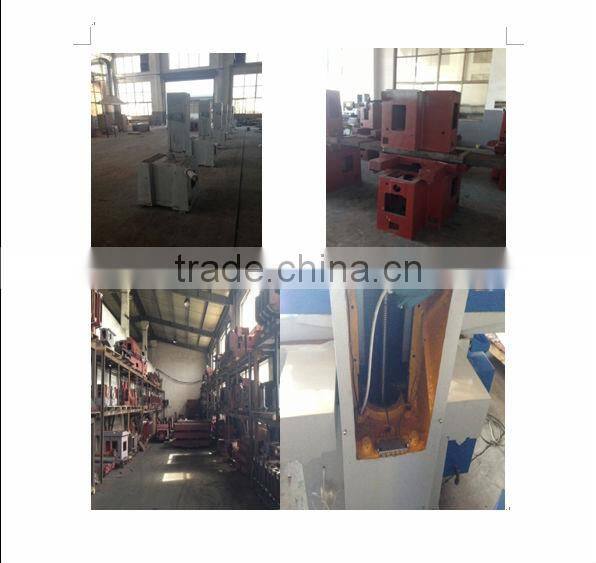

Company Information



Found in 1984 Our Almaco Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 40 or more countries & areas.
         Almaco Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competi-tive prices and quick & thoughtful after-sale service to cooperate with you.





 ALMACO Saddle Moving Horizontal Shaft &Rectangular Table Surface Grinder(SG-40100AH-40100AHR/AHD)ALMACO Saddle Moving Horizontal Shaft &Rectangular Table Surface Grinder(SG-40100AH-40100AHR/AHD)
