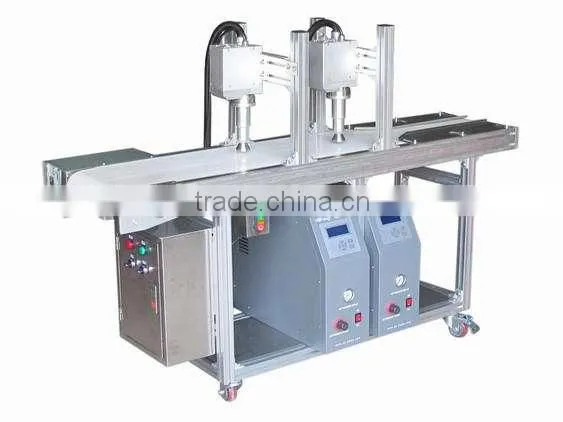

automatic plasma treating euqipment

wooden case

Specifications

suit for various of mobile phone screen and other accessories.

model	input voltage/frequency	woring frequency	output power	treating width	air source
FR50BR	AC220/230V±10% 50/60Hz	22.5KHz	300-600W	30-50mm(rotate)	0.4Mpa no water

 features



Adopt intelligent industrial control chip control processing, the plasma output power can be precisely regulated and setting

Set power can be remembered until the next start(not affected power failures)

  Power would be smart after the creation of precise lock, without an external voltage fluctuations and working conditions of influence, thus the treatment effect of plasma stability, and also reduced the passive manual intervention

LCD display function:

Set power

The actual dynamic power display

Power of state data shows: Frequency, medium voltage current, real-time power supply voltage and so on...

  Machine warning display

On-line ready to OK the external signal input. External equipment to confirm the site is ready, the machine can only start the working

Note: This signal can be directly shorted wiring end, as the feature by default

In addition to this machine from the panel buttons take the initiative to do "Start" and "suspension" of the active control mode, the machine also has an external control input of the passive control mode



External control input terminals (local special allocations) access, that is automatically "external" control of the passive control mode

 External control input terminals (local special allocations) is not access, that is automatically set to host panel control of active control mode

The machine has many types of automatic monitoring and warning capabilities

 The working temperature over warning

Air pressure warning

Machine working over-current protection warning

Supply Voltage under-voltage (less than 198Vac) warning

Supply Voltage over-voltage (more than 253Vac) warning



External device is not ready for warning

The internal pressure beyond the warning

Internal high-pressure low warning

Instability within the high-pressure warning

The machine can according the surface treatment request ,Pressure on the plasma jet continuously adjustable

The machine can according the customer surface treatment function request , equipped with a variety of plasma injection nozzle

The interior design of this machine with a variety of interfaces be reserved, you can according to customer requirements,

combined with the actual production line of on-line installation of a variety of automatic control functions

Note: must be according to customer specific request

One unit can combine many plasma generators and match more nozzles, according to customer's requirements
