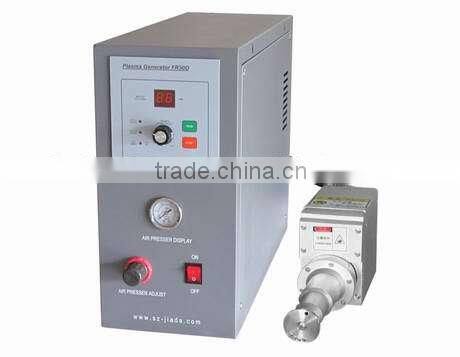

Help CenterTotate Head Plasma Treatment Machine
Related Products
-
Shenzhen Plasma Corona Sutface Treatment for High Speed Printing and AsemblyUS$ 2,500 - 8,000MOQ: 1 Set -
HeFeng Air Plasma With Robots on ProductionlineUS$ 16,000 - 17,600MOQ: 1 Set
-
Conveyor Belt Plasma Surface Tretament Treater With 2 HeadsUS$ 2,500 - 8,000MOQ: 1 Set
-
HeFeng Low Temperature Plasma Can Match More NozzlesUS$ 2,500 - 8,000MOQ: 1 Set
-
FR50D Plasma Jets for Edgr Bonding ProcessUS$ 7,500 - 8,000MOQ: 1 Set
Specifications
suit for various of mobile phone screen and other accessoriesFR50DR corona treatment
| model | input voltage/frequency | woring frequency | output power | treating width | air source |
| FR50DR | AC220/230V±10% 50/60Hz | 18-25KHz | 600-1200W | 30-50mm(rotate) | 0.4Mpa no water |
features
Adopt intelligent industrial control chip control processing, the plasma output power can be precisely regulated and setting
Set power can be remembered until the next start(not affected power failures)
Power would be smart after the creation of precise lock, without an external voltage fluctuations and working conditions of influence, thus the treatment effect of plasma stability, and also reduced the passive manual intervention
LCD display function:
Set power
The actual dynamic power display
Power of state data shows: Frequency, medium voltage current, real-time power supply voltage and so on...
Machine warning display
On-line ready to OK the external signal input. External equipment to confirm the site is ready, the machine can only start the working
Note: This signal can be directly shorted wiring end, as the feature by default
In addition to this machine from the panel buttons take the initiative to do "Start" and "suspension" of the active control mode, the machine also has an external control input of the passive control mode
External control input terminals (local special allocations) access, that is automatically "external" control of the passive control mode
External control input terminals (local special allocations) is not access, that is automatically set to host panel control of active control mode
The machine has many types of automatic monitoring and warning capabilities
The working temperature over warning
Air pressure warning
Machine working over-current protection warning
Supply Voltage under-voltage (less than 198Vac) warning
Supply Voltage over-voltage (more than 253Vac) warning
External device is not ready for warning
The internal pressure beyond the warning
Internal high-pressure low warning
Instability within the high-pressure warning
The machine can according the surface treatment request ,Pressure on the plasma jet continuously adjustable
The machine can according the customer surface treatment function request , equipped with a variety of plasma injection nozzle
The interior design of this machine with a variety of interfaces be reserved, you can according to customer requirements,
combined with the actual production line of on-line installation of a variety of automatic control functions
Note: must be according to customer specific request
One unit can combine many plasma generators and match more nozzles, according to customer's requirements
