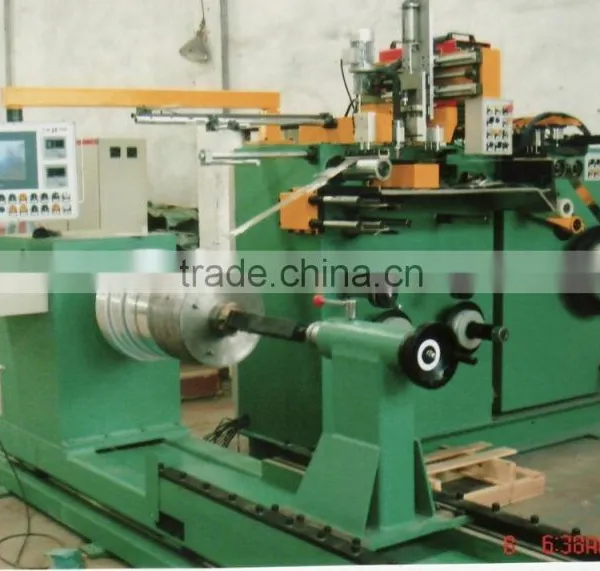

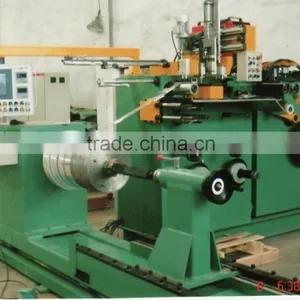

High Pressure Foil Winding Machine HGW-1

High Pressure Foil Winding Machine HGW-1 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
pouring transfomer of the high-voltage foil coils
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application pouring transfomer of the high-voltage foil coils
Automatic Grade Automatic
Production Capacity 0-80r/min
Place of Origin Jiangsu, China
Brand Name ALMACO/SMAC
Model Number HGW-1
Voltage v
Power(W) w
Dimension(L*W*H) m
Weight kg
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas



Product Description

high pressure foil winding machine



1.The  device is used for winding of the pouring transformer of the high-voltage foil coils.

2.The program of pause point can be relized in the process of winding and it can pitch accuratly.

3.Constant tension and automatic correction can be realized with insulation paper and foil thickness in the process of winding.

4.The requirements of meeting the height of coil can be satisfied.



Detail data

high pressure foil winding machine





Item



HGW-1

Width of foil sheet

30-180mm

Outer diameter of foil

1000mm

Foil thickness (ALU)

0.2-1.5mm

Foil thickness (copper)

0.2-1.5mm

Winding speed (stepless)

0-80r/min

Max tension

1200N

Welding mode

Pulse / gas tungsten arc welding machine

Welding speed

0.0.7m/min

Of offset accuracy

±0.8mm

Installed capacity

1.5kw







Device composition

                                              Device composition

Conductor foil decoiler Dust removal device Insulation decoiler       Driving alignment
Electronic control system TIG-welding Winding device
Edge pressing and Burr removing device Pneumatic control system

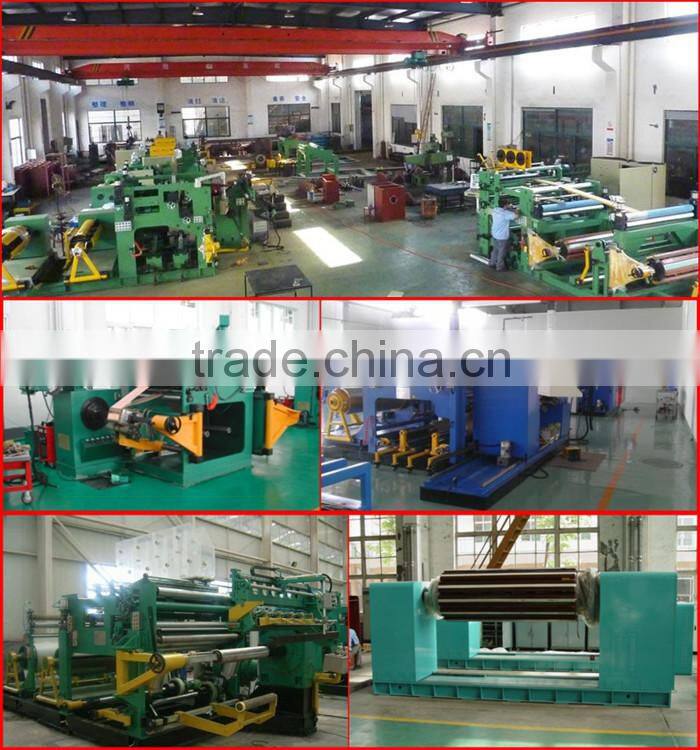

Factory View

                                         Factory view

                                  ***************************

high pressure foil winding machine HGW-1





Our advantage



1.More than twenty years experience of industry products

2.All models with CE , TUV, SGS , ISO9001/9002 OR other authority approved

3.High reputation around the world

4.Professional service and technology support

5.Competitive price with better quality, even the best

6.Final exported products would pass the strict test processing by 3rd international authority BIVAC

7.There is more exporting experience for 20years with our owned manufacture/company

Engineer Team

 high pressure foil winding machine HGW-1
