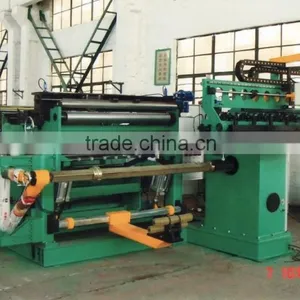

Help CenterFoil Type Winding Machine WJ1400 Monolayer
Related Products
-
Drill Tilting Table CS-TM-254NegotiableMOQ: 2 Sets -
High Performance Power Saw Machine for Sale 67360NegotiableMOQ: 10 Sets
-
Powerful Portable Impact Wrench for Sale 64020NegotiableMOQ: 10 Sets
-
ALMACO High Fuction 750W 100mm Wet Angle GrinderNegotiableMOQ: 5 Sets
-
ALMACO 950W 26MM Rotary Drill SG2602NegotiableMOQ: 15 Sets

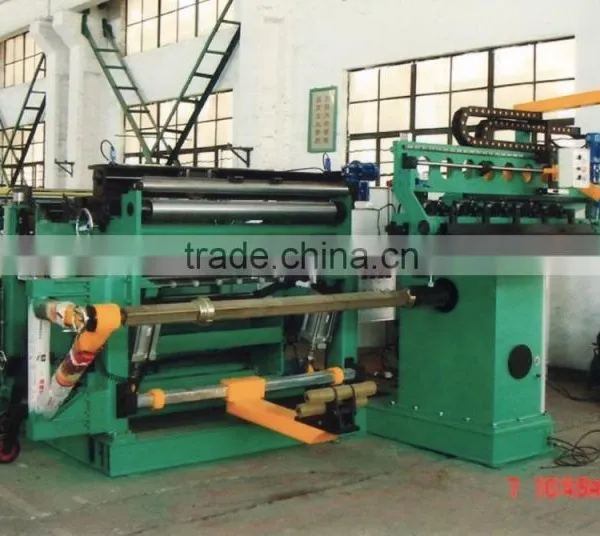

Foil type winding machine
1.The device is built with pneumatic control system besides the motor whice avoids the phenomenon of oil spilling.
2.There are 5 alloy rub pieces fixed on the decoiler,whose maxi-tension is 2000N
3.The tension canbe adjusted on the control pulse(the maxi-tension is 2000N). You can operate it by hand or.The correction system can be operated by hand or automatically.Each unit and system can be operated alone.
|
Item
|
Wj 1400(monolayer) |
Wj1400(double-deck) |
Width of foil sheet |
1400mm |
|
Outer diameter of foil |
≤800mm |
≤1000mm |
Foil thickness (ALU) |
0.7-2.5mm |
|
Foil thickness (copper) |
0.5-2.0mm |
0.5-2.0mm |
Winding speed (stepless) |
0-20r/min |
|
Max tension |
20000N |
|
Welding mode |
Pulse / gas tungsten arc welding machine |
|
Welding speed |
0-0.7m/min |
|
Of offset accuracy |
≤±0.4mm |
|
Installed capacity |
30kw |
45kw |
Host dimension |
5*4*2m |
6*4*2m |
Device composition
| Conductor foil decoiler | Foil feeding unit | Shear cutting device | Insulation decoiler |
| Side insulation device | Driving alignment | TIG-welding | Winding device |
| Electronic control system | Burr removing and cleaning system | ||
Factory view
***************************
1.More than twenty years experience of industry products
2.All models with CE , TUV, SGS , ISO9001/9002 OR other authority approved
3.High reputation around the world
4.Professional service and technology support
5.Competitive price with better quality, even the best
6.Final exported products would pass the strict test processing by 3rd international authority BIVAC
7.There is more exporting experience for 20years with our owned manufacture/company
Welcome to AlmacoMachine Tool Co., Ltd..
We are looking forward to bulding sincere and long-term business relationship with you
BEST QUALITY GOODS ****** LOWEST PRICE ****** PERFECT SERVICE
