Automatic Winding Machine WJ-1000 Monolayer

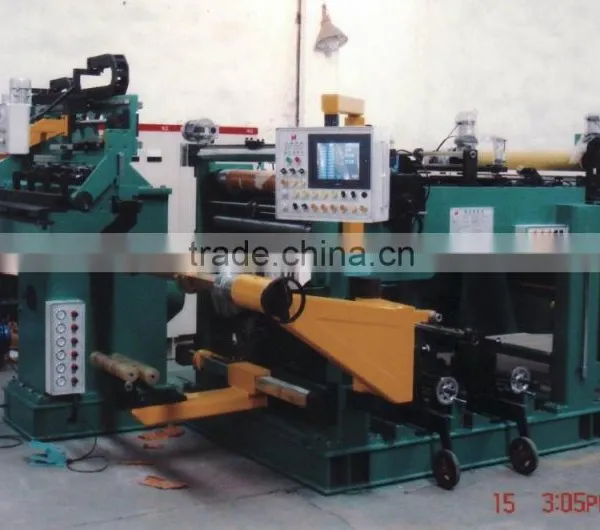

Automatic Winding Machine WJ-1000 Monolayer photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Automatic Grade Automatic
Place of Origin Jiangsu, China
Brand Name ALMACO
Model Number WJ-1000
Power(W) 25kw
Dimension(L*W*H) 4.5*3*2m
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas



Product Description

automatic winding machine



1.The  device is built with penumatic control system besides the motor whice avoids the phenomenon of oil spilling.



2.There are 5 alloy rub pieces fixed on the decoiler, whose maxi-tension is 2000N



3.The tension can be adjusted on the control pulse .You can operate it by hand or. The correction system can be operated by hand or automatically.Each unit and system can be operated alone.



Detail data

automatic winding machine







Item



WJ-1000(monolayer)

WJD-1000(double-deck)

Width of foil sheet

1000mm

Outer diameter of foil

800mm

Foil thickness (ALU)

0.5-2.5mm

0.5-2.3mm

Foil thickness (copper)

0.5-2.0mm

0.5-2.0mm

Winding speed (stepless)

0-20r/min

Max tension

20000N

Welding mode

Pulse / gas tungsten arc welding machine

Welding speed

0-0.7m/min

Of offset accuracy

±0.4mm

Installed capacity

25kw

30kw

Host dimension

4.5*3*2m

6*3*2m









Device composition

                                              Device composition

Conductor foil decoiler Foil feeding unit Shear cutting device Insulation decoiler
Side insulation device Driving alignment TIG-welding Winding device
Electronic control system Burr removing and cleaning system



Factory View

                                                         Factory view

                                                   ***************************

automatic winding machine WJ-1000 monolayer





Our advantage



1.More than twenty years experience of industry products

2.All models with CE , TUV, SGS , ISO9001/9002 OR other authority approved

3.High reputation around the world

4.Professional service and technology support

5.Competitive price with better quality, even the best

6.Final exported products would pass the strict test processing by 3rd international authority BIVAC

7.There is more exporting experience for 20years with our owned manufacture/company

Engineer Team

 automatic winding machine WJ-1000 monolayer





Company Information



                 Welcome to AlmacoMachine Tool Co., Ltd..

We are looking forward to bulding sincere and long-term business relationship with you

        BEST QUALITY  GOODS   ******  LOWEST PRICE     ******    PERFECT SERVICE



automatic winding machine WJ-1000 monolayer



 automatic winding machine WJ-1000 monolayer
