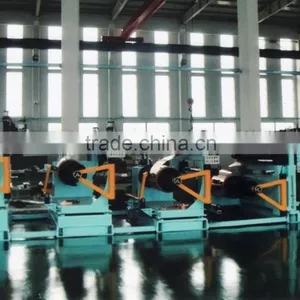

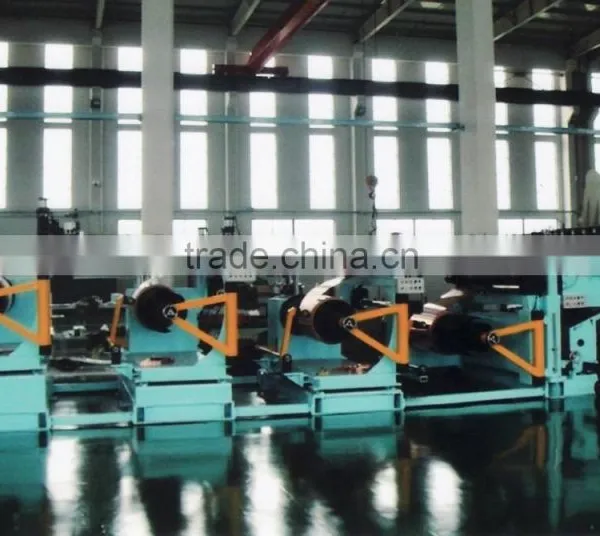

Multi Layer Winding Machine WJM1600

Multi Layer Winding Machine WJM1600 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Automatic Grade Automatic
Place of Origin Jiangsu, China
Brand Name ALMACO
Model Number WJM-1600 multi-layer
Power(W) 55kw
Dimension(L*W*H) 8.5*4.5*2.2m
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas



Product Description

multi layer winding machine

1.The device is designed for the large dry-type transformer and the special transformer coil



2.The device can fully meet the requirements of two places side by side and two place in a laminated ,it also

    can make up for the shortcomings of foil width and improve the quality and services of products



3.The device is built with pneumatic control system besides the motor which avoids the phenomenon of oil

    spilling



Detail data

multi layer winding machine





Item



WJD1600(double-deck)



WJD1600(Multi-layer)

Width of foil sheet

110-1600mm

Outer diameter of foil

1000mm

Foil thickness (ALU)

0.5-2.6mm

0.5-2.0mm

Foil thickness (copper)

0.5-2.0mm

0.5-2.0mm

Winding speed (stepless)

0-20r/min

Max tension

20000N

Welding mode

Pulse / gas tungsten arc welding machine

Welding speed

0-0.7m/min

Of offset accuracy

±0.5mm

Installed capacity

50kw

55kw

Host dimension

6.5*4.5*2.2m

8.5*4.5*2.2m





Device composition

                                              Device composition

Conductor foil decoiler Foil feeding unit Shear cutting device Insulation decoiler
Side insulation device Driving alignment TIG-welding Winding device
Electronic control system Burr removing and cleaning system



Factory View

                                                         Factory view

                                                   ***************************

multi layer winding machine WJM1600





Our advantage



1.More than twenty years experience of industry products

2.All models with CE , TUV, SGS , ISO9001/9002 OR other authority approved

3.High reputation around the world

4.Professional service and technology support

5.Competitive price with better quality, even the best

6.Final exported products would pass the strict test processing by 3rd international authority BIVAC

7.There is more exporting experience for 20years with our owned manufacture/company

Engineer Team

 multi layer winding machine WJM1600
