ALMACO Advanced Die Casting Machine

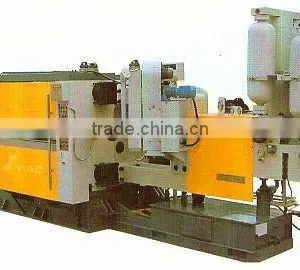

ALMACO Advanced Die Casting Machine thumbnail-1

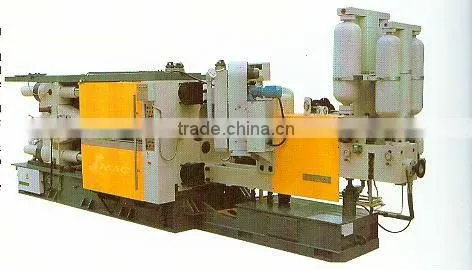

ALMACO Advanced Die Casting Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
ALMACO
Model Number:
AA
Contact Supplier Request Quote Chat Now
Almaco Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name ALMACO
Model Number AA
Shaping Mode Plastic Injection Mould
Product Material Plastic
Product Household Product
Item  Unit DC-160C DC-280C DC-400C DC-550C DC-630C DC-700C DC-800C DC-900C DC-1250D DC-1600C DC-2000C DC-2500C
Die locking unit
Die locking force KN 1600 2800 4000 5500 6300 7000 8000 9000 12500 16000 20000 25000
Die stroke mm 340 460 550 600 600 600 760 760 1000 1000 1350 1500
Die thickness mm 200-550 250-650 300-700 350-900 350-900 350-850 400-950 400-950 450-1180 450-1180 700-1650 750-1650
Between tiefbars mm 480X450 560X560 620X620 760X760 750X750 850X750 1000X1000 1000X1000 1190X1190 1180X1180 1285X1485 1430X1430
Tie bar diameter mm 85 110 130 150 160 170 190 190 240 250 265 300
Injection unit
Injection force KN 200 350 405 520 610 680 680 680 970 1200 1350 1690
Plunger stroke mm 340 420 500 600 600 750 760 760 950 950 1100 1100
Plunger tip of stroke mm 120 150 180 245 245 295 295 295 390 390 520 520
Injection port position mm -125 -125 -175 -220 -220 -250 -250 -250 -350 -350 -350 -450
Plunger-tip diameter mm 40,50,60 50,60,70 60,70,80 70,80,90 70,80,90 80,90,100 80,90,100 80,90,100 100,120,140 110,130,150 110-160 150-200
Shot weight(AL) kg 1.8 3.2 4.7 7 7 12 14 15 22 25 34 52
Casting pressure Mpa 159 178 141 135 135 135 135 135 125 126 135 135
Casting area cm2 400 700 1000 1375 1575 1750 2000 2250 3125 4000 5000 6250
Ejection unit
Ejection stroke mm 80 105 120 120 120 150 180 180 200 200 260 300
Ejection force KN 100 150 180 200 200 250 360 360 500 500 650 700
Working pressure MPa 14 14 14 14 14 14 14 14 14 14 15 15
Main motor kw 15 22 22 30 30 37 37 37 37+37 37+37 45+45 75+75
Machine weight kg 6500 13000 15000 23000 25000 38000 45000 50000 95000 102000 120000 175000
