Help CenterTwo Sides Corona Treatment System With HV700 Harden Guide Roller for Extrusion
Related Products
-
Double Sides CORONA TREATMENT With Silicone Tube and Cylinder ThreadingUS$ 4,000 - 8,000MOQ: 1 Unit -
Corona Treater Manufacturer Selling Plasma Treatment EquipmentsUS$ 8,000 - 10,000MOQ: 1 Unit
-
Remoted Control 3D Corona Generator for Surface Heat TreatmentUS$ 8,000 - 10,000MOQ: 1 Unit
-
Purchase Corona Treating Machine Free Get Dyne PenUS$ 8,000 - 10,000MOQ: 1 Unit
-
Surface Treatment Technology for Increasing Dyne LevelUS$ 8,000 - 10,000MOQ: 1 Unit

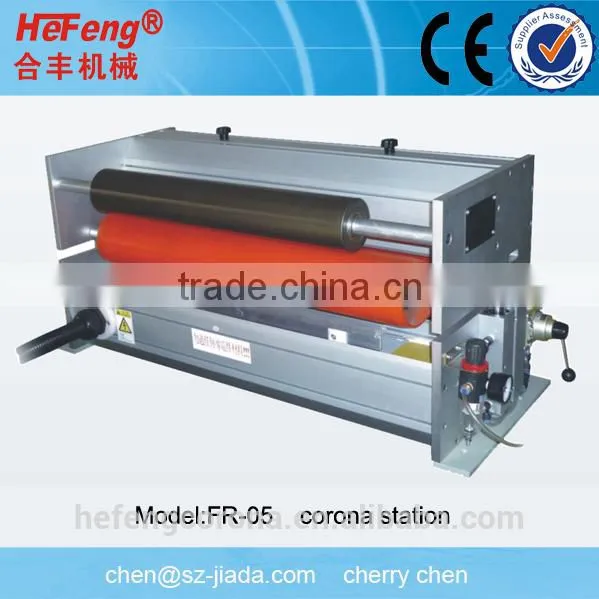

- Corona bare roller diameter 106mm/126 with 3mm thickness silicone tube
- Two sides corona treatment for the web
- Metal electrode for discharging,4fin,7fin,11fin,18fin,can be segmented
- Cylinder pneumatic open method convenient for threading
- Corona station used aluminum frame,antioxidant.
- A drawing is provided to display web directions.
- Equiped with generator power:3-20KW
- Corona generator can be remoted control and speed monitoring
- Corona Watt density can be adjusted
- Generator functions:Digital LCD screen display,manual control and automatic working mode(optional)
- When corona treatment stop exhaust blower automatic delay turn off
- A variety of corona treater working status alarm and equipment protection alarm(optional)

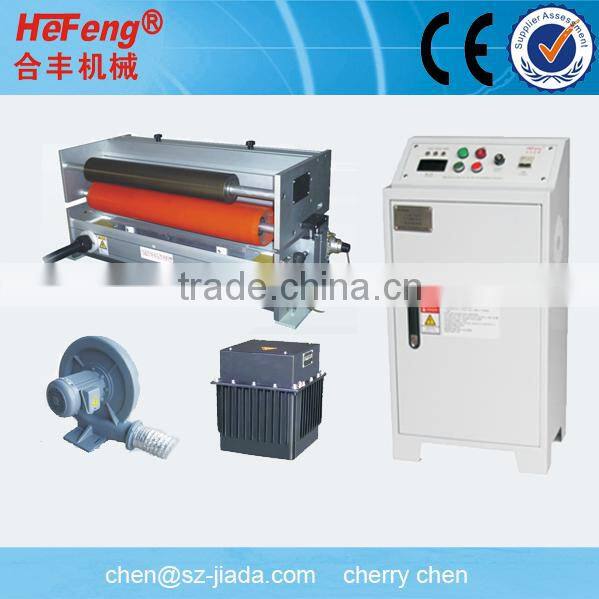

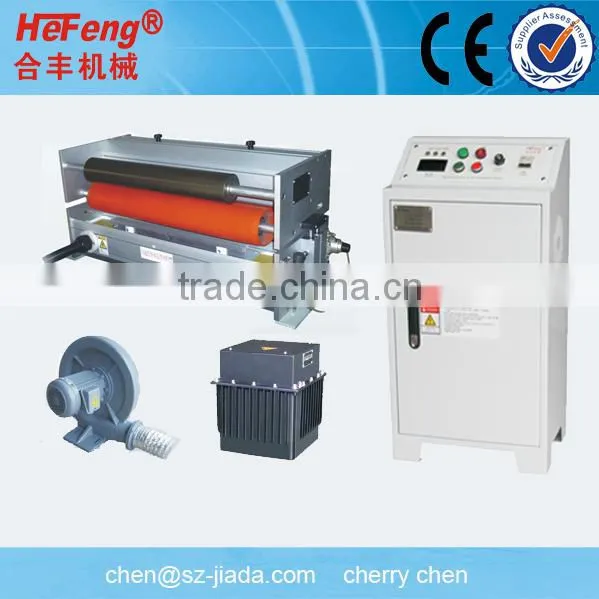

- Accessories:antistatic eliminator,exhaust blower

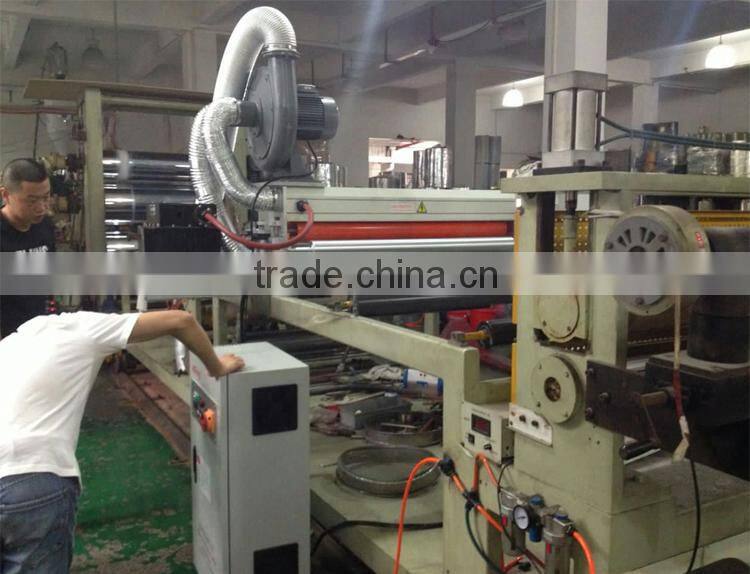

1. Online installation,work for PP,BOPP,PE,PET,HDPF,LDPE,PS,PI,PVC plastic film,foam,string
for coating machine,slitting machine,lamination machine,extrusion,etc...

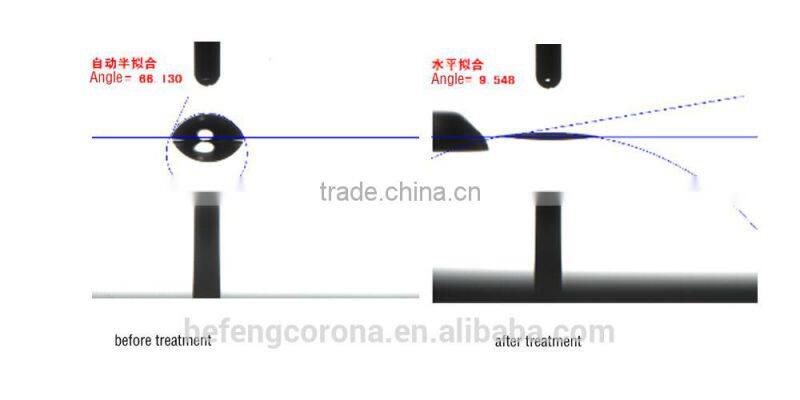

Treatment effect
Plywooden case
1.How to book a suitable corona machine?
We need to know the follow datas:
>What is the min speed and max speed
>What is the treated material,conductive or nonconductive
>Install in what kinds of equipment,printing machine,coating machine,limination machine or others?
Take a photo to show us the installation position .
2.How to know the treatment result?
You can use our Taiwan corona test pen to test or use the water or water-droped angle machine or test.
Heyuefeng Technology Co.,Ltd is mainly devoted to corona and plasma surface treatment industry of R&D and production.Its equipment is widely applied on pretreatment of coating,combination,ink jet,laminating,gluing,various printing industry to improve the surface adhesion of the material,such as PP,PET,PVC,BOPP,laser film,aluminium platinum,copper platinum and a variety of self-adhesive label.Compare with traditional flame treatment corona treatment and plasma treatment not only safe and can save the cost,but also highly raised the production efficiency,more important, it satisfy international export packing requirement.Now we are all staffs efforts to develop higher quality and low cost of surface treatment equipment return the customers continued support.
l In 2007 Registered our trademark "HeFeng machinery"
l In 2010 Shanghai company get through the ISO quality management system, certification NO: 00910 q11980ros;GB/T19001-2008
l In2010 the company independent research Plasma treatment machine, obtain the European CE certification: certification NO: 100914 / SHE697;
l In 2010, the company independent research plasma treatment machine get thenational utility model patent and design patent.
l In June 2010, the company takes part in the Shanghai world Expo and exhibition for 180 days, meanwhile get the honor of China's outstanding
private enterprises. certification NO: 0000002218;
l In 20011 Registered our another trademark ""HEYUEFENG"
l In 2011, the company independent research electrostatic eliminator achieved CE certification, NO: MTI110106001CE; MTI1101066001CS;
l In 2012, the company independent research drawer-type corona treater get thenational utility model patent and design patent.
l In 2013, the company independent research drawer-type corona treater achieved CE certification, NO: EC. 1282.1 e130325. SHE0401;;
l In 2013, the company independent research corona ceramic electrodes get thenational utility model patent and design patent.
