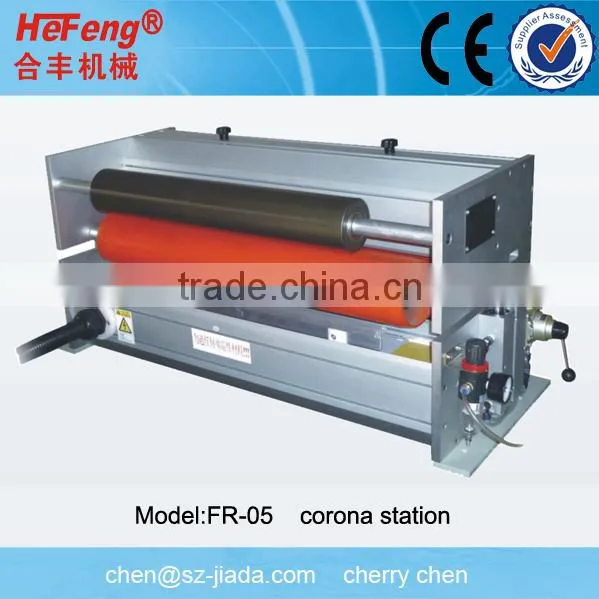

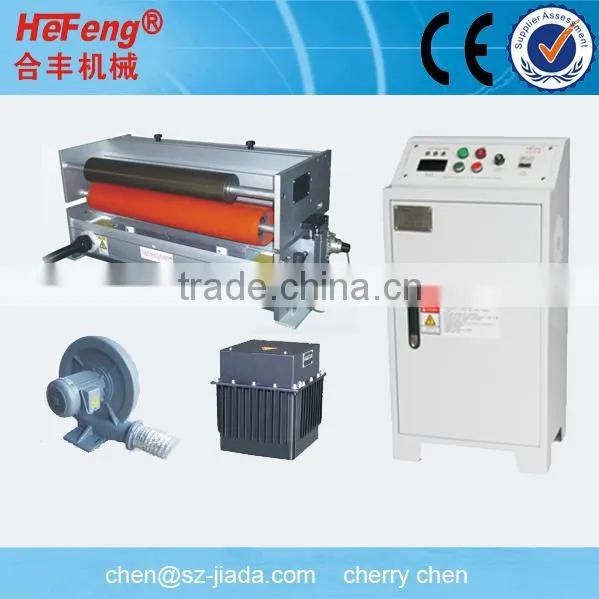

Help CenterDouble Sides CORONA TREATMENT With Silicone Tube and Cylinder Threading
Related Products
-
Corona Treater Manufacturer Selling Plasma Treatment EquipmentsUS$ 8,000 - 10,000MOQ: 1 Unit -
Remoted Control 3D Corona Generator for Surface Heat TreatmentUS$ 8,000 - 10,000MOQ: 1 Unit
-
Purchase Corona Treating Machine Free Get Dyne PenUS$ 8,000 - 10,000MOQ: 1 Unit
-
Surface Treatment Technology for Increasing Dyne LevelUS$ 8,000 - 10,000MOQ: 1 Unit
-
Surface Corona Treatment Ltd in ChinaUS$ 8,000 - 10,000MOQ: 1 Unit
Output power 2-5KW
Input voltage: 220V/380V ± 10%
Input frequency: 50/60Hz
Output voltage: 10-12KV
Output frequency: 15-25 KHz
Dimensions:customized
Packaging: wooden case
Warranty period:12 month except ceramic electrode
| Effective Width | Operation speed | Matched power |
| 600 | 80m/min | 3-4KW |
| 800 | 80m/min | 4-5KW |
| 1000 | 80m/min | 6-6KW |

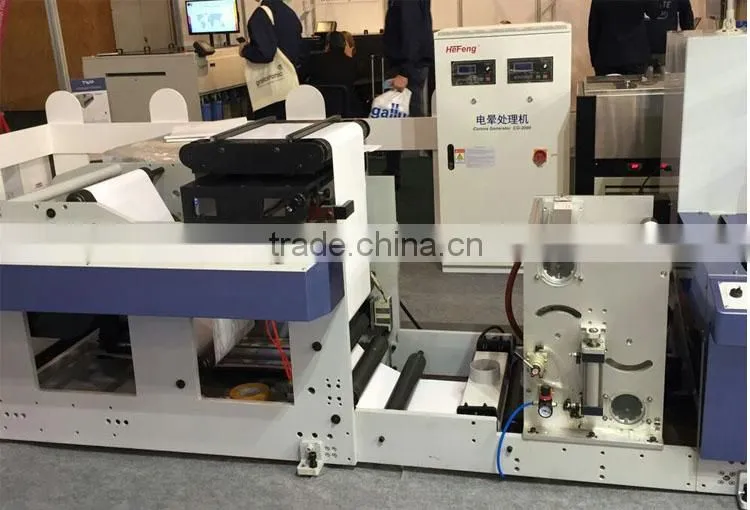

Used on: rotary printing press, flexographic press, rewinder, slitter, coating machine, laminating machine, etc.
- Corona bare roller diameter 130mm
- Treat one or two side(s) of the web
- Rectangular groove /German square high efficiency ceramic electrodes quantity can be optional
- Screw fixed electrode assembly for easy replacement and cleaning.
- Manual electrode pull open method convenient for threading
- A drawing is provided to display web directions.
- Equiped with generator power:2-20KW
- Corona generator can be remoted control and speed monitoring
- Corona Watt density can be adjusted
- Generator functions:Digital LCD screen display,manual control and automatic working mode(optional)
- When corona treater stop exhaust blower automatic delay turn off
- A variety of corona treater working status alarm and equipment protection alarm(optional)
Use high-frequency high-voltage on power pole in the discharge between the roller and corona,low-temperature plasma formed by ionization of air between the poles to produce ozone, which is a strong oxidizer, can change the molecular structure of plastic surface to make it non-polar into polarity. At the same time after the corona treating , it will cause uneven surface hole roughen,It will enhance surface activity, such as the increase in surface tension, that is, ink, glue, etc. will be able to further penetrate the material and processed to achieve he ideal effect on the printing and glue applicating.
Surface tension corona machine
packaging:plywooden case
shipping; EXW /FOB/CIF
Heyuefeng Technology Co.,Ltd is mainly devoted to corona and plasma surface treatment industry of R&D and production.Its equipment is widely applied on pretreatment of coating,combination,ink jet,laminating,gluing,various printing industry to improve the surface adhesion of the material,such as PP,PET,PVC,BOPP,laser film,aluminium platinum,copper platinum and a variety of self-adhesive label.Compare with traditional flame treatment corona treatment and plasma treatment not only safe and can save the cost,but also highly raised the production efficiency,more important, it satisfy international export packing requirement.Now we are all staffs efforts to develop higher quality and low cost of surface treatment equipment return the customers continued support.
l In 2007 Registered our trademark "HeFeng machinery"
l In 2010 Shanghai company get through the ISO quality management system, certification NO: 00910 q11980ros;GB/T19001-2008
l In2010 the company independent research Plasma treatment machine, obtain the European CE certification: certification NO: 100914 / SHE697;
l In 2010, the company independent research plasma treatment machine get thenational utility model patent and design patent.
l In June 2010, the company takes part in the Shanghai world Expo and exhibition for 180 days, meanwhile get the honor of China's outstanding
private enterprises. certification NO: 0000002218;
l In 20011 Registered our another trademark ""HEYUEFENG"
l In 2011, the company independent research electrostatic eliminator achieved CE certification, NO: MTI110106001CE; MTI1101066001CS;
l In 2012, the company independent research drawer-type corona treater get thenational utility model patent and design patent.
l In 2013, the company independent research drawer-type corona treater achieved CE certification, NO: EC. 1282.1 e130325. SHE0401;;
l In 2013, the company independent research corona ceramic electrodes get thenational utility model patent and design patent.
