Brake drum cutting machine:
The Brake drum/disc cutting machine is for repairing the brake drum or brake disc from mini car to heavy trucks.

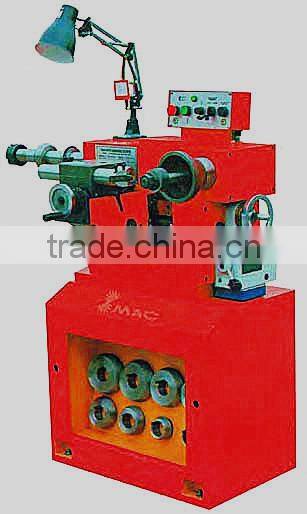

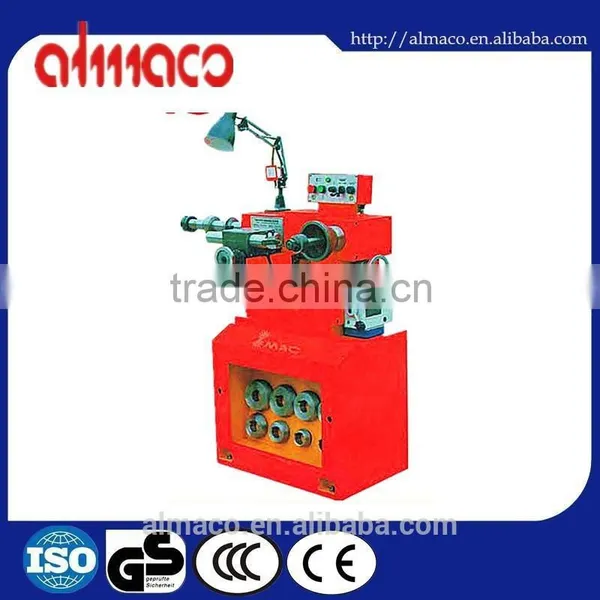

T8445FCV Brake drum/disc cutting machine is a kind of infinitely veriable speed lathe. It can fulfill the reparation of the brake drum disc and shoe of auto-mobiles from mini-car to medium heavy trucks. The unusual feature of this equipment is its twin-spindle each other perpendicular structure. The brake drum/shoe can be cut on the first spindle and the brake disc can be cut on the second spindle. This equipment has higher rigidity, accurate workpiece positioning and is easy to operate.
Brake drum cutting machine T8445:
Brake drum cutting machine T8445
| Specification | Unit | T8445 | T8445A |
| Drum dia capacity | mm | 180-450 | 180-450 |
| Disc dia capacity | mm | ≤400 | ≤400 |
| Spindle speed,three grades | rpm | 30,50,85 | 30,50,85 |
| Toolpost Travel | mm | 170 | 170 |
| Feed rate | mm/min | 0-0.5(stepless) | 0.3,0..16(2steps) |
| Motor | Kw/rpm | 1.1/1400 | 1.1/1400 |
| Power Requirment | 380V,50Hz,3phases | ||
| Packing size | mm | 1080*820*1280 | 720*850*1140 |
| Net weight | kg | 320 | 360 |
Our service:
1.All of our goods will pass QUALITY INSPECTIONS before shipment. Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2.More than 10 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.

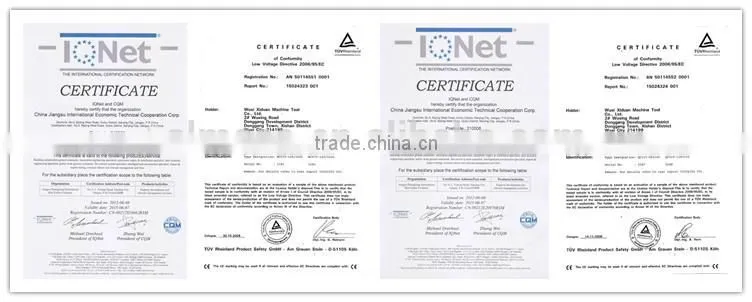

4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.

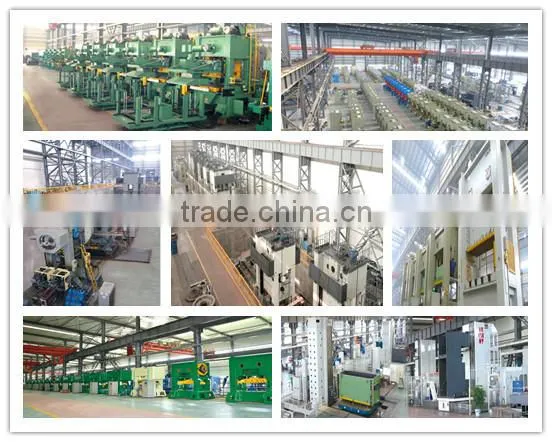

Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
We are looking forward to bulding sincere and long-term business relationship with you
