steel coil cutting line
steel coil cutting line
1.high quality on flatness
2.high precise cut to length
3.high quality on cutting
4.perfect stacking
5.delight man-machine interface
6.easy and simple maintenance
2.The component of the uncoiling and cutting line
1.box of electric components
2.leveler
rrector
4.cutting
5.uncoiling;
6.hydraulic station
7.hydraulic uncoiling
ntrol station and control panel
3.The detailed introduction and function of each part of the product line

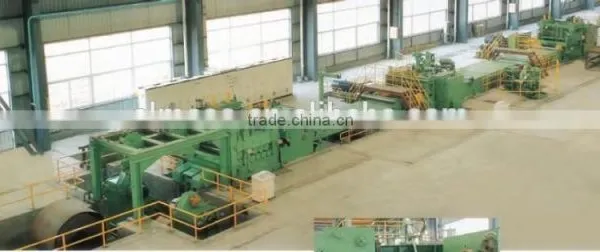

ALMACO steel coil cutting line
is widely used in the uncoiling, correcting, leveling and cutting
of steel coil sheet, and it has the below main components:
1.Uncoiling machine
a. Function:
hydraulic breathing feeding frame can change from small to large, so it is convenient to
load the steel coil sheet in the feeding frame.
b. Inner diameter and diameter of the feeding frame:
c. Max bearing of the feeding frame :10T;
d. Max revolving speed of the feeding frame: Power of electric machine :
e. The theory of the change of size of the feeding frame and the direction of revolving:
f. Lifting standard:
the peak of the uncoiling are prepared a pair of rings for transportation and installation;
g. Packing size and weight:3200×1500×2000mm,4200kg;
h. others:
painting:
We even never ignore any details, so even the inner of the uncoiling we still paintwith the
same color and model of oil paint;
structure and standard of pork rod: high strength, perfect cooperation degree;
flange:
considering the actual product, we cut the edge of the flange and then weld specialized
element to increase the proportion
2. corrector
a.Function
b. precision:
c. width:1300mm
d. revolving:
e. hand wheel:added the hand-bar stem to make the operation more relaxed and easy
f. roller:
diameter:
material:
processing craft:
amount: two pairs of rollers and one is in the front and the other one pair is behind
g.packing size and weight:1900×900×1300mm,800kg
3. leveling machine
a. drawing roller:
revolving speed:
amount:2
up and down range: 1-15mm
diameter and length:
the thickness of the rubber covering: the up drawing roller is covered with the thickness
of mm rubber covering;
b. leveling roller:
up and down range:1-3mm
length and diameter:
revolving speed::
amount and the array of the rollers:
they are divided in two lines and the first 4 s up while the rest 5 is under them
c. electric machine:
power:
amount:
mark: each machine is marked in convenient for you to distinguish them one by one
d. gears
amount:12 gears;
method to lubricate: grease gun
lubricating oil model:32#
e. the theory of the change of the direction of roller:
f. brand and model of the electronic circuit:
g. character of the rollers:
hardness:
material: 40Cr;
processing craft
attention: Please prevent the welding and cutting scraps
window for watch the lubricating oil: more easy to monitor the amount of the lubricating oil
packing size and weight:3100×1300×1900mm,3500kg;
4. hydraulic station
a. function
b. model of the lubricating oil:46#;
c. liquid level sensors: fixed in the hydraulic station to monitor the amount of lubricating oil
d. packing size and weight:1800×600×800mm,300kg;
e. list of the valves
5. size of the electric cabinet:900×700×1200mm
6. cutting machine:
a. function:
b. packing size and weight: 2200×1200×1300mm,1200kg
7.size and weight of the movable cart:2000×1700×900mm,1600kg

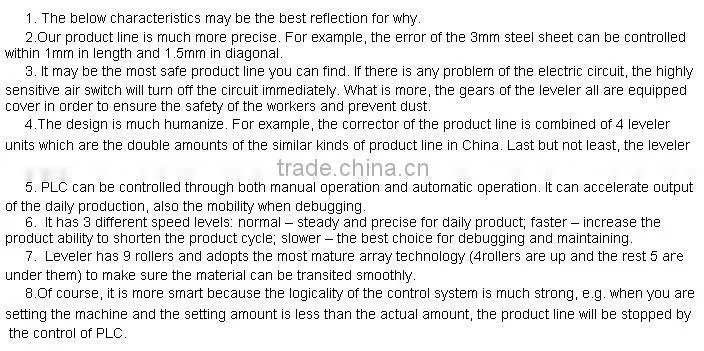

Why do so many business partners choose our product?
We take more and more aspects in consideration than your expectation just for our
double-win.
steel coil cutting line
Experienced Engineer Team especially for the
steel coil cutting line
*******************************************************
steel coil cutting line
