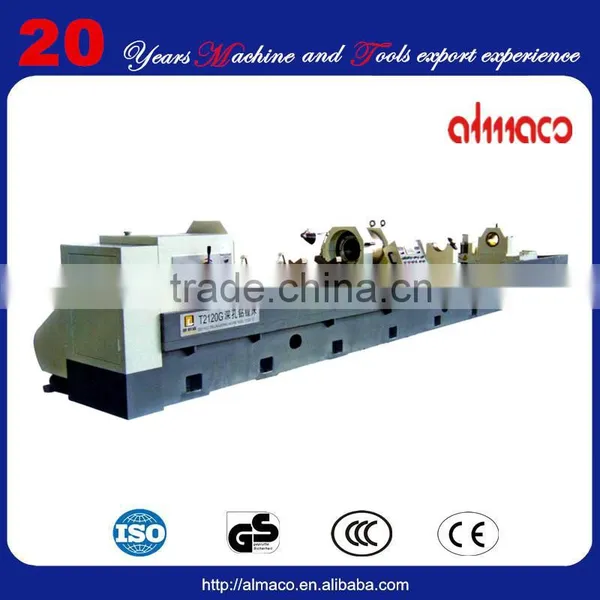

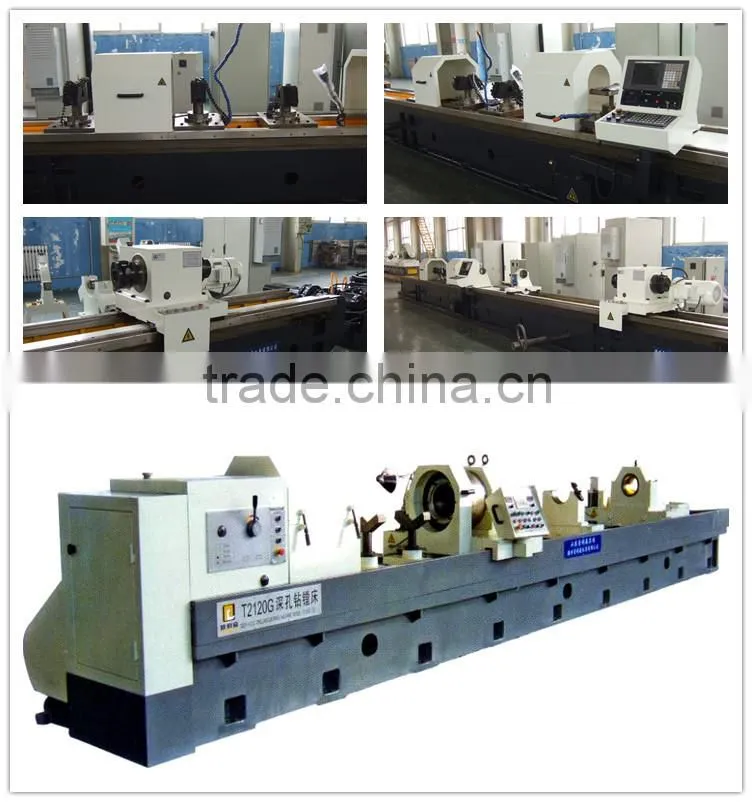

china boring machine
china boring machine is special equipment for machining deep cylindrical hole of workpieces
It suitable for boring the cylindrical workpiece
1.Oil supply:from the guide carriage, and take the chips from the cutting area to the equipment of
chip conveying on the headstock.
2. BTA drilling method:The oil is supply from the guide carriage, and take the chips from the
cutting area to the equipment of chip conveying in the back of machine
3.PLC controlled system
4.SERVO motor:controll the reciprocating movement of guide carriage and feeding carriage
5.The drive:made by the racks in the two to ensure long movement feeding transmission accuracy
and rigidity requirements.
6.Protection and ground oil tank structure:improved machine tool environment
7.automatic or manual expansion efficient tool:greatly improve the machining efficiency
china boring machine
Feature : 1.easy to operate and control
2.high efficiency
3.environmental friendly
|
Specification |
T2110G,T2110G/1 |
T2120G,T2120G/1
|
The range of drilling diamete |
Φ20~60mm |
Φ40~80mm |
The range of boring diametre |
Φ40~100 |
Φ80~200mm |
The height of center |
400mm |
400mm |
The range of boring depth |
1000~5000mm |
1000~10000mm |
The diameter of chucks |
Φ400mm |
Φ400mm |
Workpiece clamped dia. Range of steady rest |
Φ50~400mm |
Φ50~400mm |
Range and kinds of spindle speed |
70~1200r/min 3 grades 12kinds |
70~1200r/min 3 grades 12kinds |
The power of main motor |
N=15kw |
N=30kw |
Range of feeding speed |
5~2000mm/min |
5~2000mm/min |
Feeding motor |
N=4.5kw servo motor |
N=4.5kw servo motor |
Guide carriage motor |
N=4.5kw servo motor |
N=4.5kw servo motor |
Cool pump motor power |
N=5.5kw n=1440r/min(two group) N=7.5kw n=960r/min |
N=5.5kw n=1440r/min(two group)
|
Rated pressure of cooling system |
2.5Mpa,6.3Mpa |
2.5Mpa |
The flow of cooling system |
80,180,280L/min |
100,200,300,400L/min |
Standard accessories
|
If equip the frequency conversion motor |
The range and kinds of spindle speed |
60~1200r/min 3 grade system |
60~1200r/min 3 grade stepless |
Main motor |
N=22kw frequency conversion motor |
N=37kw Frequency conversion motor |
|
|
T2110G/1 has a drilling box with 15kw power and the speed is 60-800r/min |
T2120G/1 has a drilling box with 15kw power and the speed is 40-500r/min |
|
|
The main motor power can be changed to 30kw and the max drill diameter can be reach Φ 80mm |
If add the equipment of drill small hole, the Φ20~40mm hole can be drill. |
|
Our factory workshop
Welcome to AlmacoMachine Tool Co., Ltd..
We are looking forward to bulding sincere and long-term business relationship with you
BEST QUALITY GOODS ****** LOWEST PRICE ****** PERFECT SERVICE
