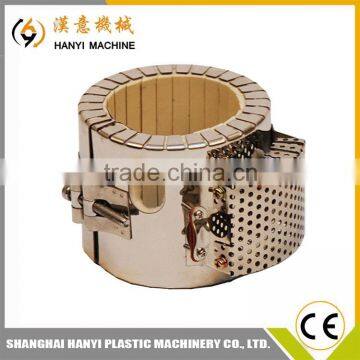

Electric 220V/200V Heater Element Resistance

(The Japanese customer visit in the factory!)

Feature:

1.  High temperature/voltage resisting and good insulation provide by Belgium mica plates.

2.  Fast & even heat-dissipation and perfect high temperature/voltage resisting provide by imported heating filament from Europe.

3.  Using inner hexagonal screws for tight fixing and easy setting.

4.  Japan stainless steel of good quality gives good appearance, homogeneous heat-dissipation and high temperature resisting to the heaters.

5.  Comprising imported magnetic connection base and Japan heatproof cover protective wire.

Technical Specification:

1. Working condition: environment temperature: -20℃~+60℃

2.  Electric field strength: last for 1 min without any penetrating while being test with electrified sine AC (1500V/50HZ).

3.  Leakage current: <5mA

4.  Insulation resistance: >50MΩ

5.  Ground resistance: <10Ω

6.  Temperature durability: surface temperature can reach 500℃ without any burnt phenomena when working.

7.  Power deviation: ±10%

Installation and Operation Notes:

1. The contact surface of the installing position should be flat without any accidented phenomena.

2. To keep the best insulation, this electric heating device should be kept in dry condition and from dipping into water.

3. Check before installation whether the specifications of the installing position and the working voltage matches this electric heating device or not.

4. To avoid expansion and shrinkage affect the working life, check after installation whether the inner hexagonal screws, the screws of connect base and the wire-connecting screws are screwed up firmly or not.

5. This electric heating device should work under appointed voltage and a transformer should be a plus.
