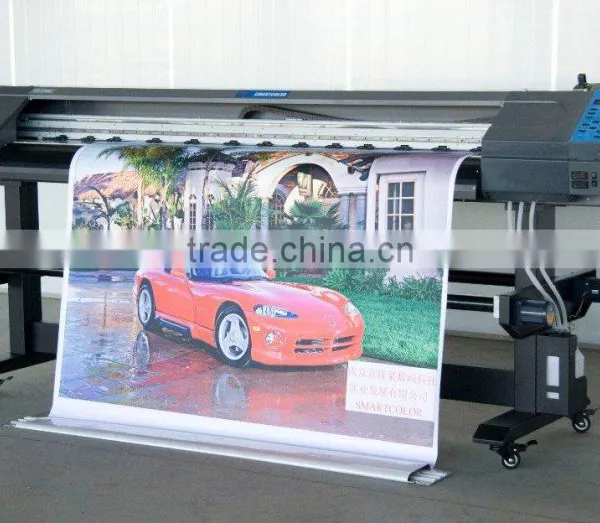

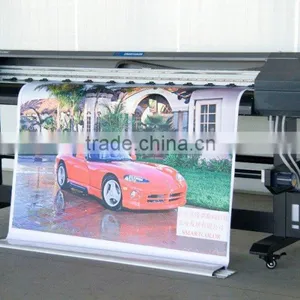

High Resolution Ecosolent Printing Machine

    PARAMETER

Model

FT-1560

FT-1800

Print head

Piezo technology, Epson fifth printer head

Piezo technology,  fifth printer head

Ink

Waterbase ink/eco Solvent ink

Waterbase ink/eco Solvent ink

Color mode

Dual KCMY

Dual KCMY

Nozzles

(192nozzles×81lines)×1head

(192nozzles×81lines)×1head

Print head higher

1.5mm2.5mm(Adjustable)

1.5mm2.5mm(Adjustable)

Ink supply method

Block brake type

Block brake type

Feed paper method

Multi-press feed paper

Multi-press feed paper

Usable materials

Coat paper, high glossy photo paper, PVC, flex, banner

Coat paper, high glossy photo paper, PVC, flex, banner

Cut

Auto/handle cut

Auto/handle cut

Max material width

1600mm

1940mm

Max printing width

1520mm

1800mm

Min printing margin

5mm

Printing resolution and speed

Resolution(dpi)

speed

360*1080 6 pass

12.0sqm/h

720×360

720*720

4pass

15.0sqm/h

8pass

8.0sqm/h

1440×720(8pass)

4.0sqm/h

1440×1440(16pass)

2.0.0sqm/h

Heating equipment

Two stage heating,system, front and back, external fans( optional)

Roll outer diameter

2 (Inch.)/3(Inch.)

Material

)Single paper(feed front),Roller paper(feed rear)

Maximum weight for roll material

20Kg/40kg external strong feeding and take-up system

Interface

USB2.0/Hi USB

RAM

128M

Take-up system

Roller (Optional)

Printing language

Standard printer languages

Power

AC100-120V/AC220-240V (Adaptive),50/60Hz±1Hz

      power consumtion

Printing mode

1100W

Standby mode

40W

Acoustic noise

≤52dB

Environment

(Temperature):20-32°C,(Humidity):40-60% ,Non-condensing

 Dimension(L×W×H)

2120mm×750mm×1250mm

2380mm×750mm×1250mm

Weight

150kg

180kg
