Specifications

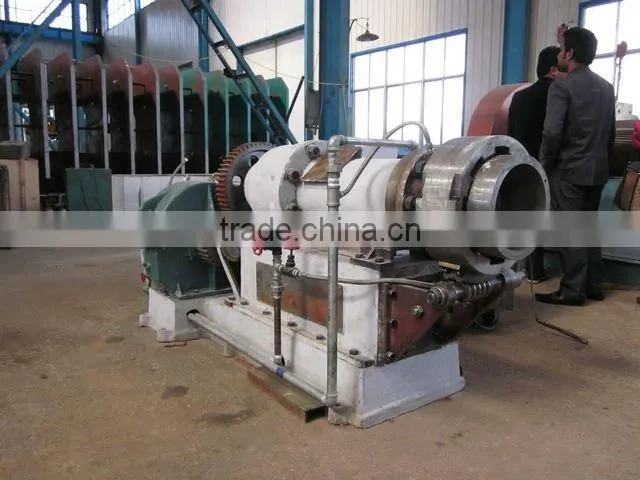

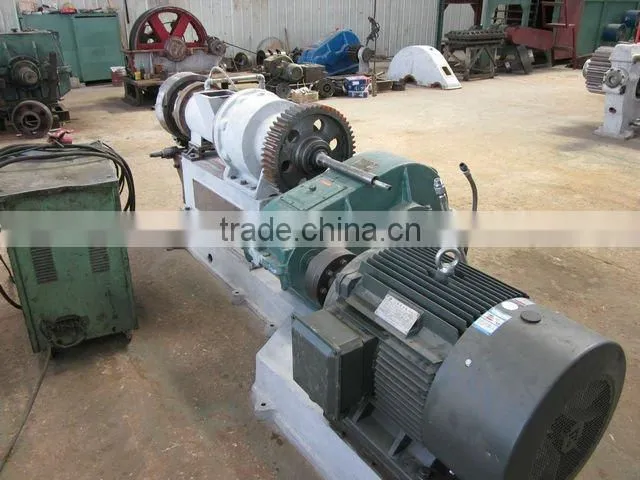

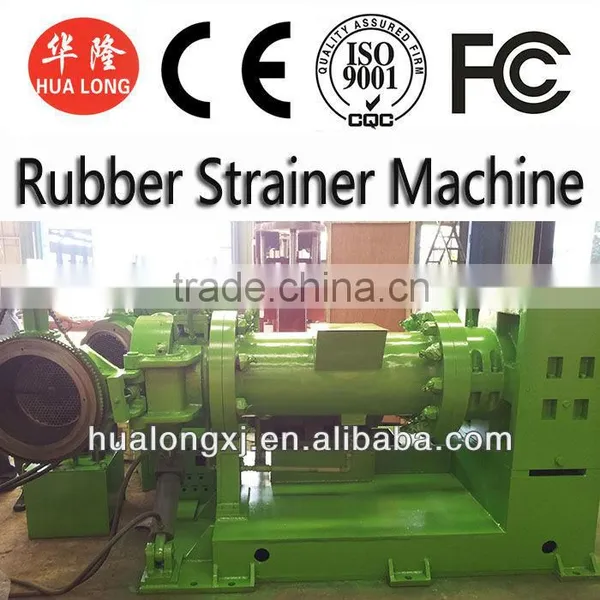

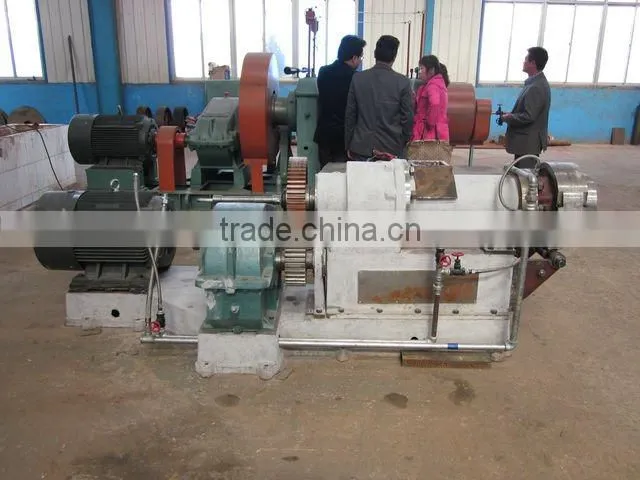

We manufacture various types of rubber strainer machine.Our electronic control system and raw materials is the best Chinese.
The machine Mainly used for reclaimed rubber compound production.
Properties:

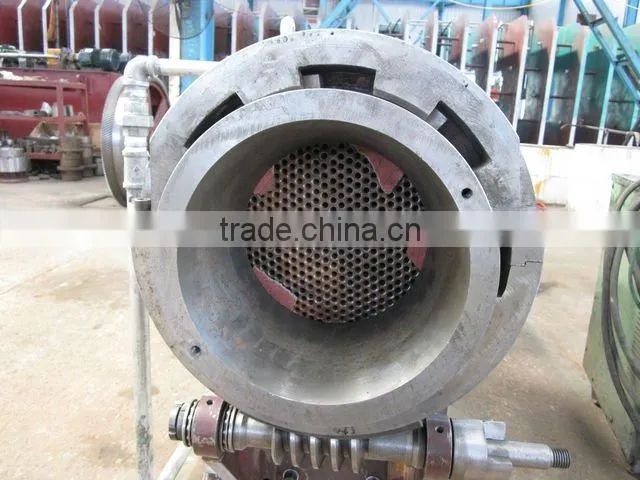

using screw conveyor, pushing and the compound or reclaimed rubber impurities removed machinery. Mainly by the screw, machine canister, nose and transmission of filter rubber components. Filter on the helicopter with orifice plate rubber and filter, orifice plate used to support the screen and for discharging mouth, its aperture for 4 ~ 8mm along the compound, the flow direction expansion tapered holes. Filter gum machine screw length-diameter ratio is commonly 5 or so.
Type |
XJL-150L |
XJL-200 |
XJL-250 |
Screw diameter |
150mm |
200mm |
250mm |
Screw ratio |
53r/min |
45r/min |
40r/min |
Screw form |
Double-head equal-depth and isometry |
||
Length-diameter ratio of screw |
1:5.14 |
4.5:1 |
4:1 |
KW Motor power |
37kw |
55kw |
110kw |
Production capacity |
450kg(hour) |
900kg(hour) |
1800kg(hour) |
Cooling water pressure |
0.2-0.4Mpa |
0.2Mpa |
0.2Mpa |
Size: Length×Width×Height |
3250×1180×1150 |
3900×990×1650 |
2730×1630×1505 |
