Home > Products > rubber machinery > XKP-400 rubber crusher

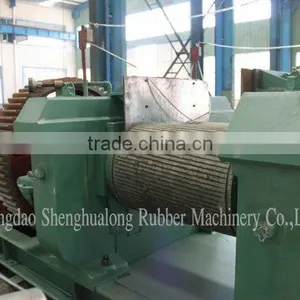

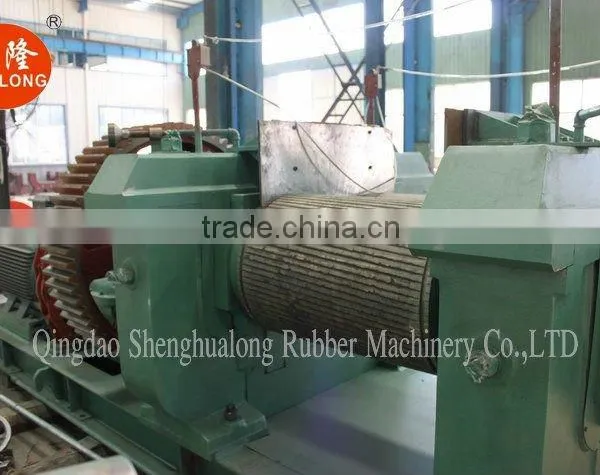

XKP-400 rubber crusher
- 100 Set / Sets per Month
- Qingdao
- T/T
Product Details
Type: | Rubber Cutting Machine | Place of Origin: | Shandong, China | Brand Name: | HUALONG |
Model Number: | XKP-400 |
Product Description
Specifications
The roll is made of chilled cast iron with spun casting.Rubber crusher
1) The roll is made of chilled cast iron with spun casting.The roll face is hard and anti-wear.(Rolls of G mode are made of high grade steel with hard alloy welded on the surface)The back roll is fluted.The internal cavity of the roll is processed to make temperature well poportioned on the roll surface.
2) The machine is equipped with and overload protection device to prevent the major components from being damaged due to overloading.
3) The machine is also equipped with an emergency device.when an emergent accident happens,just draw the safety pull-rod,and the machine will stop immediately.it is safe and reliable.
Rubber Crusher
Type Technical parameter |
XKP-400 |
XKP-450 |
XKP-560 |
Front roll diameter(mm) | 400 | 450 | 560(510) |
Rear roll diameter(mm) | 400(Groove roller) | 450(Groove roller) | 510(560)(Groove roller) |
Working length of rolls(mm) | 600 | 650 | 800 |
Front roll surface speed(m/min) | 17.32 | 23.2 | 25.56 |
Friction ratio | 1:1.38 | 1:1.38 | 1:1.30 |
Max.nip(mm0 | 8 | 8 | 15 |
Motor power | 45 | 55 | 75(90) |
Overall dimension: length×Width×Height(mm) | 3950×1800×1780 | 4770×1846×1835 | 5064×2284×1978 |
