Home > Products > rubber machine > rubber belt cutting machine bar rubber cutter machine

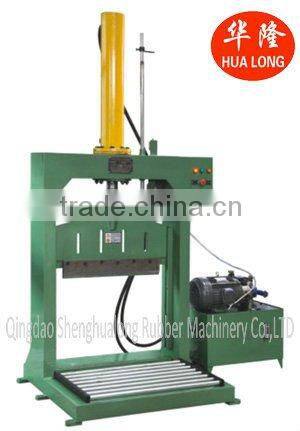

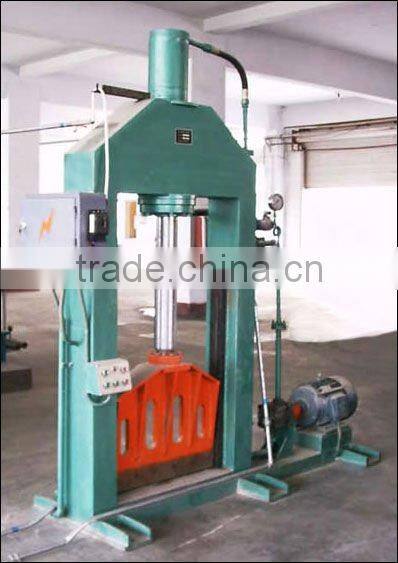

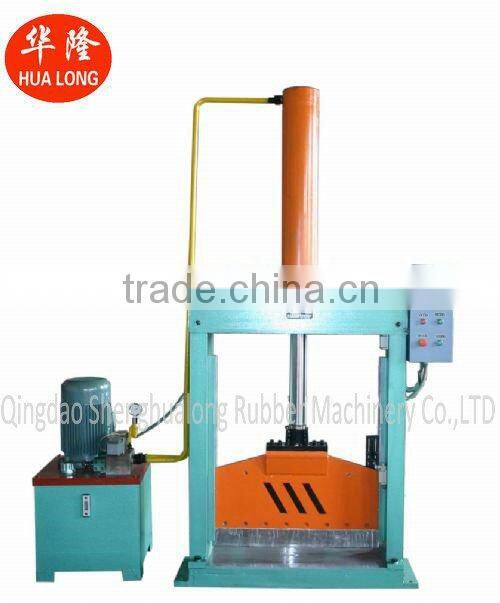

rubber belt cutting machine bar rubber cutter machine
- 100 Set / Sets per Month
You May Like
Product Details
| Type | Rubber Cutting Machine | Place of Origin | Shandong, China | |
| Brand Name | HUA LONG | Model Number | XQL-80 |
Product Description
Specifications
1'Superior Quality, Reasonable Price2'CE and ISO9001:2000 Certificates
3'Fast delivery, excellent after-sales service
Main Uses:
This rubber cutting machine/cutter/bale splitter is mainly used to cut the natural rubber, synthetic rubber, and other plastic materials into gommures / pieces, which is convenient to mix; especially it is suitable to be installed near the rubber mixer to cut small piece of rubber.
Structure:
This Rubber Cutting Machine mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system and etc. Simple structure, convenient to operate.
Features:
1' The lead is casted on the base right under the rubber knife for protecting the edge of the rubber knife.
2' Two limit switches are installed on the frame to control the reversal valve to control the movement direction of the rubber knife, at the same time it protects the cover of the cylinder.
Simple structure, convenient to operate, high production efficiency, reduce labor intensity.
Width(mm) | 660 |
Stroke(mm) | 680 |
Total pressure of oil cylinder (KN) | About 80 |
Time taken by the stroke (s) | 14-16 |
Motor power (KW) | 5.5 |
Overall dimension: Length×Width×Height | 2000×1300×2500 |
We according to client needs custom products.
Contact Us
- Qingdao Shenghualong Rubber Machinery Co., Ltd.
- Contact nameJack Fang Chat Now
- Phone86-532-86105715
- AddressROOM.C2403,Huishang International building,NO.467 changjiang road, qingdao economic and technological development zone.shangdong,china., Qingdao, Shandong
