24ft Energy Saving Ceiling Mounted Exhaust Fan

24ft Energy Saving Ceiling Mounted Exhaust Fan thumbnail-1
24ft Energy Saving Ceiling Mounted Exhaust Fan photo-1
US$ 2,300 - 5,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Power Source:
Electric
Type:
Ventilation Fan
Installation:
Ceiling
Contact Supplier Request Quote Chat Now
Shanghai Siyi Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Power Source Electric
Type Ventilation Fan
Installation Ceiling
Material Other, Aluminum Alloy
Power (W) 1500
Voltage (V) 380
Brand Name SIYI
Model Number SYD73
Place of Origin Shanghai, China

Specifications

Ceiling Mounted Exhaust Fan
1) High efficient and low cost.
2)Large coverage area, low noise.
3)Absolutely safety and OEM.

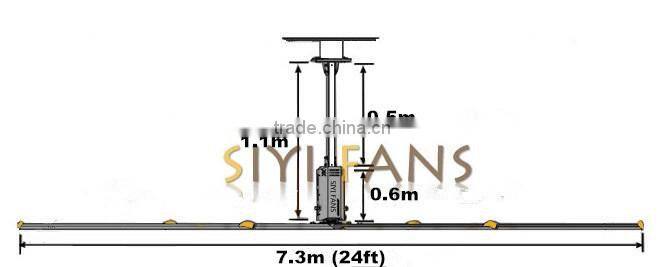

Technical Specifications



Control Box

Model number

SYD73

Fan diameter

7.3m (24ft)

Airfoil material

Aluminum Alloy

Airfoil finishes

Plastic Spraying

Weight

150kg

Height

1.1m (3.3ft)

Number of airfoils

6pcs

Motor

Controller included

Yes



Voltage

220V/380V

Frequency

50HZ/60HZ

RPM(min/max)

0/48rpm

Power

1.5kw

Coverage area

1300m²

Warranty

2Years

Protection

IP54



 24ft Energy Saving Ceiling Mounted Exhaust Fan

What is SIYI industrial ceiling mounted exhaust fans?



SIYI industrial large ceiling fan is a type of mechanical fan used in commercial and industrial settings. Unlike residential ceiling fans that are typically 36 to 52 inches in diameter, SIYI large ceiling fans have very large diameters that start at 12 feet and go up to 24 feet. SIYI large ceiling fans move very slowly unlike standard fans which operate at high speed. With large diameters and low rotating speed, SIYI large ceiling fans can move large amounts of air, so it is named “high volume, low speed” (HVLS) fan.





SIYI industrial large ceiling fans are widely applied in livestock barns, warehouses, distribution centers, shopping malls, skating rinks health clubs and so on. Due to the rising costs of energy, industrial ceiling fans are often used to supplement HVAC systems as they provide a stronger cooling effect while helping to maintain a constant temperature and humidity.



How to work?



The unique airfoil blades on the SIYI industrial large ceiling fan produce a massive, cylindrical column of air that flows down to the floor and outward in all directions.  This horizontal floor jet pushes air a greater distance before it begins to move vertically and is drawn back through the fan.   The greater the down flow, the greater the air circulation will be.

Accessories





After repeatedly tests, SIYI HVLS fans adopt Germany NORD motor to ensure the low noise, efficient, reliable and durable operation. The motor is free lubrication for life and any potential oil leakage is prevented by  double lip seals.

SIYI HVLS fans adopt SCHNEIDER inverter, which is the most famous inverter in worldwide. The overload protective device in controller box can automatically disconnect the power supply once accident occurs. So safety is assured. You can regulate the wind speed at will by rotary switch. What's more, the inverter can control the fan to rotate in forward and reversing direction.







SIYI industrial ceiling fan adopt the totally new cutting technique to manufacture the chassiss. Compared with the low pressure casting technique, the life span of new chassis is 10 times more. What’s more, it solve the segmentation absolutely.





The flabellum is the core technique of the fan. Our fans have six or eight PCS of blades and winglets to ensure maximum airflow and efficiency. Unique designed winglets at the airfoil tips greatly eliminate wind noise. The blades is made of aluminum alloy with plastic spraying finish, so it can resist corrosion and dust very well.



Packing



24ft Energy Saving Ceiling Mounted Exhaust Fan 24ft Energy Saving Ceiling Mounted Exhaust Fan
85CM*85CM*90CM 35CM*35CM*350CM

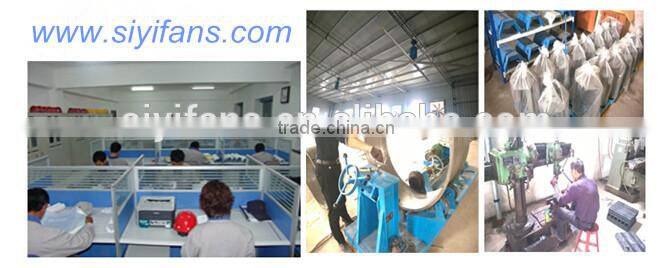

Our Factory



24ft Energy Saving Ceiling Mounted Exhaust Fan



Why choose SIYI fans?



1) Any inquiry will be replied within 24 hours.

2) Professional manufacturer. Welcome to visit our website:

3) OEM is available.

4)High quality, fashion designs, reasonable&competitive price, fast lead time.

5)After-Sale Service

All the products will be strictly quality checked in warehouse before packing.

All products will be well packed before delivery.

We guarantee the whole fan for two years.

6) Payment

You can arrange the payment by TT, Western Union, Cash and Escrow.

7)Shipment

We have strong cooperation with several good forwarder in China.

You also can choose your own shipping forwarder.
