Help Center3.8m Industrial Workshop Large Ceiling Fan
Related Products
-
24ft Energy Saving Factory Giant FanUS$ 2,300 - 5,000MOQ: 1 Piece -
Big Diameter Ceiling Fan HVLS 20ftUS$ 2,300 - 5,000MOQ: 1 Piece
-
7.3m Industrial Huge Ceiling FanUS$ 2,300 - 5,000MOQ: 1 Piece
-
20ft Large Size HVLS Industrial FanUS$ 2,300 - 5,000MOQ: 1 Piece
-
16ft Low Energy Industrial Commercial FanUS$ 2,300 - 5,000MOQ: 1 Piece
Specifications
1) High efficient and low cost.2)Large coverage area, low noise.
3)Absolutely safety and long life span.
4)OEM is available.
|

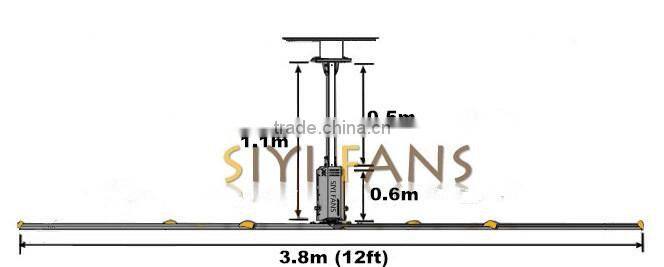

Technical Specifications |
Control Box |
|
Model number |
SYD38 |
|
Fan diameter |
3.8m (12ft) |
|
Airfoil material |
Aluminum Alloy |
|
Airfoil finishes |
Fluorocarbon Coating |
|
Weight |
98kg |
|
Height |
1.1m (3.3ft) |
|
Number of airfoils |
6pcs |
Motor |
Controller included |
Yes |
|
Voltage |
220V/380V |
|
Frequency |
50HZ/60HZ |
|
RPM(min/max) |
0/55rpm |
|
Power |
1.1kw |
|
Coverage area |
700m² |
|
Warranty |
2Years |
|
Protection |
IP54 |
|
What is SIYI fans?
SIYI fan is a type of mechanical fan used in commercial and industrial settings. Unlike residential ceiling fans that are typically 36 to 52 inches in diameter, SIYI fans have very large diameters that start at 12 feet and go up to 24 feet. SIYI fans move very slowly unlike standard fans which operate at high speed. With large diameters and low rotating speed, SIYI fans can move large amounts of air, so it is named “high volume, low speed” (HVLS) fan.
HVLS fans are widely applied in livestock barns, warehouses, distribution centers, shopping malls, skating rinks health clubs and so on. Due to the rising costs of energy, HVLS fans are often used to supplement HVAC systems as they provide a stronger cooling effect while helping to maintain a constant temperature and humidity.
How to work?
The unique airfoil blades on the SIYI fan produce a massive, cylindrical column of air that flows down to the floor and outward in all directions. This horizontal floor jet pushes air a greater distance before it begins to move vertically and is drawn back through the fan. The greater the down flow, the greater the air circulation will be.
Accessories
Packing
|
|
| 85CM*85CM*90CM | 35CM*35CM*170CM |
Why choose SIYI fans?
1) Any inquiry will be replied within 24 hours.
2) Professional manufacturer. Welcome to visit our website:
3) OEM is available.
4)High quality, fashion designs, reasonable&competitive price, fast lead time.
5)After-Sale Service
All the products will be strictly quality checked in warehouse before packing.
All products will be well packed before delivery.
We guarantee the whole fan for two years.
6) Payment
You can arrange the payment by TT, Western Union, Cash and Escrow.
7)Shipment
We have strong cooperation with several good forwarder in China.
You also can choose your own shipping forwarder.
