GT06N Motorcycle Gps Tracker With SOS Alarm

GT06N Motorcycle Gps Tracker With SOS Alarm thumbnail-1
GT06N Motorcycle Gps Tracker With SOS Alarm thumbnail-2
GT06N Motorcycle Gps Tracker With SOS Alarm photo-1

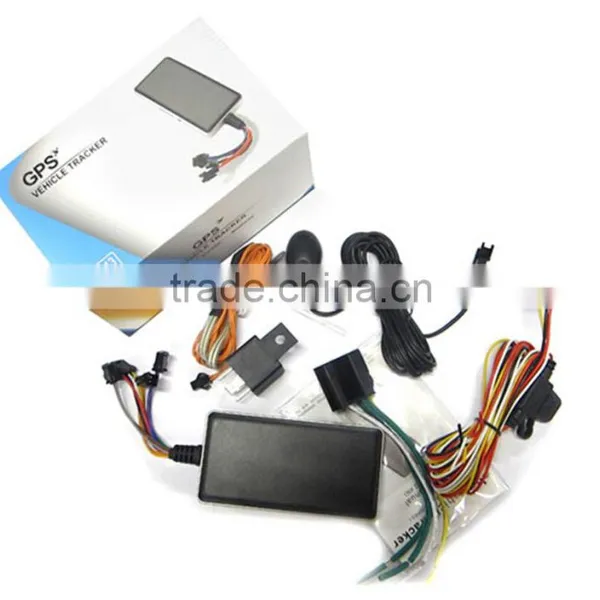

GT06N Motorcycle Gps Tracker With SOS Alarm photo-2
US$ 35 - 40 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Gps Tracker
Use:
Automotive
Screen Size:
Other, no Screen
Contact Supplier Request Quote Chat Now
Shenzhen Auto Leaders Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
HongKong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Tracker
Use Automotive
Screen Size Other, no Screen
Function Other, Location / time tracking / remote monitoring / emergency alarm
Place of Origin Guangdong, China
Brand Name SinoTrack
Model Number GT06N
Warranty 1 Years



The GT06N is a Basic Tracker,

If you need professional vehicle Tracker,

Please choose the GPS Tracker ST-908:





And our online monitor software ST-999S:







If you use our trackers,

It is FREE to use our software!!!








Model GT06N
Application Special for Motorbike,applicable to business or private cars, car renting company, logistics, and so on
Weight 45g
Unit size 95mm(length) * 48mm(width) * 15mm(height)
Standard accessory power cable / relay / MIC / SOS button
Optional accessory Data cable



Specification
Operating temperature -20°C ~ 70°C
Storage temperature -20°C ~ 70°C
Operating humidity 20% ~ 80%
Storage humidity 20% ~ 90%
Input voltage DC9~36V
Working current Around 60mA(12vDC);around 35mA(24vDC)
GSM Module SimCom, Four-Band GSM850/900/1800/1900(MHz)
GPRS connectivity GPRS multi-slot class 10, GPRS mobile station class B
GPS Module USA original SIRF III/LP ultra-low power consumption GPS chip
Position accuracy 10 meters, 2D RMS
Tracking sensitivity - 159dBm
Acquisition sensitivity - 144dBm
acquisition Hot start 2s, warm start 32s,cold start 38s
Indicator LED 3colors indicator: power, GPS,GSM



Hardware Features
Positioning Location tracking via SMS/GPRS (TCP/UDP):
  1. SMS location racking.
  2. signal real time location tracking.
  3. GPRS location tracking via time interval.
Wiretapping set authorized phone number and with external MIC:
  1. Use authorized phone number to call the tracker, after 5rings, the caller can listen to vehicle inside voice.
  2. Unauthorized number calling, tracker will not be monitored.
Alarm
  1. main power cut off alarm.
  2. shock alarm.
  3. SOS.
Remotely control fuel/power
  1. remotely disable and enable fuel and power.
Product feature
  1. Small, slim, easy to install.
  2. Built-in switching power, wide voltage input range.
  3. Can be powered by cigarette lighter or vehicle battery power.



Special features (work with our tracking software)
Monitor
  1. get real time position and alarms notice.
  2. get last position.
  3. position data includes: terminal ID, time, address, position validity, alarm( over-speed, SOS), vehicle status( engine, door, shock), speed, mileage, direction, GSM signal, GPS signal, Longitude, Latitude.
Mileage
  1. mileage statistics, can synchronize initial mileage.
  2. working time and non-working time driving mileage statistics.
Geo-fence
  1. Area-in alarm, area-out alarm, and set geo-fence area as station.
  2. Set geo-fence area as station and manage the in/out vehicle.
  3. Fence type includes: round, rectangle, polygon, broken line.
  4. Fence alarm real time notes, and can send alarm info to user specified mobile phone and email.
Reports
  1. Vehicle exceeds any speed enquiry.
  2. Vehicle various speed statistics.
  3. Vehicle parking time and address report.
  4. Vehicle daily running info report.
  5. Vehicle the vehicles that go through specified location.
  6. Driver over time fatigue driving report.
  7. Stat. engine on time, door open/close time, vehicle shock info.
  8. Mileage, speed curve chart display.
Others
  1. Automatically get address by longitude and latitude.
  2. Multi-function system administrator, edit and manage user conveniently.
  3. Operate terminals based on users privilege to prevent error.
  4. multi-vehicle track replay meanwhile.
  5. Different colors to show vehicle different status: running/stop/alarm/invalid location.
  6. Real time Stat. vehicle status number: monitored qty/unmonitored qty/alarm qty/ located qty/non-located qty.
  7. Grouped display vehicles according to their info or status.
  8. Vehicle alarms or status changes, tracker sends SMS to defined phone to Email.
  9. Historic track can be output by KML, and load by Google Earth.
  10. All kinds’ reports can be output to Html, word, Excel files.

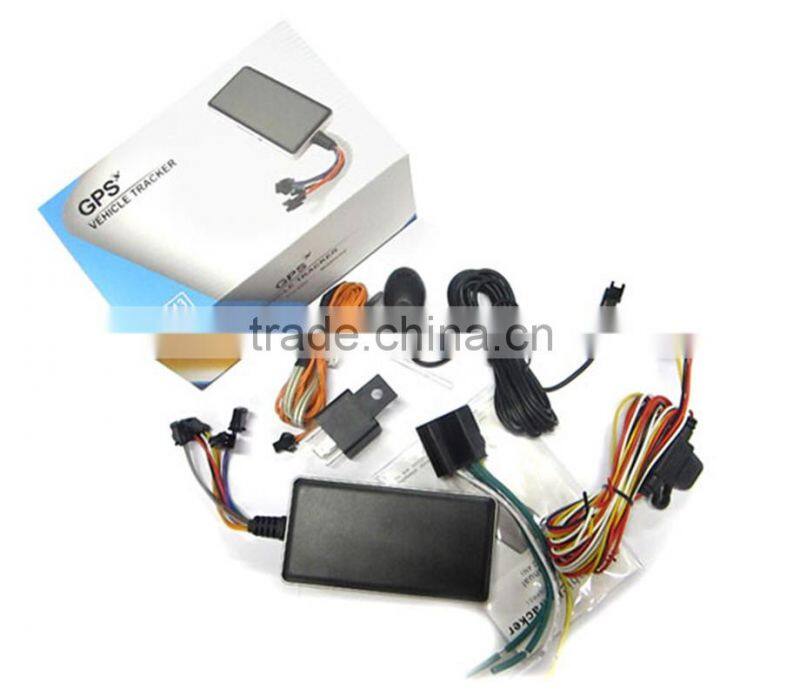

GT06N motorcycle gps tracker with SOS alarm










GT06N motorcycle gps tracker with SOS alarm

GT06N motorcycle gps tracker with SOS alarm







        GT06N motorcycle gps tracker with SOS alarm    GT06N motorcycle gps tracker with SOS alarm   GT06N motorcycle gps tracker with SOS alarm



  FAQs Need your HIGH attention:

1. Q: If this tracker can work without a simcard?

A: This tracker is a combination of current GSM network and GPS positioning. A suitable simcard is a FIRST NECESSITY to make it work. These 2 CANNOT work seperately.



2. Q: Where can I find a Suitable simcard to make it work?

A: As mentioned above, a suitable simcard is required to make it work. But when you choose the simcard, you need to be CAREFUL in order not to waste money. The simcard should be a GSM network based (ONLY GSM). The tracker now CANNOT support 3G in theory. Why in theory? According to our selling experience, in some countries such as AU, US, UK, etc, there are ONLY 3G simcard can be found now. But the tracker CAN still perform normally with such 3G simcard, that is because these 3G simcard can support or compatible with a lower generation like 2G or 2.5G, which is enough to make the tracker work. When you choose the simcard, PLEASE DO CONFIRM this with your local simcard provider.



3. Q: If your trackers are FAKE or CLONE ones?

A: First, let's say NO to confidence both of you and us. We have our OWN production line and Tracking system. If we are selling fake or clone ones, we should have been prohibited from selling earlier. There are several GPS tracker manufacturers here in China. We will NEVER send emails worldwide to say only trackers we are selling are REAL ones. Because on this question, buyers will make their final judgment. What you will get from us won't be just a simple transaction BUT should be professional technical support and final pleasant using experience. We have been trying to improve all the time just because we regard all your things as them of ourselves. So we need your trust and a firm support



4. Q: I CANNOT make it work. Both the tracker and user manual are complicated

A: The tracker comes with a certain technology, but it is a little far away from being told as complicated. About the user manual, it illustrates very detailed on each function, EVEN each correct command you should edit to send to tracker. You just need to spend some little patience reading it over. The user manual will NOT ONLY helps you get familiar with the tracker, BUT ALSO will help you do a CORRECT operation. We are quite sure and very pleased to offer you technical support for any problem, BUT as long as you refer to use manual carefully, you must make it work in perfect condition TOTALLY by yourself. You will enjoy this feeling.
