High /Low Voltage Switchgear
High Voltage Switchgear
Scope of application

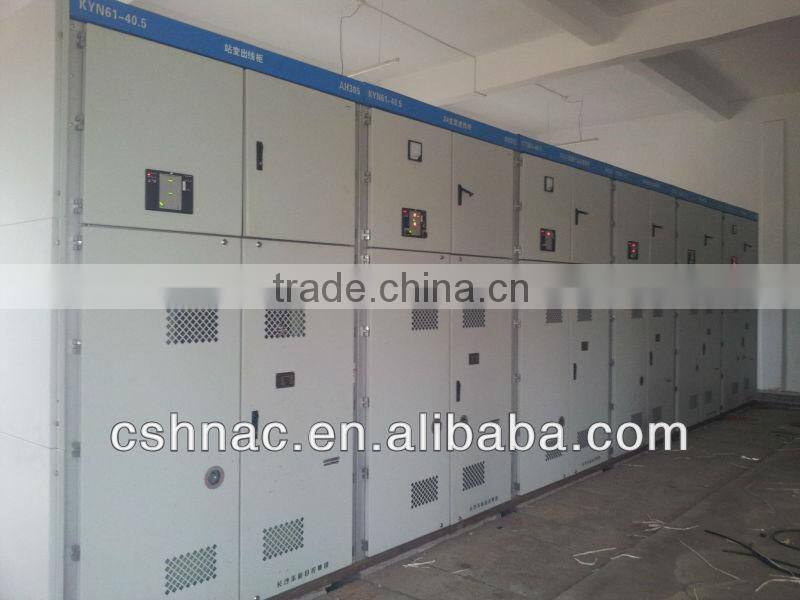

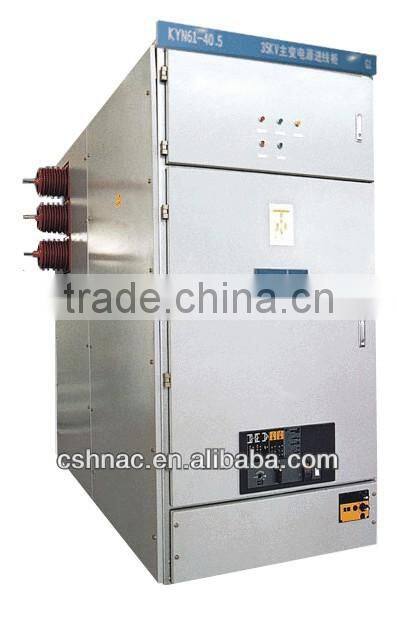

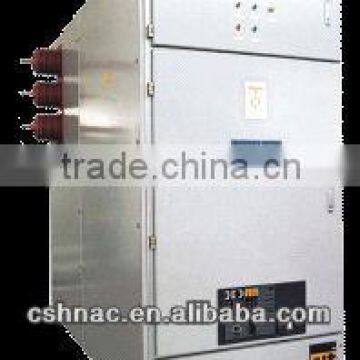

KYN61-40.5 Metal-clad withdrawable AC metal-enclosed switchgear is used for the complete distribution equipments of power plant, transformer and hydropower plant system. The device is equipped with “Five Preventions” functions.
- Working voltage:26~40.5kV(50 / 60 Hz)
- Max. working voltage: 40.5kV
- Max. rated current: 2000A
- Rated short-time withstand current,4s: 20 / 25 / 31.5kA
- Rated peak withstand current : 50 / 63 / 80 kA
- Steel Enclosure: IP3X
- Wide x deep x high: 1400mm x 2800mm x 2600mm

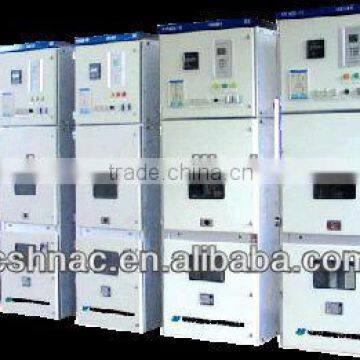

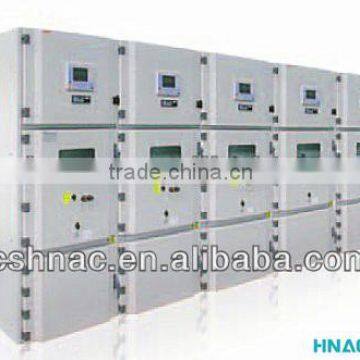

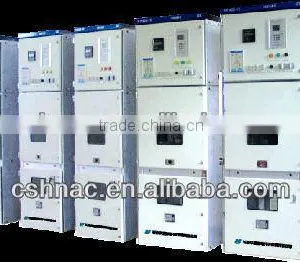

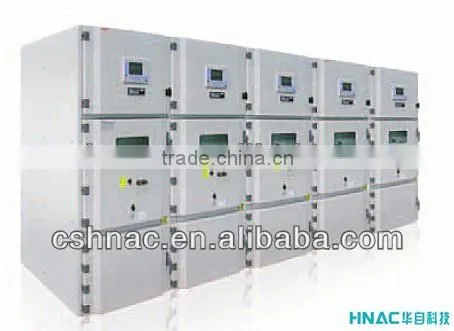

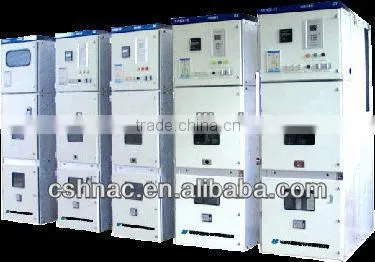

KYN28-24, KYN28A-12 Metal-clad withdrawable AC metal-enclosed switchgear is used for the complete distribution equipments of power plant, transformer and hydropower plant system. The device is equipped with “Five Preventions” functions.
KYN28-24
- Working voltage: 13~24kV (50 / 60 Hz)
- Max. working voltage: 24kV
- Rated current: 1250 / 1600 / 2000 / 2500 / 3150A*(* With enforced cooling)
- Rated short-time withstand current,4s: 20 / 31.5 / 40 kA
- Rated peak withstand current : 63 / 80 / 100 kA
- Steel Enclosure: IP4X
- Wide x deep x high: 1000mm x 1800mm x 2300mm
KYN28A-12
- Working voltage: 3.6~12kV (50 / 60 Hz)
- Max. working voltage: 12kV
- Rated current: 630 / 1250 / 1600 / 2000 / 2500 / 3150A*(* With enforced cooling)
- Rated short-time withstand current, 4s: 16 / 20 / 25 / 31.5 / 40 / 50 kA
- Rated peak withstand current :40 / 50 / 63 / 80 / 100 / 125kA
- Steel Enclosure: IP4X
- Wide x deep x high: 800/1000mm x 1500 /1660mm x 2300mm
Low Voltage switchgear

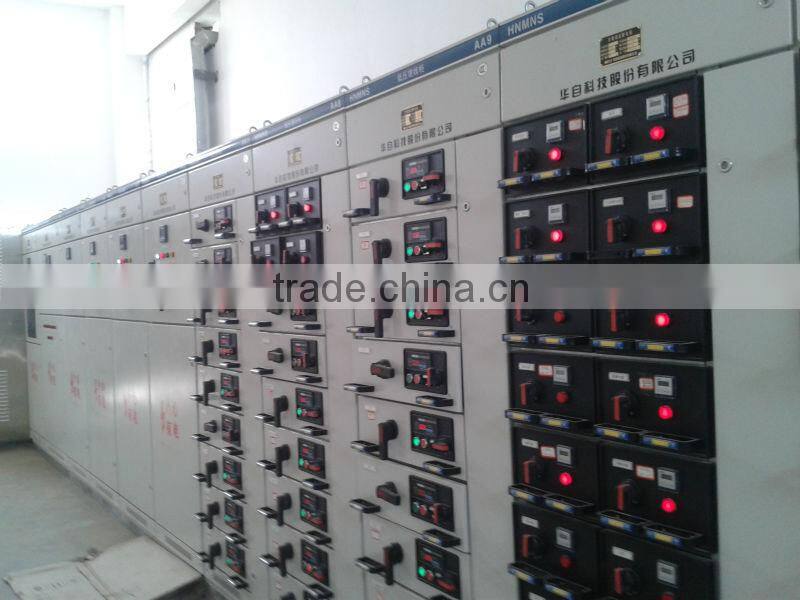

GCK, GCS , MNS and GGD series low voltage switchgears apply to the distribution system of power plant, substation, petrochemical industry, metallurgical industry, traffic energy and high-rise buildings.
Working voltage: AC215V~ 660V (50 / 60Hz);
Bus-bar system up to 6300A;
Full range from 100A to 4000A
Steel Enclosure IP4X up to IP65 (IP65 available upon request)
