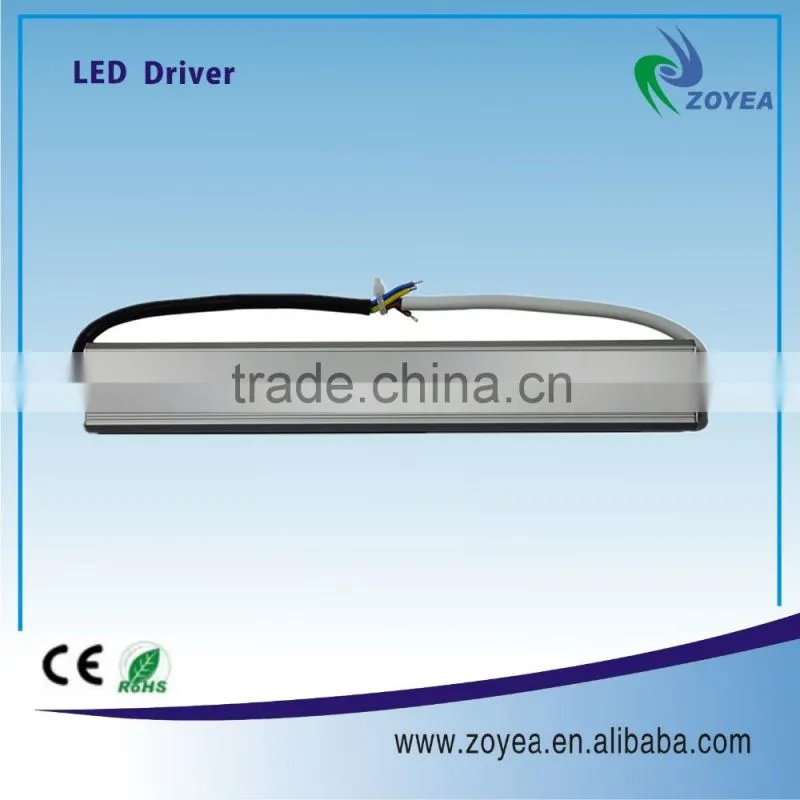

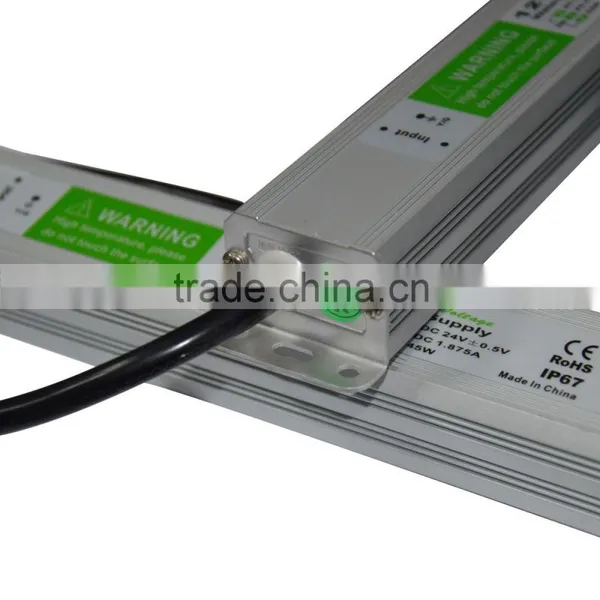

80w 24v Waterproof driver led strip circuit ip67 led lighting led driver
Features:
1. Constant Voltage mode power supply
2. Universal AC input(85-265V)
3. Fully encapsulated with IP67 level
4.Withstand 300VAC surge input for 5seconds
5. Protections:Short circuit/Over load/Over current
6. Cooling by free air convection
7. 100% full load burn-in test
8. High Reliability
9. Meet RoHS/CE
10. 2 year warranty
11. Waterproof, meet IP67
Specification
| Model | FSV-80W | |||
| Output | Dc Voltage | 24V | ||
| Rated Current | 3.33A | |||
| Voltage | 90-265V | |||
| Rated Power | 80w | |||
| Ripple&Noise(Max) | 150mV | |||
| Current Tolerance | ±4% | |||
| Setup,Rise Time | 100ms/220VAC | |||
| Hold Up Time(Typ.) | 80ms/220VAC | |||
| Input | Voltage Range | 90-265VAC | ||
| Frequency Range | 47~60Hz | |||
| Power Factor(Typ) | PF>0.96 | |||
| Efficiency(Typ) | 89% | |||
| Protection | Short Circuit | Protection type,recovers automatically after fault conditions is removed | ||
| Overlaod | Overload protection@145~160%above peak rating | |||
| Over Temperature | protection typer, shut down o/p voltage.re-power on to recover | |||
| Environment | Working Temp | -30~ +60°C(Refer to output load derating curve) | ||
| Working Humidity | 20~90%RH no-condensing (Waterproof) | |||
| Storage Temp Humidity | -40~ +80°C,10~90%RH | |||
| Safety&Emc | Safety Standards | CE Mark(LVD),IP67 | ||
| Withstand Voltage | I/P-O/P;.5KVAC IP-GND;.5KVAC | |||
| Emc Test Standards | EN 550152006; EN 615471995+A12000 ;EN 61000-3-22006; EN61000-3-21995+A22005 EN 61347-12008 EN 61347-2-132006 |
|||
| Connect the line request | Input:H03VV-F 3G*0.75mm Brown&blue&kelly VDE(200mm) Output:H03VV-F 2*0.75mm Black & Red VDE(300mm*2) | |||
| NOTE | 1.All parameters NOT specially mentioned are measured at 220VAC input,rated laod and 25°C of ambient temperature. | |||
| 2.Ripple&noise are measured at 20MHz of bandwidth by using a12''twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor. | ||||
| 3.Tolerance:includes set up tolerance,line regulation and load regulation. | ||||
| Others | Dimension |
Company Information

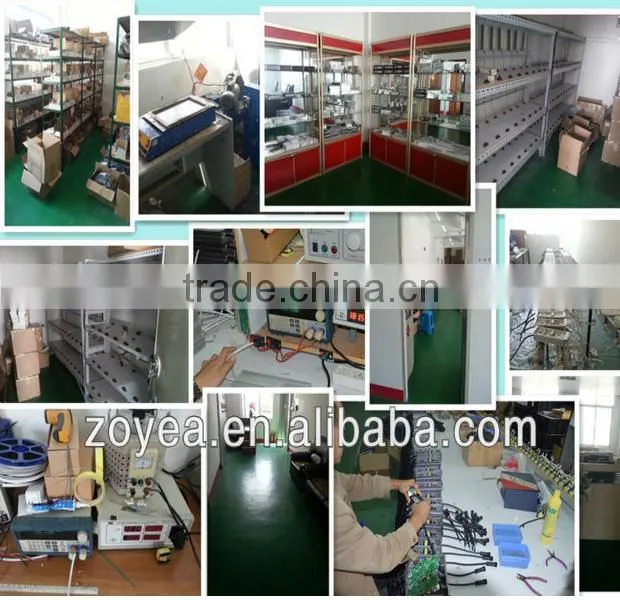

Shenzhen Zoyea LED Technology Co., Ltd. is mainly engaged in manufacturing LED waterproof power supply,LED switching power supply,Led rainproof power supply and LED strips. We have factory of about 10000 square meters and an office of about 300 square meters in the beautiful seaport city - Shenzhen City, Guangdong, China. We are looking forward to hearing from you ! Your inquiries will be promptly replied! |
||
