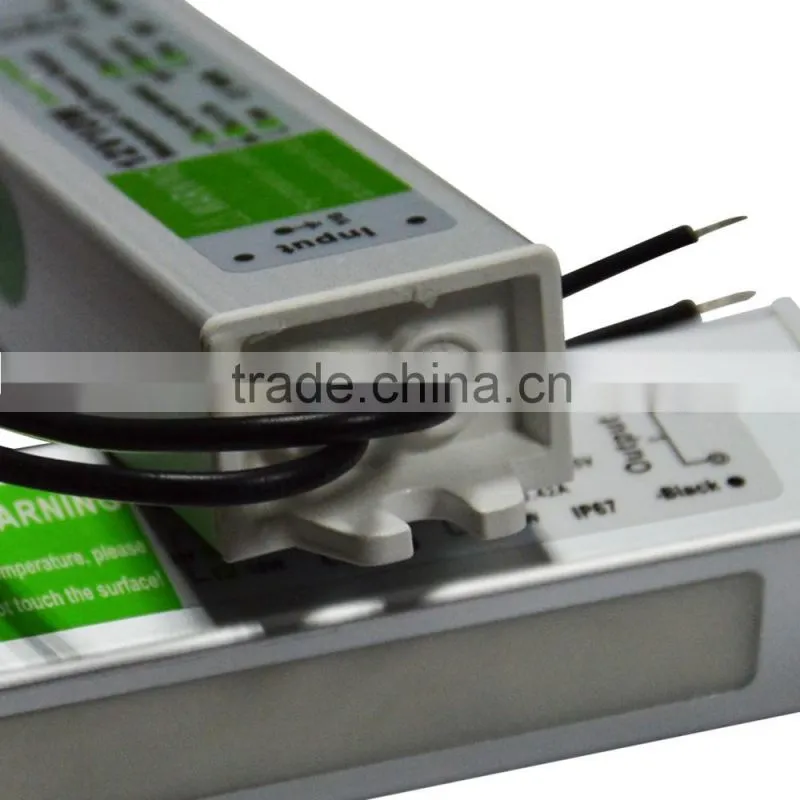

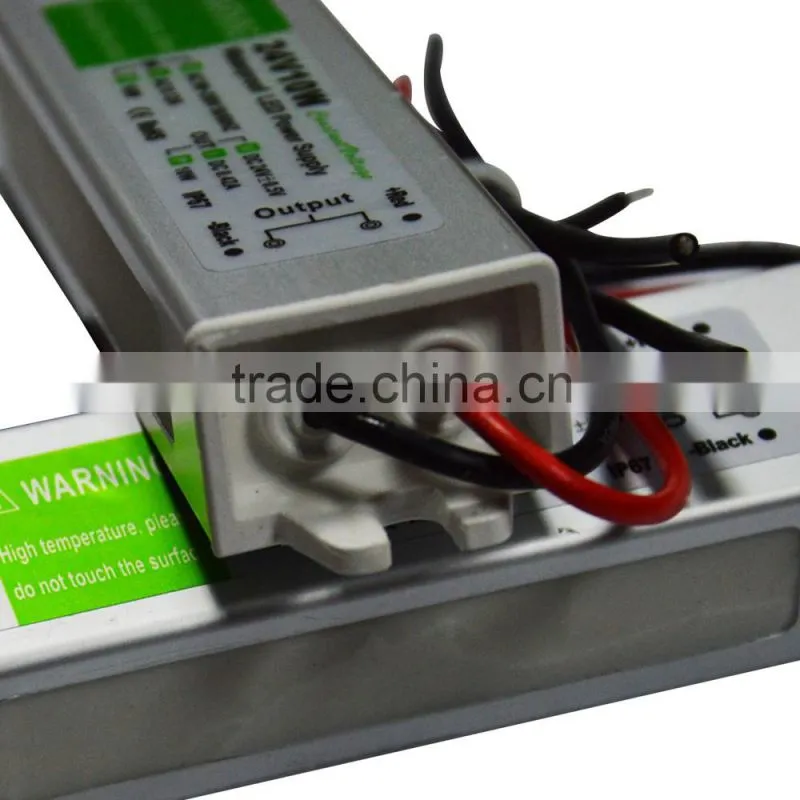

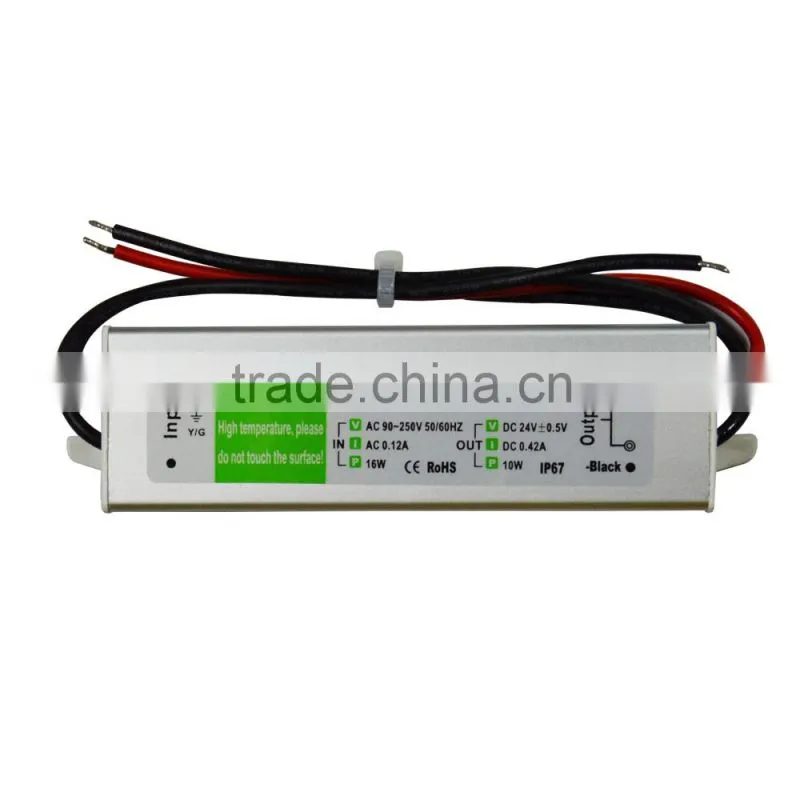

10w 24v Electrical Transformers Ip67 Constant Voltage Led Power Supply

Name: 10w 24v Electrical Transformers Ip67 Constant Voltage Led Power Supply
Brand: zoyea
SKU: 115104497

US$ 0.56 - 2.85 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

zoyea

Model Number:

FSV-10N

Shenzhen Zoyea LED Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name zoyea

Model Number FSV-10N

Output Power Other, 10w

Output Type Dual

Input Voltage Other, 90-264v

Output Voltage 24v+_0.5v

Output Frequency 47-63HZ

Output Current 0.42A

10w 24v electrical transformers ip67 constant voltage led power supply

Specification: led transformer

Product Electric Parameters
Input specification	Input voltage	AC220V /±10%
	Input frequency	50Hz
	Input surge	20A@120VAC40A@230VAC
Output specification	Output voltage can be adjusted	±10%
	Start-up time	leq1S(input230V,Io=100%)
	keep time	more than or equal to 20mS (input230V,Io=100%)
	Voltage regulation	(Full load) leq0.5%
Protection function	Overload protection	105% - 150% rated power, automatic recovery
	Over-voltage protection	105% - 150% of the rated voltage
Insulation intensity	Input---output	1500VAC/1min
	Input---ground	1500VAC/1min
	Input---ground	500VAC/1min
Safety standards	According with GB4943, UL60950-1,EN60950-1 standards.
E M C standards	According with GB9254, EN55022 class A EN61347-2-13:2008 standards
Environmental	working temperature	- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
	Storage temperature	- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
	height above sea level	leq2000M
Structure	Size(mm)	803020
Cooling method	Cooling method	Through the fan make temperature decrease
Weight	1.1KG/PCS
