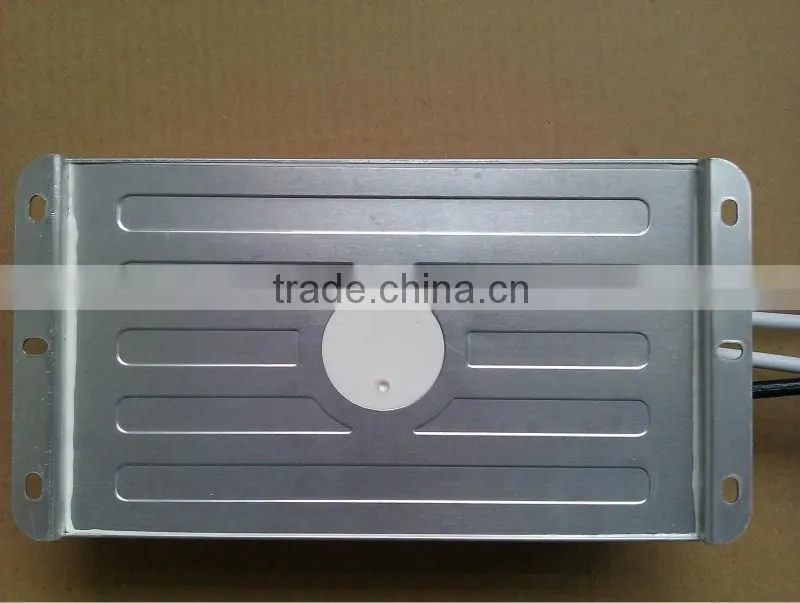

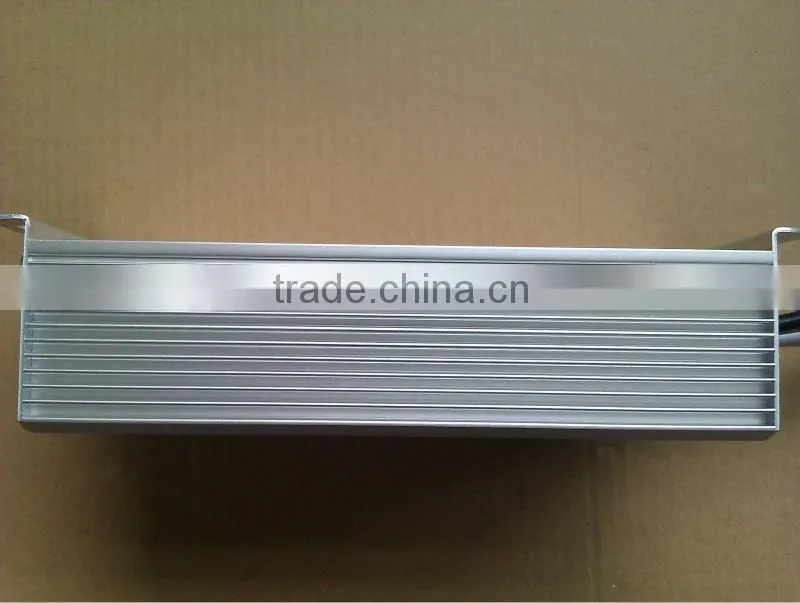

24V 200W Led Flood Light Driver With CE&ROHS

Name: 24V 200W Led Flood Light Driver With CE&ROHS
Brand: zoyea
SKU: 115098655

US$ 21 - 22.5 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

zoyea

Model Number:

FSV-240200

Shenzhen Zoyea LED Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shengzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name zoyea

Model Number FSV-240200

Output Power Other, 200w

Output Type Triple

Input Voltage Other, 90-265v

Output Voltage 24V+_0.5

Output Frequency 47~63Hz

Output Current 8.3A

Specifications

1. led flood light driver
2. IP67
3. 100% load test
4. Two years warranty
5. CE&ROHS

specifications : led flood light driver

Product Electric Parameters
Input specification	Input voltage		AC90V---264V
	Input frequency		47-63Hz
	Input surge		20A@120VAC 40A@230VAC
Output specification	Start-up time		leq1S (230V Input,Io=100%)
	keep time		more than or equal to 20mS (230V Input,Io=100%)
	Voltage regulation		(full)leq0.5%
Protection function	Overload protection		105% - 150% rated power, automatic recovery
	Over-voltage protection		105% - 150% of the rated voltage
Insulation intensity	Input---output		1500VAC/1min
	Input--ground		1500VAC/1min
	Output---ground		500VAC/1min
Safety standards	According with GB4943, UL60950-1,EN60950-1 standards.
E M C standards	According with GB9254, EN55022 class A EN61347-2-13:2008 standards
Environmental	working temperature		- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
	Storage temperature		- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
	height above sea level		leq2000M
Structure	Size (mm)		209(L)123(W)*50(H)
Cooling method	Cooling method		Natural cooling air convection
Weight	1.195KG/PCS
Product Type Table
Product model	output specification			ripple, noise	efficiency
F200-12	12V	16.6A		120mV	85%
F-200-24	24V	8.3A		240mV	85%
