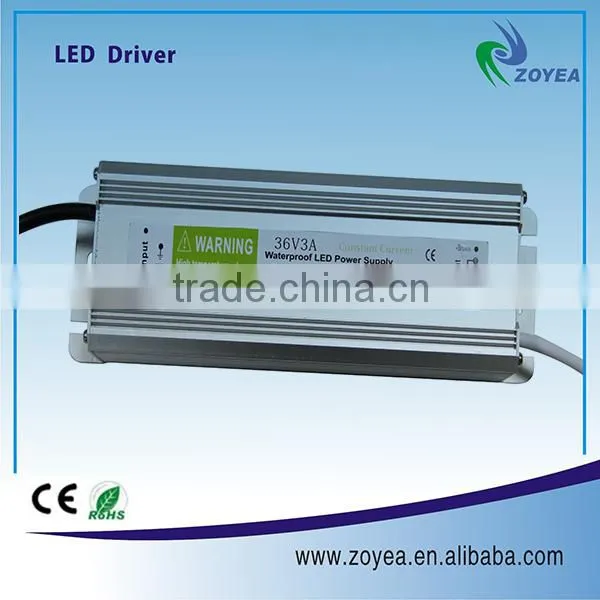

Waterproof IP67 Sales Promotion Constant Current 100w Led Driver

Name: Waterproof IP67 Sales Promotion Constant Current 100w Led Driver
Brand: zoyea
SKU: 115098669

US$ 17.9 - 20 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

zoyea

Model Number:

FSC-36100

Shenzhen Zoyea LED Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shengzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name zoyea

Model Number FSC-36100

Output Power Other, 100w

Output Type Single

Input Voltage Other, 90-264v

Output Voltage 20-36v

Output Frequency 47~60Hz

Output Current 3000mA

Specifications

1.100w led driver
2. 3000mA LED Driver
3. 100% load test
4. Two years warranty
5. CE&ROHS

100w led driver

Model		FSC-100
Output	Dc Voltage	22-36V
	Rated Current	3000mA
	Voltage Range	20-36V
	Rated Power	100W
	Ripple&Noise(Max)	150mV
	Current Tolerance	±4%
	Setup,Rise Time	100ms/220VAC
	Hold Up Time(Typ.)	80ms/220VAC
Input	Voltage Range	90~250VAC
	Frequency Range	47~60Hz
	Power Factor(Typ)	PF>0.96
	Efficiency(Typ)	89%
Protection	Short Circuit	Protection type recovers automatically after fault conditions is removed
	Overlaod	Overload protection@145~160%above peak rating
	Over Temperature	protection typer shut down o/p voltage.re-power on to recover
Environment	Working Temp	-30~ +60°C(Refer to output load derating curve)
	Working Humidity	20~90%RH no-condensing (Waterproof)
	Storage Temp Humidity	-40~ +80°C,10~90%RH
Safety&Emc	Safety Standards	CE Mark(LVD),IP67
	Withstand Voltage	I/P-O/P 1.5KVAC IP-GND 1.5KVAC
	Emc Test Standards	EN 55015 2006; EN 61547 1995+A1 2000 ;EN 61000-3-2 2006; EN61000-3-2 1995+A2 2005 EN 61347-1 2008 EN 61347-2-13 2006
Connect the line request	Input H03VV-F 3G0.75mm Brown&blue&kelly VDE(200mm) Output:H03VV-F 20.75mm Black & Red VDE(300mm*2)
NOTE	1.All parameters NOT specially mentioned are measured at 220VAC input,rated laod and 25°C of ambient temperature.
	2.Ripple&noise are measured at 20MHz of bandwidth by using a12''twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
	3.Tolerance includes set up tolerance,line regulation and load regulation.
Others	Dimension	1607040(mm)(LWH)
	Carton Quantity	20PCS/Carton
	Carton Size	430210265mm
	Weight	0.93kg/pcs
