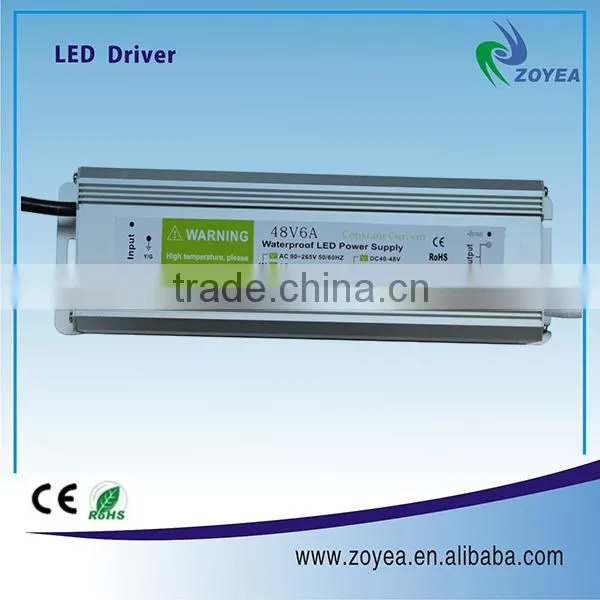

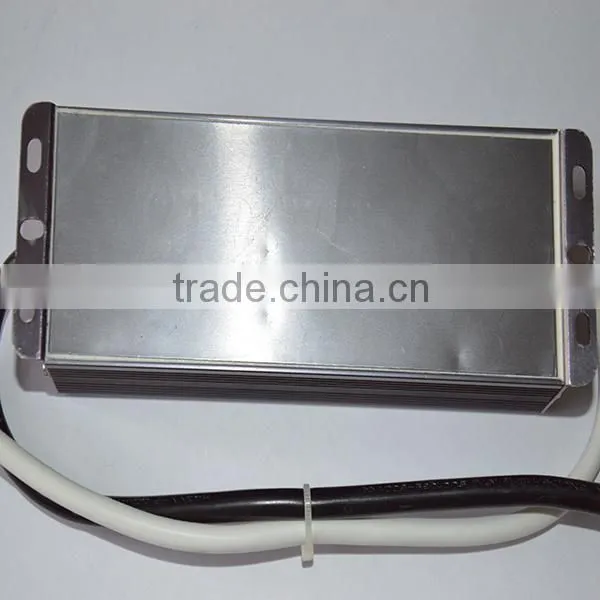

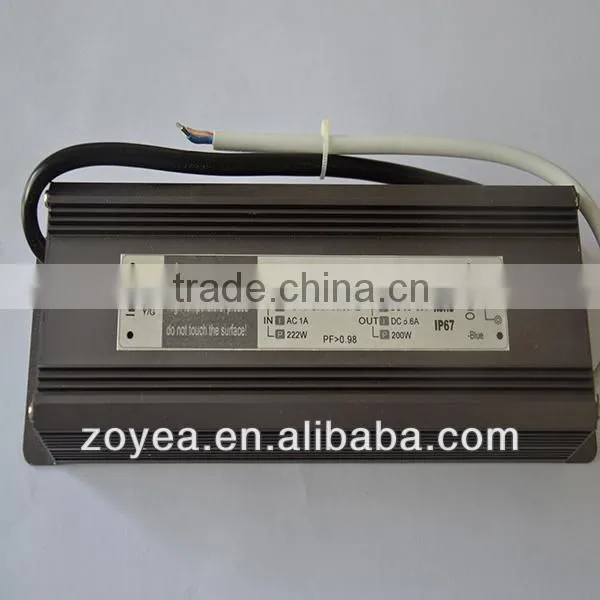

Constant Current Waterproof IP67 Sales Promotions 30V 36v Power Supply

Name: Constant Current Waterproof IP67 Sales Promotions 30V 36v Power Supply
Brand: zoyea
SKU: 115098595

US$ 38.5 - 50 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

zoyea

Model Number:

FSC-36300

Shenzhen Zoyea LED Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shengzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name zoyea

Model Number FSC-36300

Output Power Other, 300w

Output Type Single

Input Voltage Other, 90-264v

Output Voltage 36-48v

Output Frequency 47~60Hz

Output Current 5000mA

Specifications

1. 36v power supply
2. Constant Current Waterproof
3. 100% load test
4. Two years warranty
5. CE&ROHS

Features:

1. Constant current mode power supply

2. Universal AC input

3. Fully encapsulated with IP67 level

4. Withstand 300VAC surge input for 5seconds

5. 5. Protections:Short circuit/Over load/Over current

6. Cooling by free air convection

7. 100% full load burn-in test

8. High Reliability

9. Meet RoHS/CE

10. 2 year warranty

11. Waterproof, meet IP67

Specification : 36v power supply

Model		FSC-200
Output	Dc Voltage	36-48V
	Rated Current	5000mA
	Voltage Range	36-48V
	Rated Power	200W
	Ripple&Noise(Max)	150mV
	Current Tolerance	±4%
	Setup,Rise Time	100ms/220VAC
	Hold Up Time(Typ.)	80ms/220VAC
Input	Voltage Range	90~250VAC
	Frequency Range	47~60Hz
	Power Factor(Typ)	PF>0.96
	Efficiency(Typ)	89%
Protection	Short Circuit	Protection type recovers automatically after fault conditions is removed
	Overlaod	Overload protection@145~160%above peak rating
	Over Temperature	protection typer shut down o/p voltage.re-power on to recover
Environment	Working Temp	-30~ +60°C(Refer to output load derating curve)
	Working Humidity	20~90%RH no-condensing (Waterproof)
	Storage Temp Humidity	-40~ +80°C,10~90%RH
Safety&Emc	Safety Standards	CE Mark(LVD),IP67
	Withstand Voltage	I/P-O/P 1.5KVAC IP-GND 1.5KVAC
	Emc Test Standards	EN 55015 2006; EN 61547 1995+A1 2000 ;EN 61000-3-2 2006; EN61000-3-2 1995+A2 2005 EN 61347-1 2008 EN 61347-2-13 2006
Connect the line request	Input H03VV-F 3G0.75mm Brown&blue&kelly VDE(200mm) Output:H03VV-F 20.75mm Black & Red VDE(300mm*2)
NOTE	1.All parameters NOT specially mentioned are measured at 220VAC input,rated laod and 25°C of ambient temperature.
	2.Ripple&noise are measured at 20MHz of bandwidth by using a12''twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
	3.Tolerance includes set up tolerance,line regulation and load regulation.
Others	Dimension	2107040(mm)(LWH)
	Carton Quantity	20PCS/Carton
	Carton Size	430210265mm
	Weight	1.08kg/pcs
