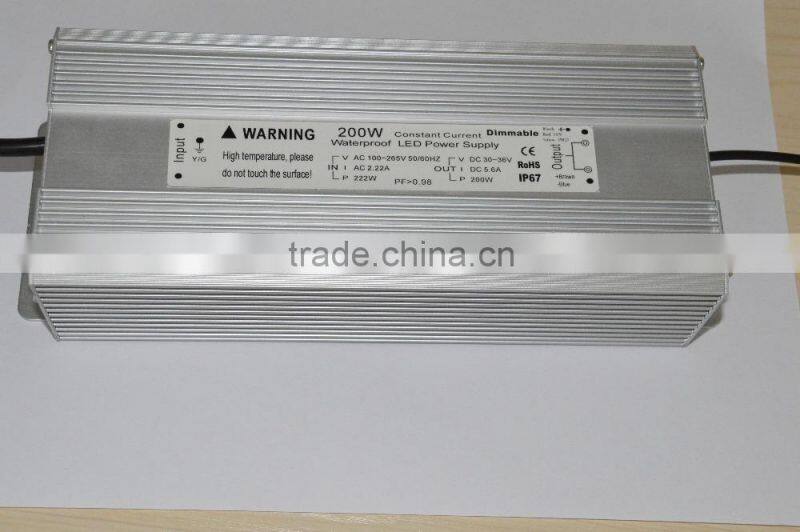

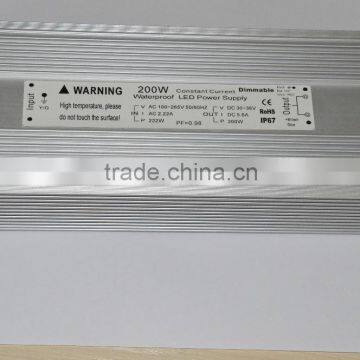

CE ROHS Approval 200W Single Output Switching Power Supply 5A Dimmable Led Driver
Specification:
Product Electric Parameters | ||||
Input specification |
Input voltage |
AC90V---265V |
||
Input frequency |
47-63Hz |
|||
Power Factor(Type) |
PF>0.98/220VAC |
|||
Output specification |
Dc Voltage |
30-48V |
||
Ripple&Noise(Max) |
150mV |
|||
Voltage Tolerance |
±4% |
|||
Rated Current |
5A ,PWM dimming 5-100% |
|||
Protection function |
Short Circuit |
Protection type: recovers automatically after fault conditions is removed |
||
Overload/Over Temperature |
Overload protection@145~160%above peak rating / protection typer:shut down o/p voltage.re-power on to recover |
|||
Environment |
Working Temp |
-30~ +60℃(Refer to output load derating curve) |
||
Working Humidity |
20~90%RH no-condensing (Waterproof) |
|||
Storage Temp Humidity |
-40~ +80℃,10~90%RH |
|||
Safety standards |
CE Mark(LVD), |
|||
Emc Test Standards |
EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005 EN 61347-1:2008 EN 61347-2-13:2006 |
|||
Structure |
Size(mm) |
210(L)*95W)*50(H) |
||
With dimmable function |
PWM Dimmable,(5%~100%);0~10v;Resistance Dimmable |
|||
Cooling method |
Cooling method |
Natural cooling air convection |
||
Weight |
1.6KG/PCS |
|||
Product Type Table | ||||
Product model |
output specification |
ripple, noise |
efficiency |
|
FSD-200 |
30-48V |
5A |
100mV |
>90% |
Certificates:
• Neutral packing,Carton box,Customization is available
• Samples checking: sending by Express (DHL / UPS / FEDEX / TNT/EMS)
• Bulk production: sending out by cargo shipping / air freight / Express
• High efficiency, low power consumption led light driver
• Energy saving, environmentally friendly
• Stable quality, 100% test before delivery
• Rigorous ripple and low noise constant current led driver
• Over-voltage, over- temperature, over-load, short-circuit & open-circuit protection
• Quick assembly and easy installation led light driver
• Offer 3 years warranty and maintain our repair rate below 0.3%
• Enough Inventory ,fast delivery.
Shenzhen Zoyea LED Technology Co., Ltd. is mainly engaged in manufacturing LED waterproof power supply,LED switching power supply,Led rainproof power supply and LED strips. We have factory of about 10000 square meters and an office of about 300 square meters in the beautiful seaport city - Shenzhen City, Guangdong, China.
Our company with maturity QA system and reliable QC ability, owning leading production equipments and processes, as well as full ranges of testing and inspection equipments.Our company operates under the management of ISO9001:2000 system, all of our products have passed the CE certificate and ROHS requirement .Products have been exported to more than thirty countries and regions, such as the USA, Europe, Southeast Asia, South America, etc.
Our Aim: Continually developing new and innovative products
Our Commitment: remaining at the forefront in product quality and service
Our Advantages: advanced manufacturing technologies, the best & competitive price
Our Slogan: the quality of Zoyea,all loved in the world.
We can provie OEM and ODM service. We trust we are a good partner with you and hope to establish long-term cooperative relationships with customers.
We are looking forward to hearing from you ! Your inquiries will be promptly replied!
