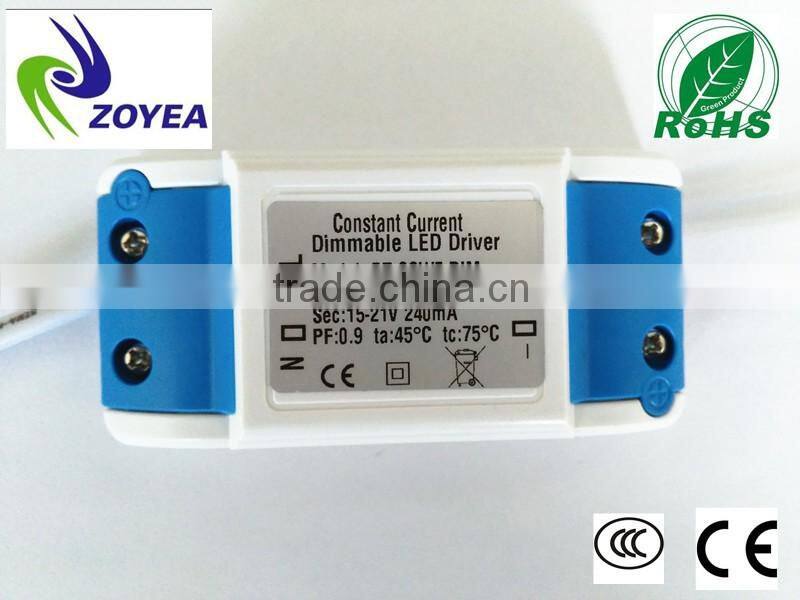

Triac dimmable led driver transformer
Feature
1.Small size,High efficiency,High reliability,Long life,IP 67 rating
2.Working temperature -25~60°C
3.Protection: Overload,short-circuit pratection,Over-temperature
4.Low standby power,min to 0.3W
5.low output ripple moises
6.2 years guarantee
| Product Electric Parameters | ||||
| Input specification | Input voltage | AC110/220v | ||
| Input frequency | 47-63Hz | |||
| Power Factor(Typ) | PF>0.9/220VAC | |||
| Output specification | Dc Voltage | 15-24V | ||
| Ripple&Noise(Max) | 100mV | |||
| Voltage Tolerance | ±4% | |||
| Rated Current | 600MA | |||
| Protection function | Short Circuit | Protection type:recovers automatically after fault conditions is removed | ||
| Overlaod/Over Temperature | Overload protection@145~160%above peak rating / protection typer:shut down o/p voltage.re-power on to recover | |||
| Environment | Working Temp | -30~ +60℃(Refer to output load derating curve) | ||
| Working Humidity | 20~90%RH no-condensing (Waterproof) | |||
| Storage Temp Humidity | -40~ +80℃,10~90%RH | |||
| Safety standards | CE Mark(LVD),IP67 | |||
| Emc Test Standards | EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005 | |||
| EN 61347-1:2008 EN 61347-2-13:2006 | ||||
| Structure | Size(mm) | 97(L)*40(W)*27(H) | ||
| Cooling method | Cooling method | Natural cooling air convection | ||
| Weight | 3KG/PCS | |||
| Product Type Table | ||||
| Product model | output specification | ripple, noise | efficiency | |
| ZY-BT-12W-CE | 15-24V | 240MA | 100mV | 80% |

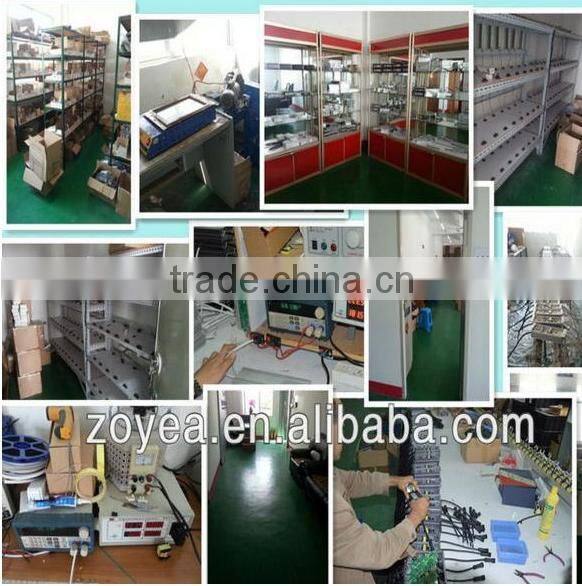

Shenzhen Zoyea LED Technology Co., Ltd. is mainly engaged in manufacturing LED waterproof power supply,LED switching power supply,Led rainproof power supply and LED strips. We have factory of about 10000 square meters and an office of about 300 square meters in the beautiful seaport city - Shenzhen City, Guangdong, China.

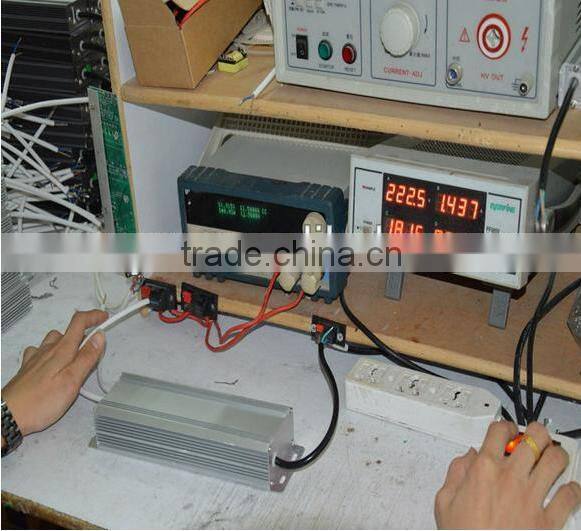

Our company with maturity QA system and reliable QC ability, owning leading production equipments and processes, as well as full ranges of testing and inspection equipments.Our company operates under the management of ISO9001:2000 system, all of our products have passed the CE certificate and ROHS requirement .Products have been exported to more than thirty countries and regions, such as the USA, Europe, Southeast Asia, South America, etc.
Our Aim: Continually developing new and innovative products.
Our Commitment: remaining at the forefront in product quality and service.
Our Advantages: advanced manufacturing technologies, the best & competitive price..
Our Slogan: the quality of Zoyea,all loved in the world.
We can provie OEM and ODM service. We trust we are a good partner with you and hope to establish long-term cooperative relationships with customers.
We are looking forward to hearing from you, your inquiries will be replied immeadiately!
