Help Center6 Lanes Multi- Lane Packing Machine
Related Products
Specifications
Multi lane packing machineThis machine can automatically complete multilane products measuring, feeding,filling
The application
Granule, powder and liquid products packed into stick bag. like food ,beverages , pharmaceutics ,cosmetics,and
detergents etc.
Features
1) The machine can automatically complete multilane products measuring, feeding,filling, bag forming,date code
printing, bag sealing and cuttting.
2)Adanced PLC control system combined with touch screen ,can easily read and set the parameters
3)Servo motor control on film pulling and horizontal sealing.
4)Motorized tension control on film unwinding for film smooth transportation.
5) D motion film pulling system cuts the maintenance cost of traditional pulling belts
6)Automatic film dividing to N lanes from one reel
7)Openable electric cabinet make maintenance and cleaning more convenient
8)Safety guard switch to meet CE protection request

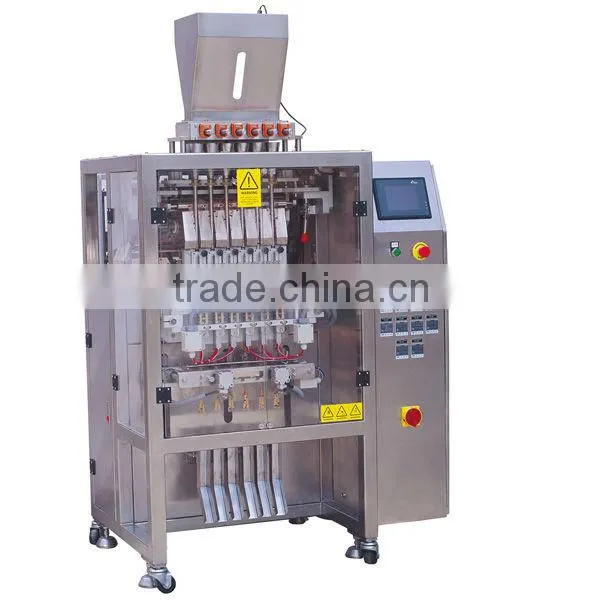

Multi lane stick bag packaging machine
| Model | VFFS-X6L | ||||
| Number of lanes | 6-lanes | ||||
| Max stick width | 68mm | ||||
| Max stick Length | 350mm | ||||
| Max reel width | 880mm | ||||
| Bag style | pillow bag ,3 -side,4-side sealing stick bag | ||||
| Capacity(bags/min) | Max.360bags/min | ||||
