Specifications
Integrated weighing and packaging systemAutomatic multihead weighing and vertical packaing combine in one unit( 2 in 1)
Almond weighing and packaging machine
Description:
The system will finish all the process automatically:,material feeding, dosing, filling, date printing ,bag forming ,sealing, cutting and finish product conveying.
It has the advantages of high accuracy weighting, high efficiency and full automation to save human cost.
Application:
Suitable to weigh and pack almost all dry and granule material, such as:
Sweets, puff snack food, potato chips, crispy rice, jelly, candy, apple chips, dumpling, small cookie, dry fruit, melon seeds, roasted seeds and nuts, medical material, deep-frozen food, etc
Key Features of VFFS:
- Programable PLC base control system
- Motorized tension control on film unwinding
- Color touch screen HMI
- Dual vacuum adsorption film pulling belts(option)
- Servo-driven pulling belt
- Servo-driven sealing jaws(option)
- Openable electric cabinet make maintenance and cleaning more convenient.
- Automation film tracking system maintains lateral position of the film at all applications.
- Variable PID temperature controls
- Quick changeover new film roll and former.
- Safety guard switch to meet CE protection request.
Benefits and Advantages for the system:
- Solid performance, excellent packing quality, great user experience
- New & strong design of the baggers make them easy to set-up, operate, and maintain.
- One of the most advance baggers on the market, the VFFS series offer great value with an excellent ROI.
- Designed for low cost of maintenance using off-the-shelf parts. Interfaces easily with auxiliary equipment.

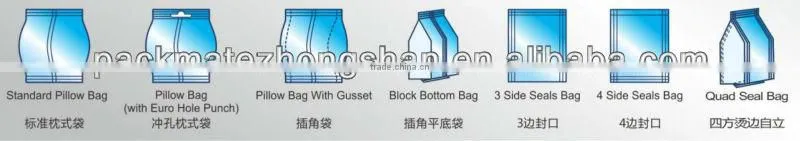

BAG STYLE AVAILABLE:
Technical Data:
Model |
PMT-10 |
PMT-14 |
Touch Screen |
9.7 inch high resolution screen |
9.7 inch high resolution screen |
Weighing Head No. |
10 heads |
14 heads |
Hopper Volume |
500 ml |
500 ml |
Weighing range |
2-500 gram |
2-500 gram |
Weighing accuracy |
0.3g ~ 1.5g |
0.3g ~ 1.5g |
Max width of film |
350mm |
350mm |
Bag width |
60~160mm |
60~160mm |
Bag length |
50~230mm |
50~230mm |
Bag pulling system |
By Servo Motor |
By Servo Motor |
Horizontal sealing system |
By air cylinder |
By Servo Motor |
Max. Speed |
60 bags/min |
100 bags/min |
Power |
4.5KW,220V 50/60Hz |
5.5KW,220V 50/60Hz |
|
|
|

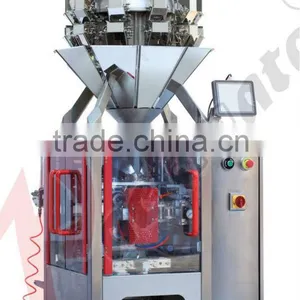

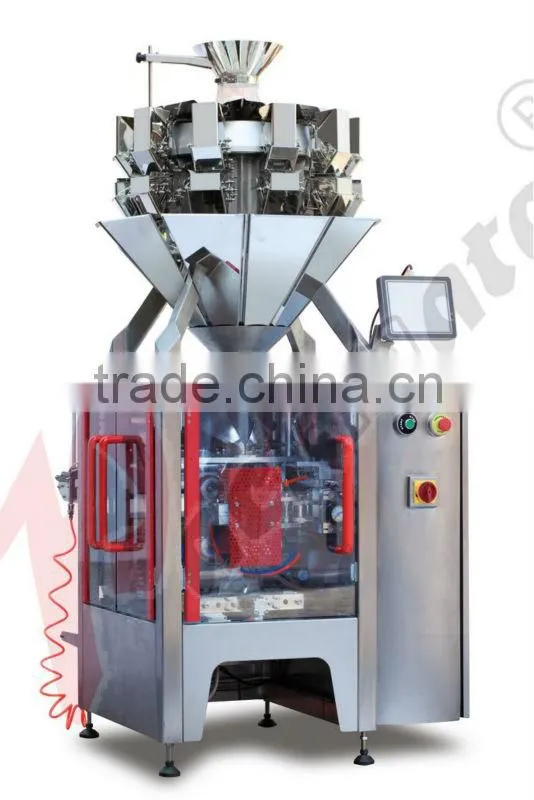

PACKMATE HIGH QUALITY PACKING MACHINE PHOTOS:
