Specifications
Packaging System1.It automatically complete the whole process from weighing, dosing, bag forming, sealing.
Application
It is widely used for weighing and packaging of granule, slice, roll or irregular shape materials, such as cereal, pasta, candy, seed, chips, coffee bean, bean, nut, puffy food, biscuit, chocolate, pet food, frozen foods, plastic part, button, small hardware etc.
Features
It automatically complete the whole process from weighing, dosing, bag forming, sealing.
Optional devices of packaging machine, weigher, elevator for different functions.
The wiegher and packaging machine are placed in the same horizontal level, so the height of the line is greatly decreased. It is applied when the factory is not so high or the product is too heavy to drop down from weigher to the packaging machine.

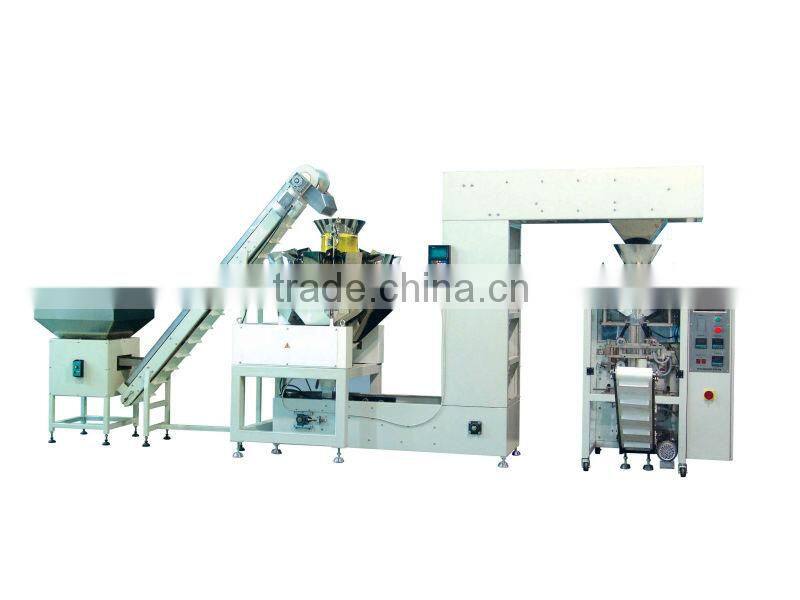

The full system includes:
Z-shape bucket elevator
10 heads multi-head weigher
Small Working platform
PM520 vertical bag packaging machine
Inclined belt conveyor
Key Features of VFFS:
Servo motor driven pull belts
PLC based, 7 inch touch screen parameter adjustment
Pneumatically operated horizontal sealing jaws
PID digital temperature control
Motorized film unwinding system
Encoder bag length control
Photo cell for bag eye-mark registration
One forming assembly for fast changeover bag size, no tools need.
Safety guard with safety switch
Air regulator, filter and lubricator
Automatic pneumatic air purge
Benefits and Advantages for Complete system:
Solid performance, excellent packing quality, great user experience
Reliable and compact, the simple design of the baggers make them easy to set-up, operate, and maintain.
One of the most affordable baggers on the market, the series offer great value with an excellent ROI.
Designed for low cost of maintenance using off-the-shelf parts. Interfaces easily with auxiliary equipment.
