stand-up doypack packaging machine for liquid products

Specifications

stand-up doypack packaging machine for liquid products

stand-up doypack packaging machine for liquid products

Description



·Highlights the product with great effect and real cost saving in comparison with the traditional premade bag packaging machine and carton packers.



·Produce stand -up doypack, standard pillow bags and flat bottom bags, 3-side and 4-side sealling possible .



·Former changes take only a few minutes .



·Automatics PLC program set-up and interactive touch screen panel.



·Dual vacuum adsorption film pulling belts controlled by servo motor, film draw with tension control.



·Zipper application optional possible.







Application:

The automatic vertical form fill seal packaging machine pack almost all granule, powder and liquid material ,such as: sweets, puff snack food, potato chips, crispy rice, jelly, candy,, dumpling, small cookie, milk powder, liquid and non-food, etc







Machines parts and system accessaries :



Material feeding funnel



Film roll unwinding system with motorize control



Date printing device



Encoder bag length control and eye-mark tracking



Bag forming, filling and sealing



Bag cutting and finish bag exit











  Key Features of VFFS:



• Servo motor driven pull belts
• PLC based, 7 inch touch screen parameter adjustment
• Pneumatically operated horizontal sealing jaws
• PID digital temperature control
• Motorized film unwinding system
• Photo cell for bag eye-mark registration
• One forming assembly for fast changeover bag size, no tools need.
• Safety guard with safety switch
• Air regulator, filter and lubricator
• Automatic pneumatic air purge



 Technical data :

Model	VFFS 700W/FZ
Capacity(bags/min)	≤40
Film Width(mm)	≤700
Power supply	AC220,50/60HZ,1-phase



Weight	30	100	150	500	1000
Width(mm)	80	120	160	190	240
Length(mm)	130	200	230	265	335
Bottom Gusset(mm)	40	60	70	90	100

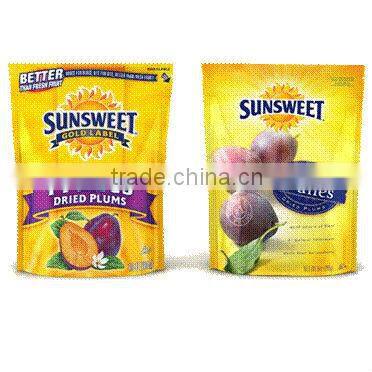

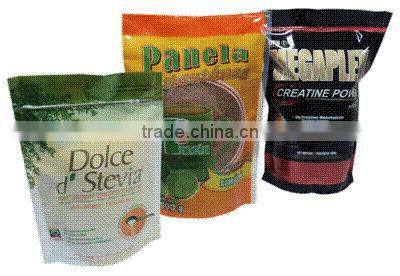

Bag style :





















PACKMATE HIGH QUALITY MACHINE PHOTOS:
