Help CenterTaller / Higher Tungsten Carbide Cold Heading Dies , Nib
Related Products
-
Cemented Carbide Cold Heading Dies From China at Best PriceUS$ 42 - 70MOQ: 5 Kilograms -
Cold Forging Die With Good Quality, Cold Heading DieUS$ 42 - 70MOQ: 5 Kilograms
-
High Precision Tungsten Carbide /cemented Carbide /hard Alloy Cold Forging Dies by Zhuzhou ManufacturerUS$ 42 - 70MOQ: 5 Kilograms
-
Hot Selling High Quality Tungsten Carbide Cold Forging Dies for Punching MouldUS$ 42 - 70MOQ: 5 Kilograms
-
Long Life and Good Performance Tungsten Carbide Cold Forging Die for Tapping ScrewUS$ 55 - 70MOQ: 5 Kilograms
Specifications
taller / higher tungsten carbide cold heading dies , nib1. Excellent after-sales service
2.Excellent toughness
taller / higher tungsten carbide cold heading dies , nib
1.excellent wear resistance
2.various types available.
4.strict tolerance and extent control
Grades and applications:
| Grade | Density | T.R.S MPa | Hardness HRA | Performance & application recommended |
| YM11 | 14.4 | 2600 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. |
| YM15 | 14 | 2800 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching,stamping,forging tools under large stress. |
| YM20 | 13.5 | 3200 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. |
| ML32 | 13.9 | 2900 | 85.5 | Impact resistance forging dies. |
| ML35 | 13.7 | 3100 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. |
| ML40 | 13.5 | 3300 | 83.5 | Dies for wear resistant or impact resistant application. |
| ML50 | 13.3 | 3500 | 83 | Nut forming dies and high impact resistance forging dies. |
| ML60 | 13.1 | 3600 | 82.5 | Stainless bolt header dies and rollers. |
Size: Complete model range,OEM & ODM can be accepted, Especially good at production of Longer cold heading die(length:10mm-110mm )!!!
Located in Liyu Industrial Area, Zhuzhou City, Tianyuan District, Hunan Province, Zhuzhou Mingri Cemented Carbide Co., Ltd was established in May of 2001 with the investment of RMB 40 million. We own up-to-date production line, advanced equipment, lots of technicians. We have passed ISO 9001:2008,ISO9001:14001 . And we have been always trying our best to provide our customers with high quality, best price and satisfactory services.
We specialize in series of tungsten carbide products, such as cold forging die cores, brazed tips, disc cutters, plates and boards, saw tips, round rods, rock drilling bits and buttons, milling tools, geological exploration drill tools and so on. Our products are exported to UK, European, Japan, Taiwan and South-east Asia etc.
Production Process:

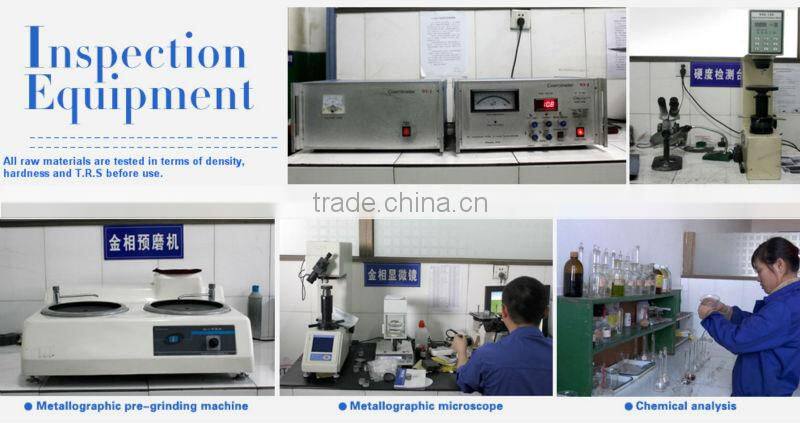

Quality Control:
Certificates:
Teresa
Skype:teresa110625
M/B:86-15897337625
Send Inquiry to This Supplier
