China Made Sand Screen Circular Vibrating Screen Used in Mining

China Made Sand Screen Circular Vibrating Screen Used in Mining photo-1
US$ 6,999 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Other, ore,sand,mining, industrial screen,etc
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao Port Shanghai Port Tianjin Port etc.
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Circular
Application Other, ore,sand,mining, industrial screen,etc
Place of Origin Henan, China
Brand Name Kexing
Model Number 3YZS1548
Voltage .
Power(W) 15000
Dimension(L*W*H) 4800*1500
Weight .
Certification CE&ISO
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

China made sand screen circular vibrating screen used in mining



Introduction of sand screen

Vibrating Screen are used to separate materials into various sizes for further processing. Or for end use. Depending on your need. The material is separated by passing it through a vibrating “screen box” which has a number of different sized screens, or meshes, which the material falls through like a sieve, the material falls onto attached conveyors which stock pile the end products. The end products can then be used in the building and construction industries.



Usage and Applications of sand screen

The vibratory screen is widely used for screening in wide range including mines, building material, transportation, energy sources, chemical industry, etc. and the vibrating screen is of many layers and high efficiency. The vibratoey screen adopts the barrel type of eccentric shaft vibration exciter and eccentric block to adjust the swing.The screen is of the flowing characteristics, the screening line is long and specification of materials screened is various, and it is also of realiable structure ,strong exciting force, etc.



Features of sand screen

1. Vibration Smoothly
2. Long Service Life
3. Vibration Force is Easy to Change
4. Little Noise
5. Low Consumption
6. Easy to install and maintain



Technical dates of sand screen

Model

Screen Size

(mm)

Layer

Number

Screen Mesh

(mm)

Max. Feeding Size

(mm)

Capacity

(t/h)

Motor Power

(kw)

Vibrating Frequency

(r/min)

2YZS1548

4800*1500

2

3-100

400

30-275

15

870

3YZS1548

4800*1500

3

3-100

400

30-275

15

870

2YZS1848

4800*1800

2

3-100

400

56-330

18.5

870

3YZS1848

4800*1800

3

3-100

400

56-330

18.5

870

2YZS1860

6000*1800

2

3-100

400

65-586

22

870

3YZS1860

6000*1800

3

3-100

400

65-586

22-30

870

2YZS2160

6000*2100

2

3-100

400

81-720

37

730

3YZS2160

6000*2100

3

3-100

400

81-720

30-37

730

2YZS2460

6000*2400

2

3-150

400

100-810

37

770

China made sand screen circular vibrating screen used in mining

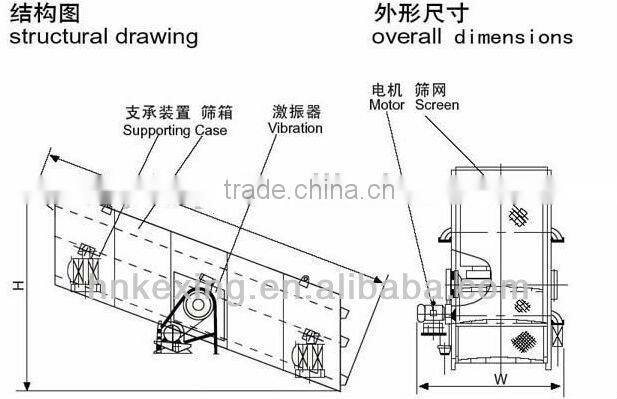

Vibrating screen consists of screen box, supporting device, vibration exciter, transmission part,
etc. The barrel-type vibration exciter is installed in the middle part of the machine. During normal
operation, the vibration of exciter will drive the screen mesh fixed on the screen box vibrate, and
then materials will be screened. The big and small materials fall from the upper side and lower side
of the screen to get them seperated.

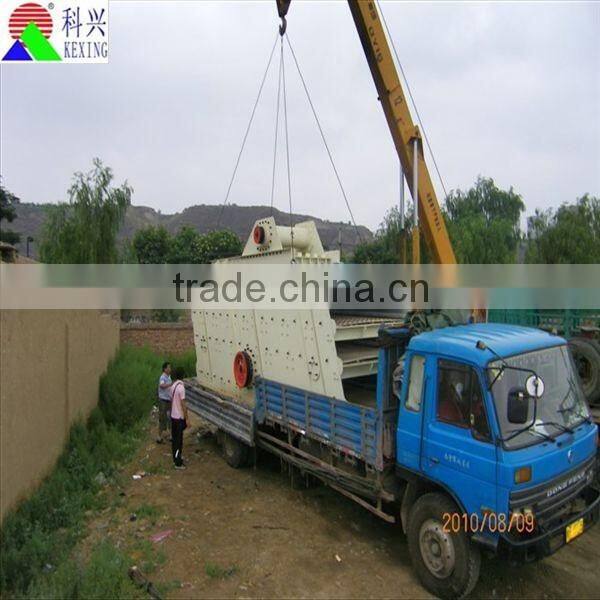

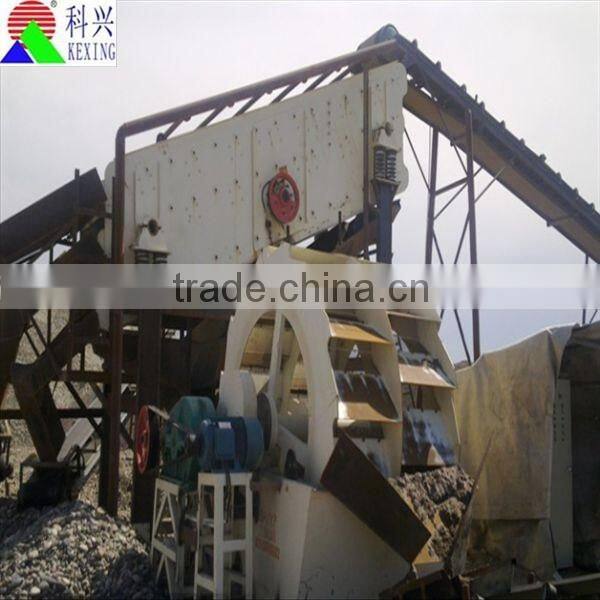

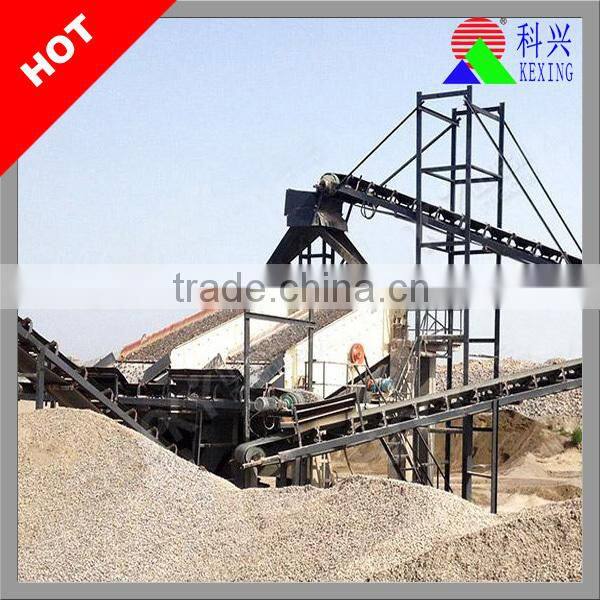

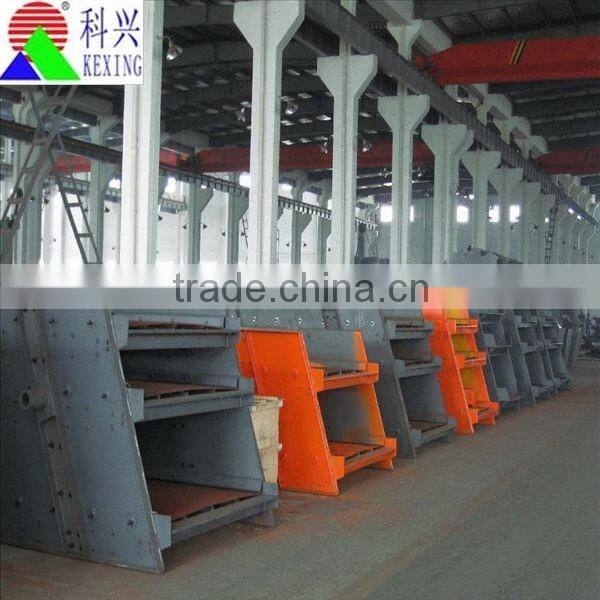

More vibrating screen photos

China made sand screen circular vibrating screen used in miningChina made sand screen circular vibrating screen used in miningChina made sand screen circular vibrating screen used in mining

China made sand screen circular vibrating screen used in mining



Services:

Pre-sale:

  (1) According to customer's special requirements, design and manufacture of products.
   (2) the company free of charge to the user on-site engineering and technical personnel planning site for the user to design the  best processes and programs.

Sale:

  (1) product acceptance.
  (2) to help customers develop construction programs.

After-sale:

  (1) free to assign a dedicated service personnel, arrived at the scene and guide customers installation.
  (2) equipment installation.
  (3) complete sets of equipment installed,



Foreign cooperation customers:

China made sand screen circular vibrating screen used in mining



Why Choose Us?
1. The machine in Kexing is actually good quality with preferential price.
* Good quality certificated with CE and ISO9001 quality management system.
* Careful producing process and standard technical in our factory.
* High output and large efficiency for the processing of produce.

2. The professional and customer-oriented services.
* Factory is located in Zhengzhou and several working places in many countries.
* Our professional can help you address import issues, commodity visiting, certifcates and many details for the goods.
