Home > Products > Vibrating Screen > Top capacity small mining vibrating screen screening machine for sale
Top capacity small mining vibrating screen screening machine for sale
- 100 Set / Sets per Month
- QingDao Port Shanghai Port Tianjin Port etc.
- T/T Credit Card
Product Details
Condition: | New | Type: | Circular | Application: | Other, ore,sand,mining, industrial screen,etc |
Place of Origin: | Henan, China | Brand Name: | Kexing | Model Number: | 3YZS1548 |
Voltage: | . | Power(W): | 15000 | Dimension(L*W*H): | 4800*1500 |
Weight: | . | Certification: | CE&ISO | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Top capacity small mining vibrating screen screening machine for sale
Introduction of small mining vibrating screen
Vibrating Screen are used to separate materials into various sizes for further processing. Or for end use. Depending on your need. The material is separated by passing it through a vibrating “screen box” which has a number of different sized screens, or meshes, which the material falls through like a sieve, the material falls onto attached conveyors which stock pile the end products. The end products can then be used in the building and construction industries.
Applications of small mining vibrating screen
The vibratory screen is widely used for screening in wide range including mines, building material, transportation, energy sources, chemical industry, etc. and the vibrating screen is of many layers and high efficiency. The vibratoey screen adopts the barrel type of eccentric shaft vibration exciter and eccentric block to adjust the swing.The screen is of the flowing characteristics, the screening line is long and specification of materials screened is various, and it is also of realiable structure ,strong exciting force, etc.
Features of small mining vibrating screen
1.Vibration Smoothly
2.Long Service Life
3.Vibration Force is Easy to Change
4.Little Noise
5.Low Consumption
6.Easy to install and maintain
Technical dates of small mining vibrating screen
Model | Screen Size(mm) | Layer Number | Screen Mesh(mm) | Max. Feeding Size(mm) | Capacity(t/h) | Motor Power(kw) | Vibrating Frequency(r/min) |
2YZS1548 | 4800*1500 | 2 | 3-100 | 400 | 30-275 | 15 | 870 |
3YZS1548 | 4800*1500 | 3 | 3-100 | 400 | 30-275 | 15 | 870 |
2YZS1848 | 4800*1800 | 2 | 3-100 | 400 | 56-330 | 18.5 | 870 |
3YZS1848 | 4800*1800 | 3 | 3-100 | 400 | 56-330 | 18.5 | 870 |
2YZS1860 | 6000*1800 | 2 | 3-100 | 400 | 65-586 | 22 | 870 |
3YZS1860 | 6000*1800 | 3 | 3-100 | 400 | 65-586 | 22-30 | 870 |
2YZS2160 | 6000*2100 | 2 | 3-100 | 400 | 81-720 | 37 | 730 |
3YZS2160 | 6000*2100 | 3 | 3-100 | 400 | 81-720 | 30-37 | 730 |
2YZS2460 | 6000*2400 | 2 | 3-150 | 400 | 100-810 | 37 | 770 |
The vibrating screen consists of screen box, supporting device, vibration exciter, transmission part,
etc. The barrel-type vibration exciter is installed in the middle part of the machine. During normal
operation, the vibration of exciter will drive the screen mesh fixed on the screen box vibrate, and
then materials will be screened. The big and small materials fall from the upper side and lower side
of the screen to get them seperated.

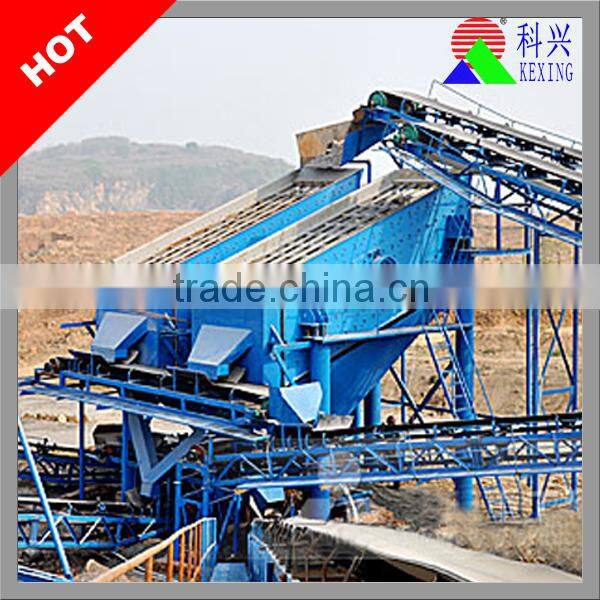

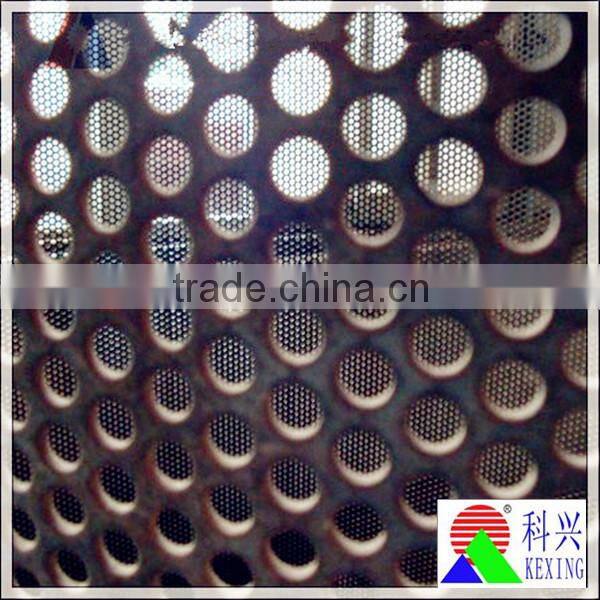

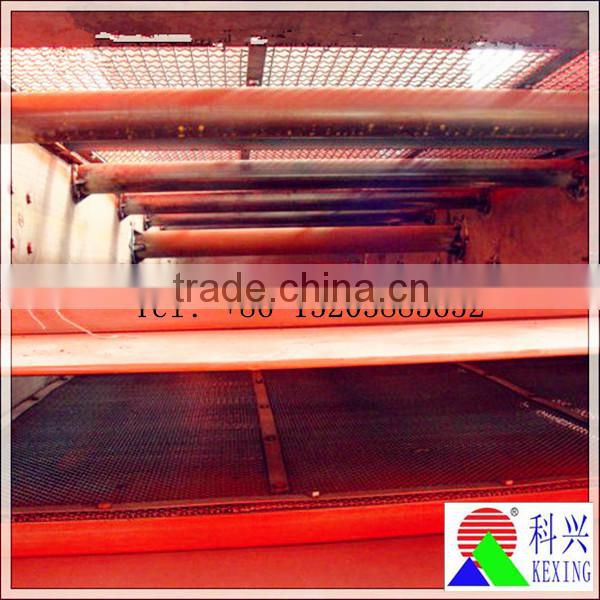

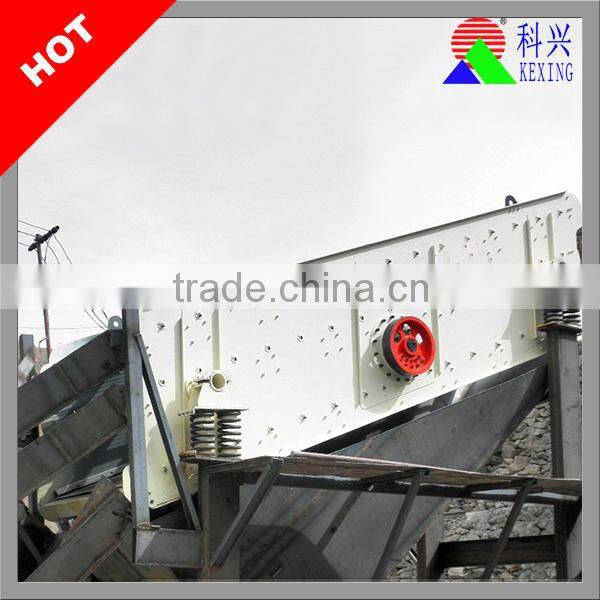

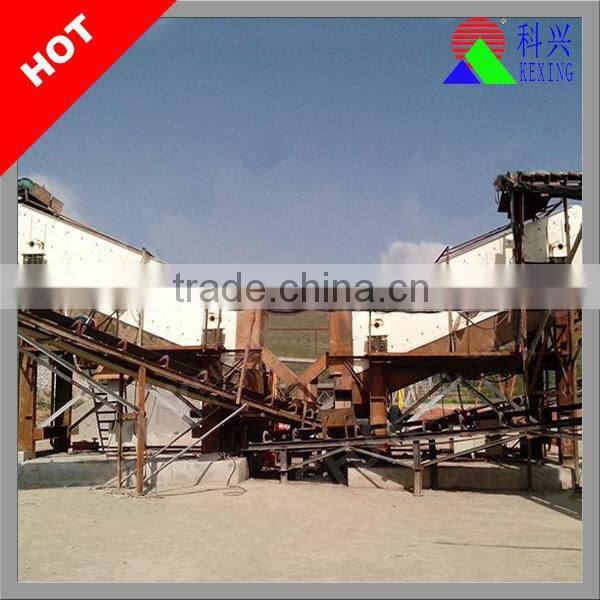

Picture of small mining vibrating screen
Our customers and engineer:
Services:
Pre-sale:
(1) According to customer's special requirements, design and manufacture of products.
(2) The company free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and programs.
Sale:
(1) Product acceptance.
(2) To help customers develop construction programs.
After-sale:
(1) Free to assign a dedicated service personnel, arrived at the scene and guide customers installation.
(2) Equipment installation.
(3) Complete sets of equipment installed,
Why Choose Us?
1. The machine in Kexing is actually good quality with preferential price.
* Good quality certificated with CE and ISO9001 quality management system.
* Careful producing process and standard technical in our factory.
* High output and large efficiency for the processing of produce.
2. The professional and customer-oriented services.
* Factory is located in Zhengzhou and several working places in many countries.
* Our professional can help you address import issues, commodity visiting, certifcates and many details for the goods.
