Vibrating Sieve for Sand and Stone Ores for Sale
YZS circular vibrating screen is a new screening equipment for the circular vibration, which is specifically designed for screening material stone in the quarry, and also used for classification in the departments of coal selecting, mineral processing, building materials, electricity and chemical products. The output of Our vibrating screen conforms to the national standard and reachs the highest level at home and abroad. Also it wins good praise from customers. The Vibrating Screen (Vibratory Screen) is of many layers and high efficiency. The vibratory screen adopts the barrel type of eccentric shaft vibration exciter and eccentric block to adjust the swing. Advanced rivet assembly-frame structure improves service life of equipment and the spring damping device reduces the impact on the basis. This screen has the features of advance structure, strong vibration, low noisy, easy maintenance and firm & durable, etc. The screen is of long screening line, various screen specification, clear fliter in each specifications, high screening efficiency, not easy blocked. And it is also of reliable structure, strong exciting force, low vibrating noise, long durability, convenient maintenance, and safe operation, etc. The vibrating screen is ideal euiqpment for crushing and screening equipment, which widely used for screening in mines, building material, transportation, energy sources and chemical industries, etc.When a small aperture sieve is installed, water spray must be added to screen wet and adhesive materials.
Vibrating Sieve for Sand and Stone Ores for Sale
Working principle
The eccentric vibrator high-speedly rotates by the motor through V-belts,the rotating eccentric block produces large centrifugal force to bring sieve boxes circle moving with certain amplitude. Under the impluse of the sieve box, the materials on the leaning screens produce a continuous throwing motion; In the contacting process of the materials and screen surface, particles smaller than sieve pass through the screen and classification is realized.
Vibrating Sieve for Sand and Stone Ores for Sale
vibration shaker
1. new structure ,advance technical data, high processing capacity and high screening efficiency
2.Circular Vibrating Screen adopts tube-type eccentric shaft vibration exciter and partial block of conditioning amplitude; easy operation and maintenance.
3. Circular Vibrating Screen with spring steel woven mesh or perforated metal sieve, long life, not easily plug holes.
4.Circular Vibrating Screen with rubber isolation springs, long life, low noise, and pass through resonance region easily.
Vibrating Sieve for Sand and Stone Ores for Sale
Technical parameter
Model | Screen size (mm) | Layer number | screen mesh (mm) | Max.feeding size (mm) | Capacity (t/h) | Motor power(KW) | vibrating frequency (r/min) | double amplitude(mm) |
2YZS1548 | 4800×1500 | 2 | 3-100 | 400 | 30-275 | 15 | 870 | 5-9 |
3YZS1548 | 4800×1500 | 3 | 3-100 | 400 | 30-275 | 15 | 870 | 5-9 |
2YZS1848 | 4800×1800 | 2 | 3-100 | 400 | 56-330 | 18.5 | 870 | 5-9 |
3YZS1848 | 4800×1800 | 3 | 3-100 | 400 | 56-330 | 18.5 | 870 | 5-9 |
2YZS1860 | 6000×1800 | 2 | 3-100 | 400 | 65-586 | 22 | 870 | 5-9 |
3YZS1860 | 6000×1800 | 3 | 3-100 | 400 | 65-586 | 22-30 | 870 | 5-9 |
2YZS2160 | 6000×2100 | 2 | 3-100 | 400 | 81-720 | 37 | 730 | 5-9 |
Vibrating Sieve for Sand and Stone Ores for Sale
Packaging and Shipping
Our products are usually packed by plywood case,wooden case,nylon coth, etc. And we will change packing ways by the real situation.
The goods will be delivred from Qingdao port and we will take buyers requirements into consider,too.
Vibrating Sieve for Sand and Stone Ores for Sale
Our serivices
Pre-sale:
(1) According to customer's special requirements, design and manufacture of products.
(2) the company free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and programs.
Sale:
(1) product acceptance.
(2) to help customers develop construction programs.
After-sale:
(1) free to assign a dedicated service personnel, arrived at the scene and guide customers installation.
(2) equipment installation.
(3)complete sets of equipment installed.
Vibrating Sieve for Sand and Stone Ores for Sale

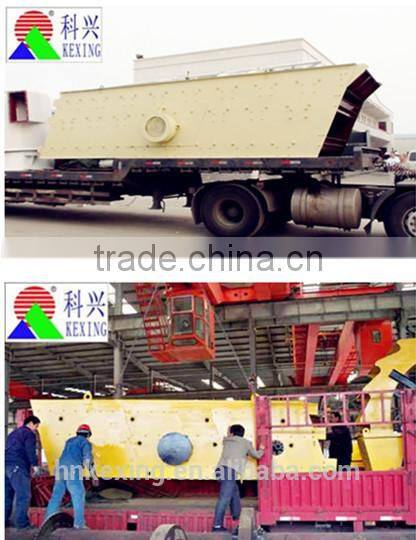

Deliveing photo
Vibrating Sieve for Sand and Stone Ores for Sale
Cooperation with foreign customers
Vibrating Sieve for Sand and Stone Ores for Sale
Our main certification
