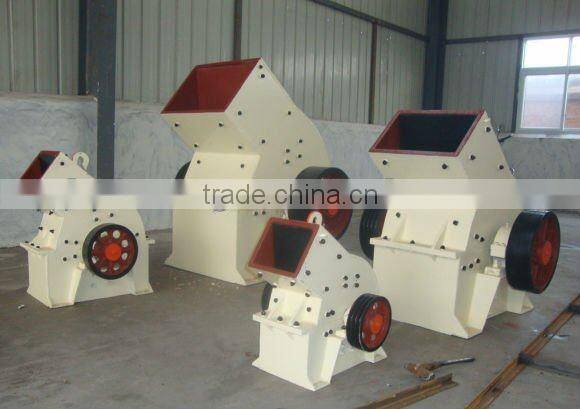

POP mini hammer mill

Specifications

POP mini hammer mill
1. simple structure
2. high efficiency
3. high reduction ration
4. reliable reputation

POP mini hammer mill

1) Application of hammer crusher/ hammer mill :
The hammer crusher(hammer mill) crushes by the collisions between high-speed hammer and materiasl,and the hammer crusher(hammer mill) features are in its simple structure, high reduction ration, high efficiency, etc. The PC hammer crusher(hammer mill) were developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum & chemical industries.

POP mini hammer mill

2) Operating principle of Hammer Crusher / hammer mill :
The motor drives the rotor rotate of the hammer crusher at a high speed through the belt, and on the rotor there are series hammers. When the materials get into the working area of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being recrushed until they reached the required size.



POP mini hammer mill

3)Technical Data of Hammer Crusher / hammer mill :

Model	Rotor speed (r/min)	Feed opening size (mm)	Max feeding size (mm)	Discharghing size (mm)	Capacity (t/h)	Motor power (kw)	Weight (t)	Overall dimensions L×W×H (mm)
PC400×300	1500	145×295	100	0-30	5-8	7.5	0.9	844×942×878
PC600×400	1000	295×450	100	0-35	10-12	18.5	1.5	1000×1100×1300
PC600×600	1000	295×570	100	0-35	12-18	45	2.14	1315×840×1501
PC800×600	1000	350×570	120	0-45	20-25	55	2.45	1515×2586×1040
PC800×800	1000	350×850	120	0-45	35-45	55	3.05	1515×2831×1040
PC1000×800	1000	580×580	200	0-45	25-40	110	6.5	3206×2210×1515
PC1000×1000	1000	580×1060	200	0-45	40-80	132	7.59	3514×2230×1515
PC 1250×800	750	650×850	200	0-45	20-50	132	11.7	2630×1780×2050
PC1250×1250	750	650×1330	200	0-45	90-110	185	13.2	2630×2180×2050
PC1400×1400	750	1050×1540	250	0-45	120-170	280	17.2	2790×2800×2310
PC1600×1600	600	1500×1785	350	0-60	220-280	450	22.8	3350×3120×2660
